RED BRICK CHARGER

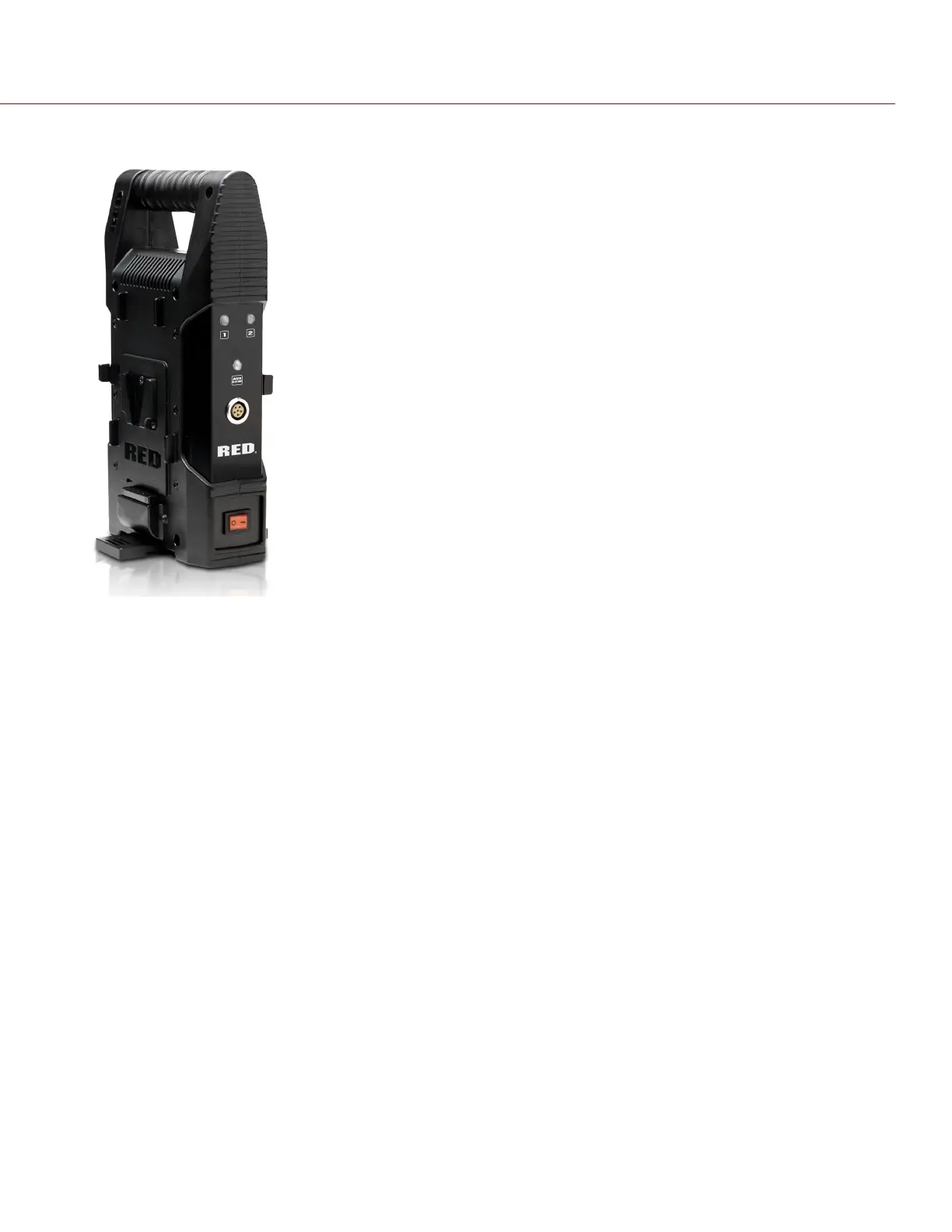

Figure: RED BRICKCharger
The RED BRICK Charger offers rechargeable support for RED BRICK (153 Wh) and REDVOLT-V (43 Wh) lithium-ion
batteries. The RED BRICK Charger provides up to 4.75 A in constant current mode. The RED BRICK Charger charges
two (2) attached RED BRICK batteries sequentially in approximately six (6) to eight (8) hours. The RED BRICKCharger
charges (2) attached REDVOLT-V batteries sequentially in approximately two (2) to four (4) hours. The RED BRICK
Charger can charge one (1) fully discharged RED BRICK in approximately three (3) hours and one (1) fully discharged
REDVOLT-V in approximately two (2) hours.
The RED BRICK Charger also serves as a power supply using the 6-pin LEMO
®
auxiliary output port.
WARNING: DO NOT exceed 100 W power draw from the 6-pin LEMO auxiliary output port.
NOTE: The RED BRICK Charger stops charging automatically if battery temperature exceeds 40˚C (104˚F), or drops
below 0°C (32°F).
PREPARE THE RED BRICK CHARGER
When the RED BRICK Charger is brand new, it may be difficult to connect and disconnect the V-plate adaptor on the
RED BRICK or REDVOLT-V. RED recommends that you perform a break-in sequence with a new RED BRICK Charger.
Before charging a RED BRICK or REDVOLT-V in the charger, fully engage and then disengage the RED BRICK or
REDVOLT-V approximately 20 times.
