EPIC/SCARLET POWER MODULE OPERATIONS
This section describes the attachment and removal of EPIC/SCARLET modules. These instructions are applicable to
all EPIC/SCARLET modules, except adaptor modules. The Pro Battery Module (Quad) is shown.
WARNING: DSMC modules attach to an adaptor module. DSMC modules DO NOT attach directly to the BRAIN.
WARNING: Before installing or removing modules, you MUST turn off the camera.
NOTE: The REDVOLT XL Module is an exception to the adaptor module requirement. For more information, go to
"Install the REDVOLT XL Module" on page40.
ATTACH A DSMC POWER MODULE
REQUIRED TOOL(S): T20 TORX driver
1. Turn off the camera.

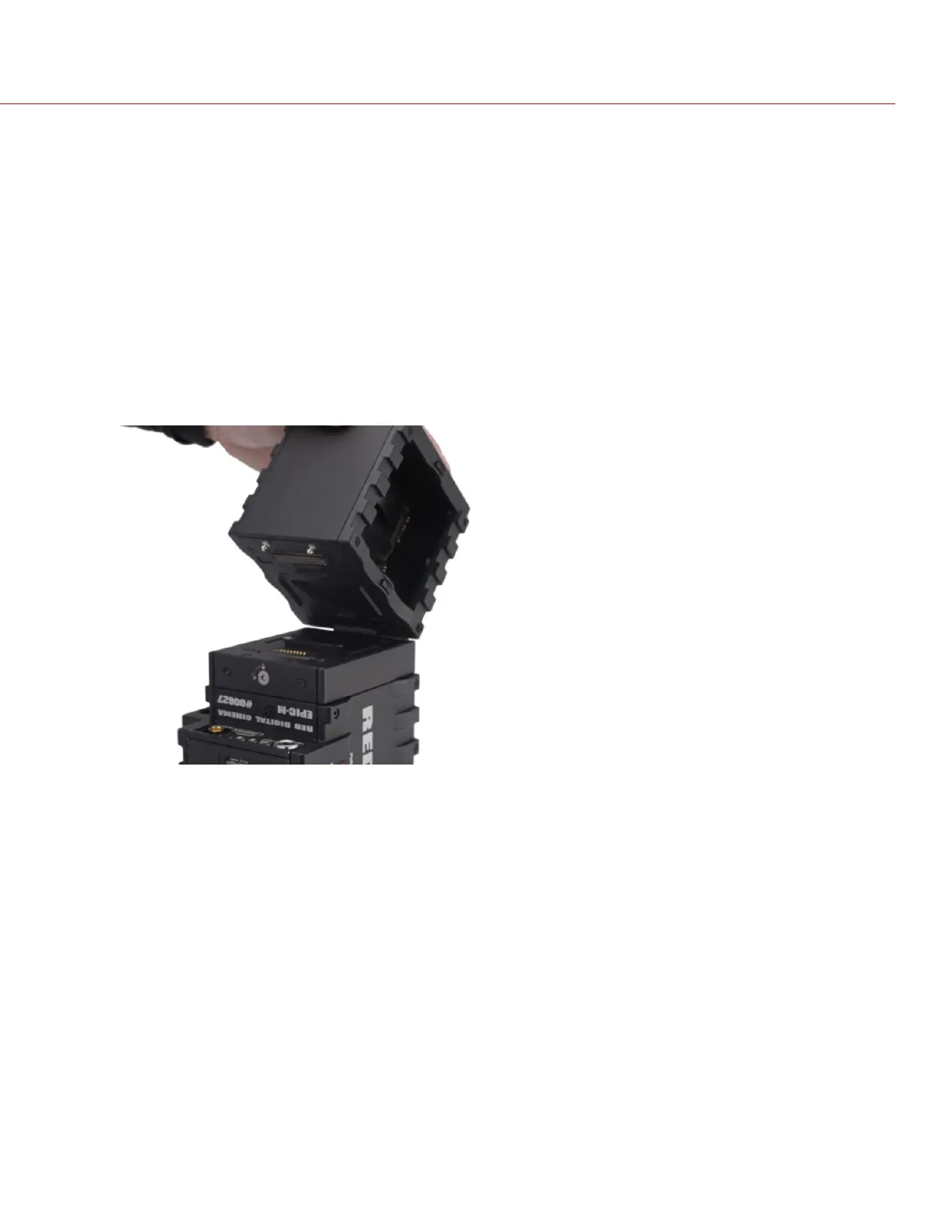

2. Insert the lip at the top of the module into the recess at the top of the adaptor module.
Figure: Insert Module Lip
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 31
RED DSMC POWER OPERATION GUIDE
