RED DSMC SIDE HANDLE - REDVOLT AND REDVOLT XL

REDVOLT AND REDVOLT XL

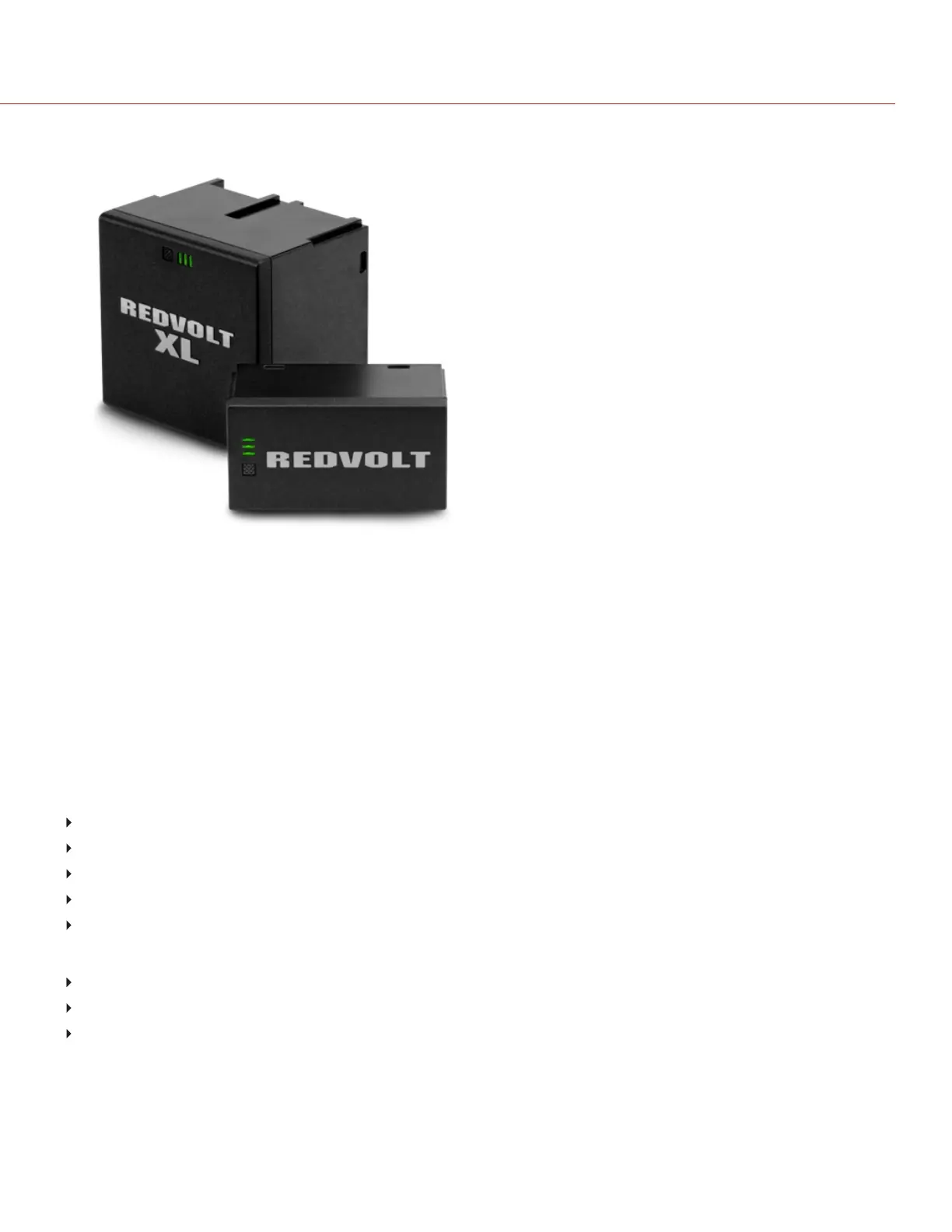

Figure: REDVOLT XL (Left) and REDVOLT (Right)
REDVOLT and REDVOLT XL batteries are lightweight and rechargeable batteries designed to power the camera.
REDVOLT batteries can be mounted to DSMC
®
power modules for extended mobile power, or inserted into the
DSMC Side Handle for short term power.
NOTE: REDVOLT and REDVOLT XL batteries require a REDVOLT Travel Charger (REDVOLT only), REDVOLT Charger
(Quad), or REDVOLT XL Module (REDVOLT XL only) to recharge.
NOTE: A DSMC2
®
REDVOLT XL Module is required to use a REDVOLT XL battery with WEAPON
®
, SCARLET-W,
RED RAVEN
®
, and RED EPIC-W
®
cameras.
NOTE: A DSMC2 REDVOLT Expander is required to use a REDVOLT battery with WEAPON, SCARLET-W, RAVEN,
and EPIC-W cameras.
REDVOLT batteries are compatible with following DSMC power modules:
"DSMC Side Handle" on page25
"Pro Battery Module (Dual)" on page33
"Pro Battery Module (Quad)" on page34
"REDVOLT XL Module" on page36 (REDVOLTXLonly)
"DSMC2 REDVOLT XL Module" on page48
REDVOLT batteries should only be charged using the following approved RED chargers:
"REDVOLT Travel Charger" on page67
"REDVOLT Charger (Quad)" on page68
"RED BRICK Charger" on page70
