REDVOLT PERFORMANCE
The following table provides information on REDVOLT battery run and charging times.
BATTERY NOMINAL ENERGY RUN TIME
1
CHARGE TIME (80%) CHARGE TIME (FULL)
REDVOLT 37 Wh 30 minutes 60 minutes 90 minutes
REDVOLT XL 89 Wh 90 minutes 80 minutes 120 minutes
1. Approximate battery run times based on recording in 4K FF resolution at 24 FPS.

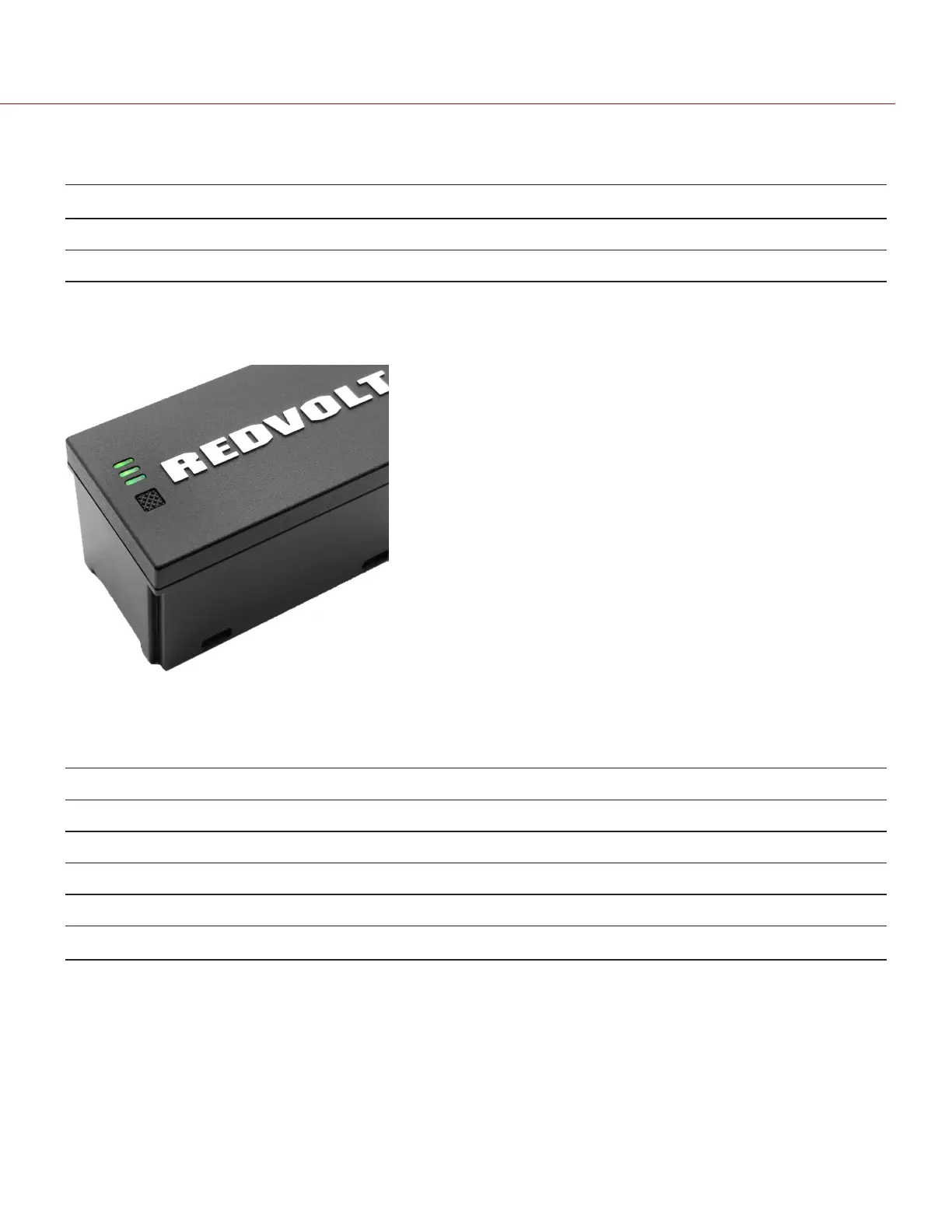

REDVOLT LED ARRAY
Figure: REDVOLT LED Array
The REDVOLT and REDVOLT XL battery LED arrays consist of three (3) LEDs and a status button. Press the status
button to illuminate the LEDs, displaying the remaining battery charge level in 33.3% steps.
LEDPATTERN DESCRIPTION
Three (3) LEDs are on 71% to 100% capacity remaining
Two (2) LEDs are on 41% to 70% capacity remaining
One (1) LED is on 11% to 40% capacity remaining
One (1) LED flashes for three (3) seconds 0% to 10% capacity remaining
The two (2) outside LEDs flash for three (3) seconds Battery error
1
1. If you receive this battery error, submit a Technical Support request at https://support.red.com.
