EPIC/SCARLET POWER OPERATIONS

This section describes the basic power operations for EPIC and SCARLET.

EPIC/SCARLET POWER INPUTS

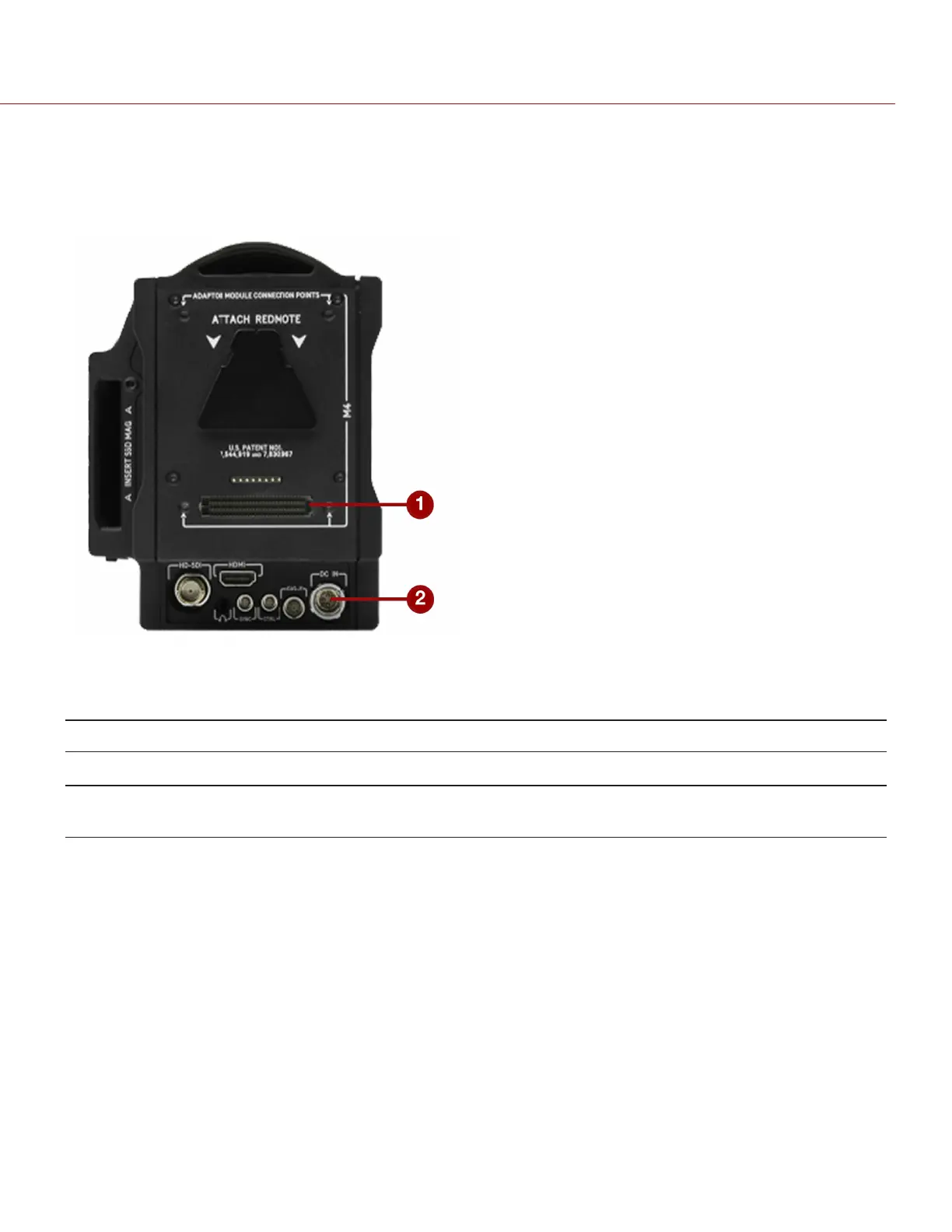

Figure: SEARAY Connector (Top) and DC IN Connector (Bottom)

There are two (2) primary power inputs that provide power to the EPIC/SCARLET:

# POWER INPUT DESCRIPTION

1 SEARAY™ power connector Provides power to the BRAIN

from attached EPIC/SCARLET modules

2 DC IN connector Provides power to the BRAIN using a DSMC AC Power Adaptor or certain battery

modules, such as the Backpack Quickplate (Short)

NOTE: Additionally, one (1) REDVOLT

battery may be used in conjunction with the DSMC Side Handle to provide

short term power and support hot-swapping of other power sources.
