PRO BATTERY MODULE (DUAL)

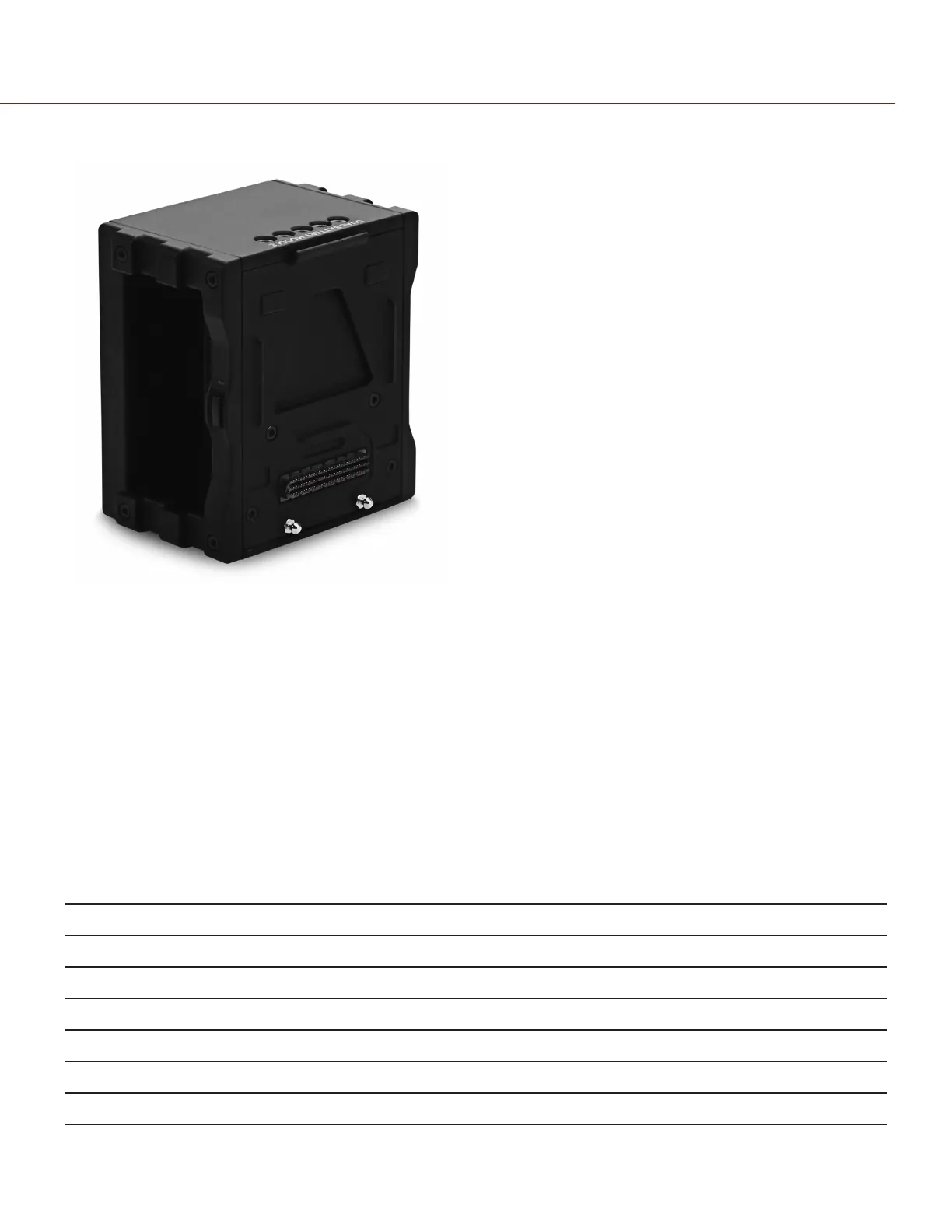

Figure: Pro Battery Module (Dual)
The Pro Battery Module (Dual) provides power to the EPIC/SCARLET camera using two (2) REDVOLT batteries. The
Pro Battery Module (Dual) also supports hot swapping of REDVOLT batteries. Attaching outrigger handles and other
tactical gear is convenient using the 1/4-20 mounting points on the top of the module.
For installation and removal instructions, go to "EPIC/SCARLET Power Module Operations" on page31.
WARNING: DO NOT use more than one (1) battery module at a time. Using multiple battery modules may damage the
camera and is not be covered under warranty.
NOTE: A Module Adaptor or +1 Adaptor Module is required to mount this module to the BRAIN.
NOTE: The Pro Battery Module (Dual) does not charge batteries.
PRO BATTERY MODULE (DUAL) LEDS
Both battery compartments have an LED and battery eject button to show the corresponding battery status.
COLOR/FLASHING DESCRIPTION
Off No battery
Green Battery is charged, but is not in use
Green flashing Battery in use
Amber flashing Battery has 10 minutes of run time remaining; Accessing media (when formatting)
Red Battery needs to be recharged
Red flashing Battery has five (5) minutes of run time remaining
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 33
