REDVOLT TRAVEL CHARGER LED INDICATOR
The REDVOLT Travel Charger LED indicator displays a specific color and pattern indicating the state of charge.
COLOR PATTERN DESCRIPTION
Green Charger on, battery fully charged
Green/Red flashing (alternating) Charger on, fail condition
Amber flashing Charger on, battery connected and charging
Red Charger on, no battery connected
RECHARGE A REDVOLT BATTERY
1. Connect the REDVOLT Travel Charger to 100–240 VAC, 50/60 Hz power outlet.
2. Lower the REDVOLT directly onto the charger.
3. Apply pressure until an audible click is heard and the battery is fully seated.
WARNING: DO NOT insert a REDVOLT at an angle or connector side first. This may cause damage the battery
connector or charger.
4. Charge the battery until the LED indicator turns green, signalling a fully charged battery.
5. Remove the battery from the charger.
REDVOLT CHARGER (QUAD)

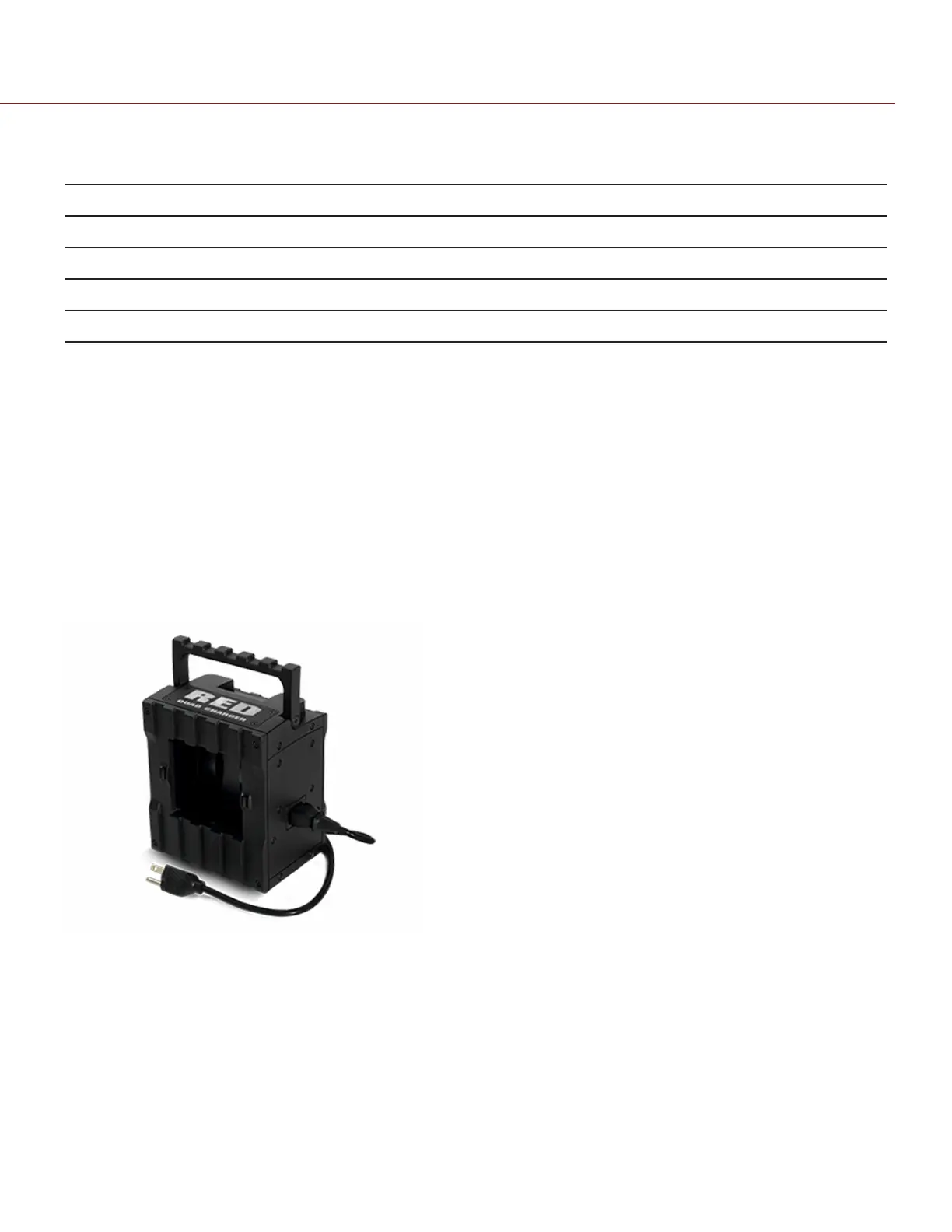

Figure: REDVOLT Charger (Quad)
The REDVOLT Charger (Quad) is the fastest way to charge up to four REDVOLT or two REDVOLT XL batteries. All
batteries charge simultaneously, with up to 1.75 A distributed evenly to each cell until fully charged. The REDVOLT
Charger (Quad) can charge multiple REDVOLT or REDVOLT XL batteries in two (2) hours or less.
NOTE: The REDVOLT Charger (Quad) stops charging automatically if battery temperature exceeds 40˚C (104˚F), or
drops below 0°C (32°F).
