EPIC/SCARLET ADAPTOR OPERATIONS
This section describes the installation and removal of EPIC/SCARLET module adaptors.
INSTALL THE +1 ADAPTOR MODULE
REQUIRED TOOL(S): T20 TORX
®
driver
1. Turn off the camera.
2. Remove the REDMOTE, if attached.
3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN.

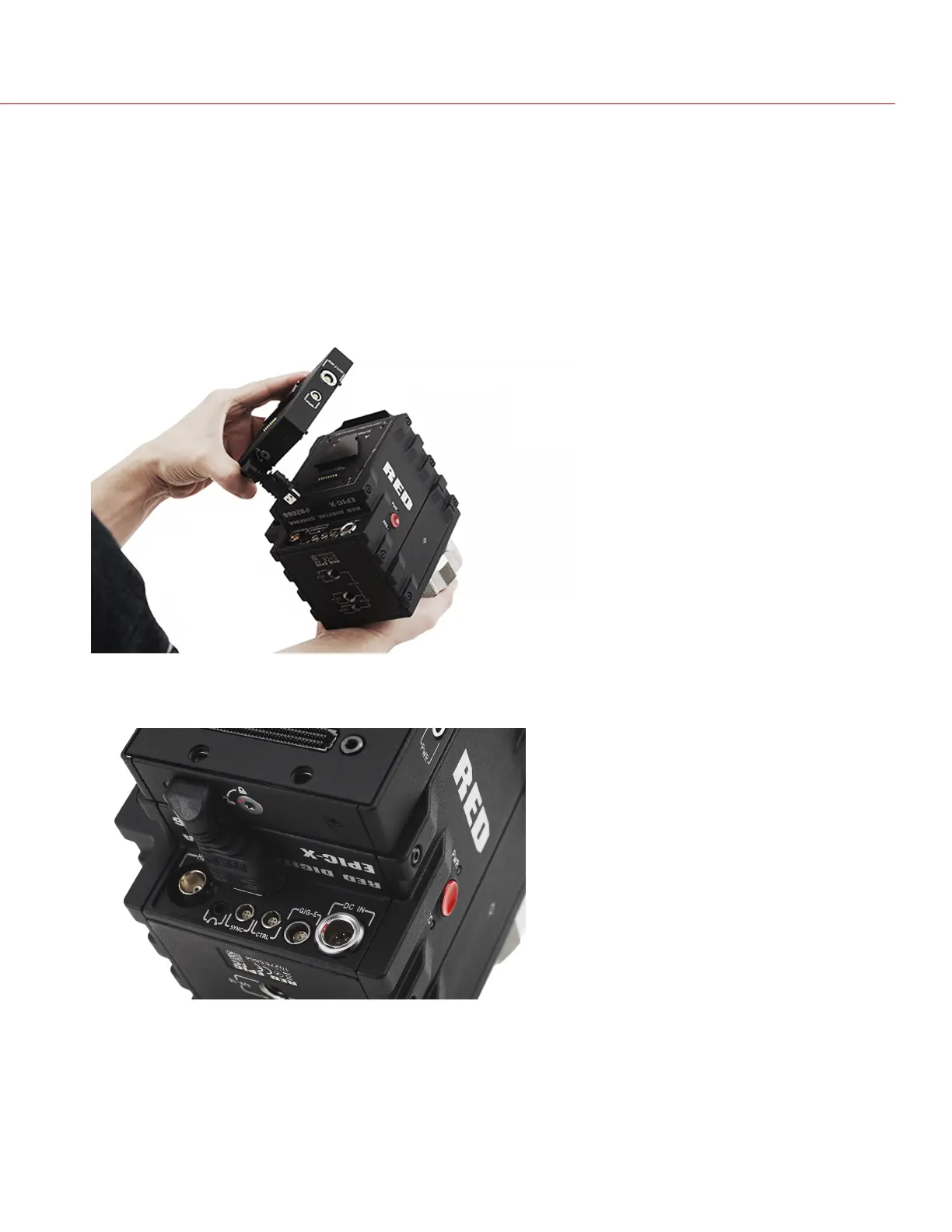

Figure: Install the +1 Module Adaptor
4. Insert the HDMI connector into the
HDMI
port on the BRAIN.
Figure: Insert the HDMI Connector to the BRAIN
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 29
RED DSMC POWER OPERATION GUIDE
