DSMC2 V-LOCK BATTERY MODULE CONNECTOR
The DSMC2 V-Lock Battery Module offers one (1) P-Tap connector that provides power (3.0 A max) for camera
accessories.

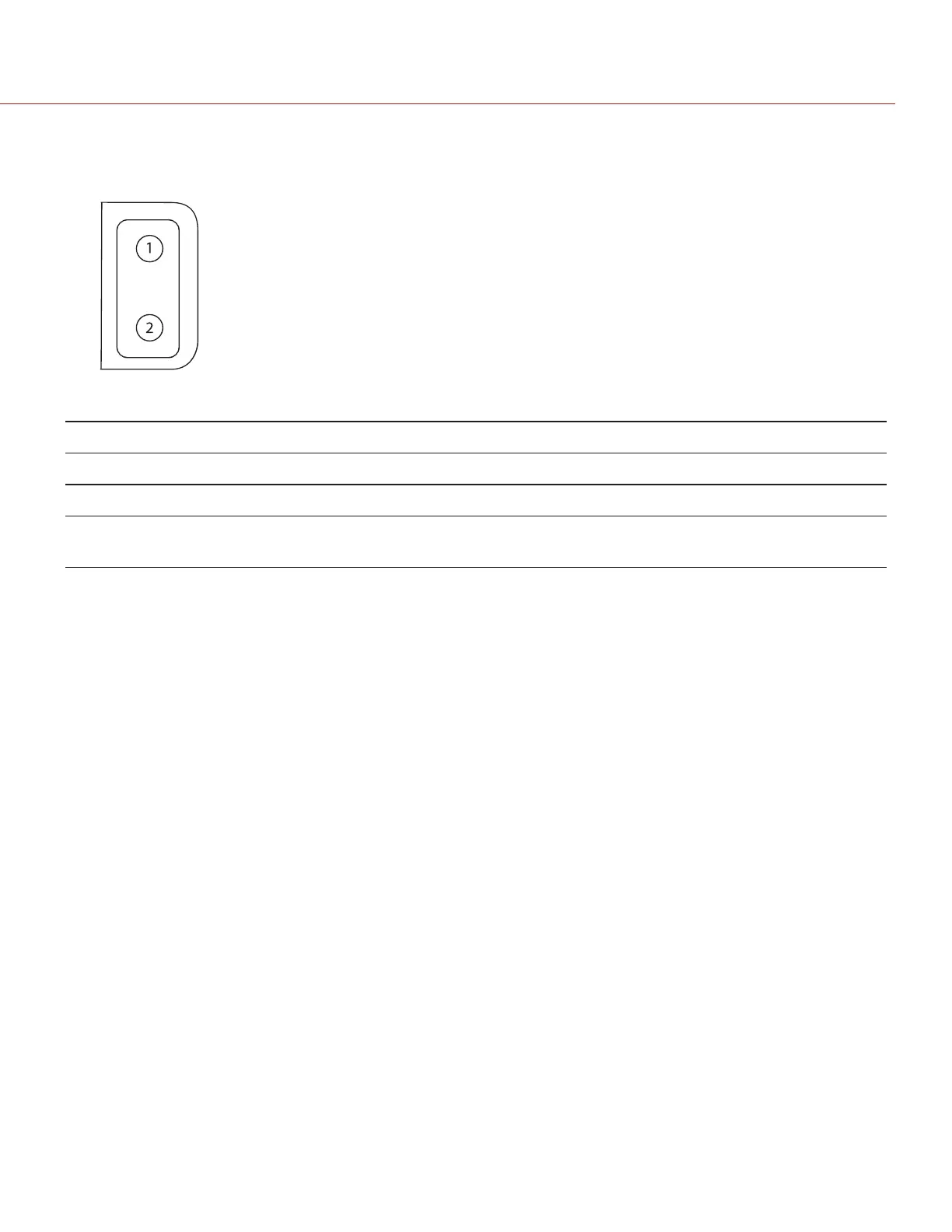

Figure: DSMC2 V-Lock Battery Module P-Tap Connector
2-PIN P-TAP CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 +11.5 to +17 VDC +11.5 to 17 VDC unregulated battery pass-
through power
Out
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 54
RED DSMC POWER OPERATION GUIDE
