RED BRICK LED ARRAY

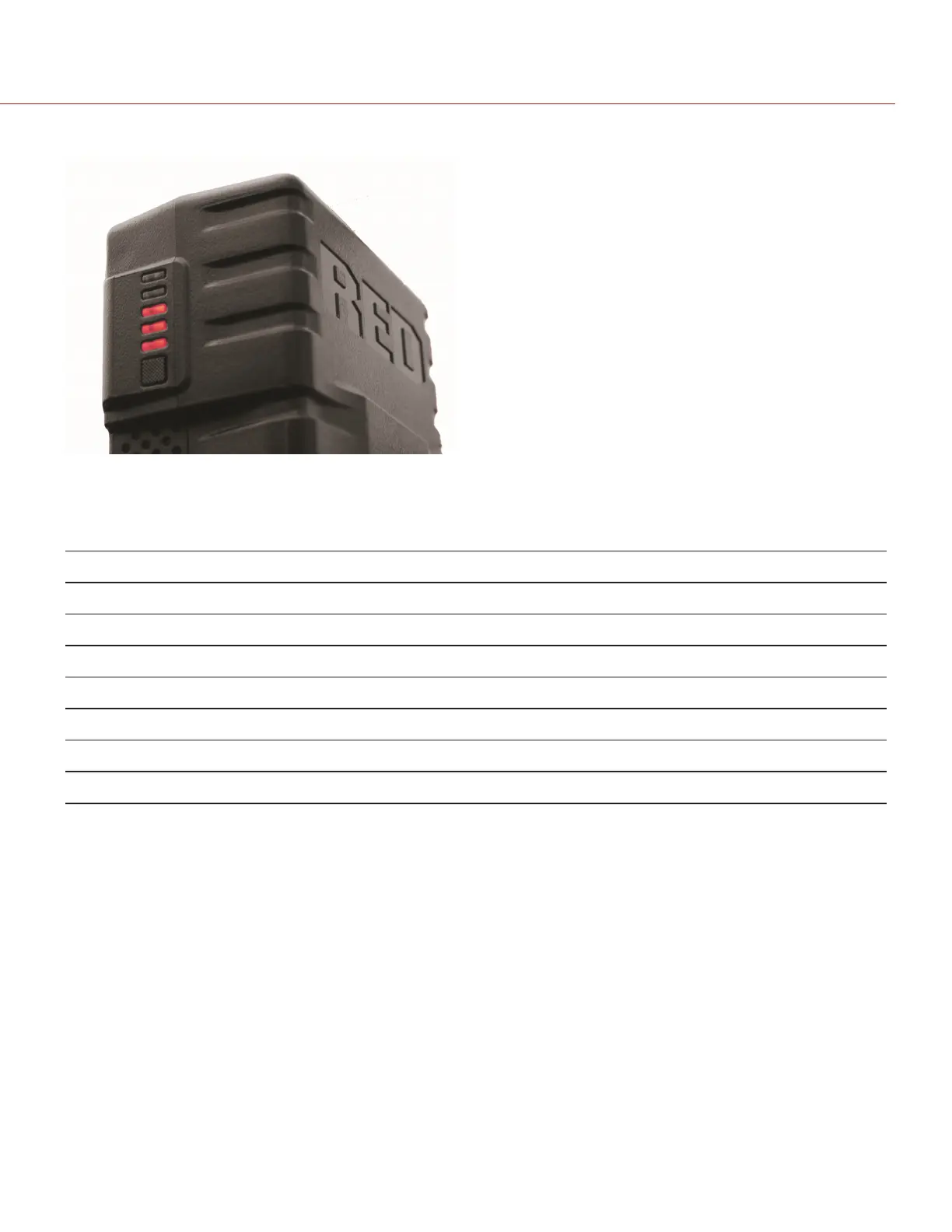

Figure: RED BRICK LED Array (Approximately 60%)
The RED BRICK battery LED array consists of five (5) LEDs and a status button. Press the status button to illuminate
the LEDs, displaying the remaining battery charge level in 20% steps.
LED PATTERN DESCRIPTION
Five (5) LEDs are on 80% to 100% capacity remaining
Four (4) LEDs are on 60% to 79% capacity remaining
Three (3) LEDs are on 40% to 59% capacity remaining
Two (2) LEDs are on 20% to 39% capacity remaining
One (1) LED is on 8% to 19% capacity remaining
One (1) LED flashes 0% to 7% capacity remaining
Five (5) LEDs are off Battery is discharged and requires charging
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 64
RED DSMC POWER OPERATION GUIDE
