RED QUICKPLATE

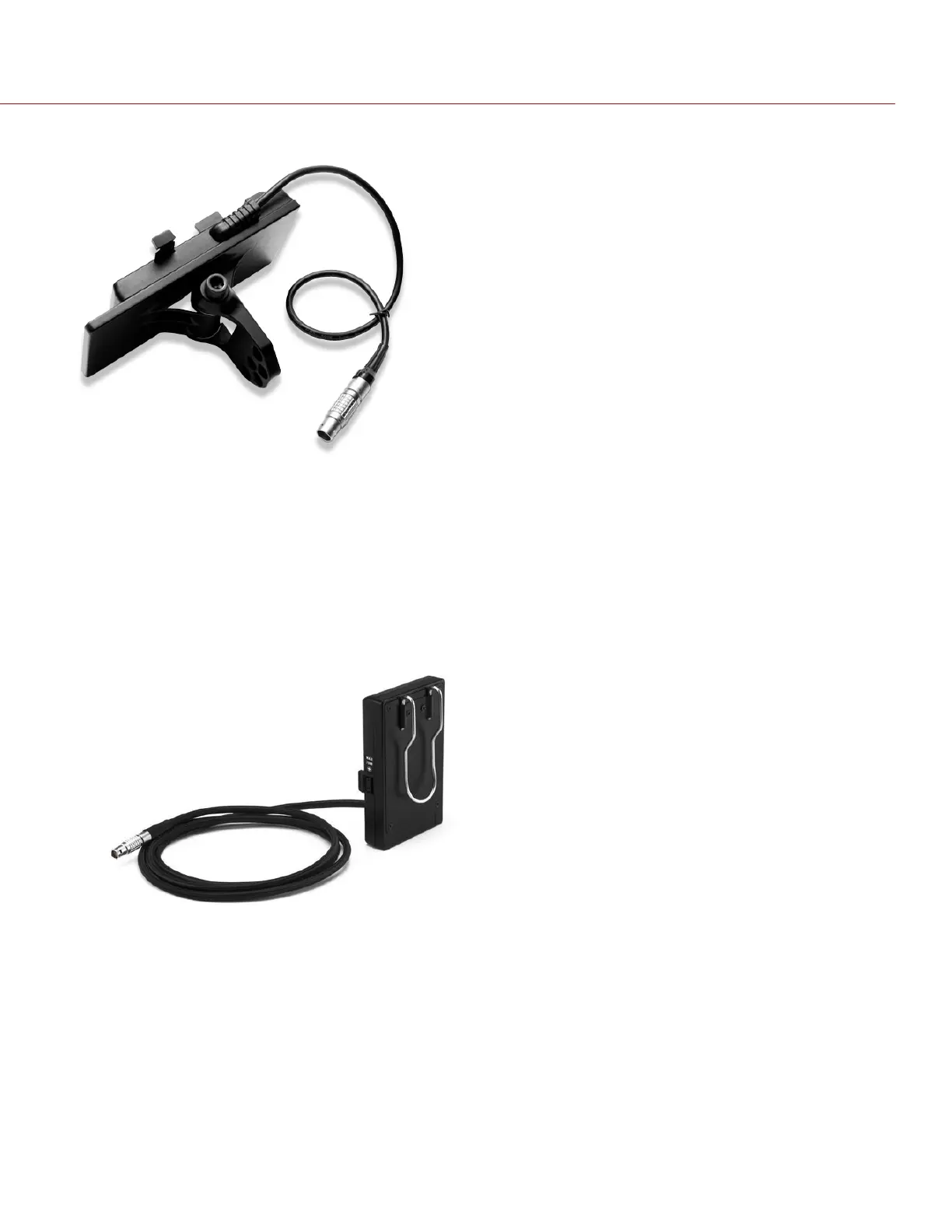

Figure: REDQuickplate
The RED Quickplate provides a reliable solution for powering the camera with a RED BRICK.
NOTE: Requires a 2B-to-1B Power Adaptor Cable for use with the camera.
NOTE: The RED Quickplate is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC-W
cameras.
BATTERY BELT CLIP (DSMC)
Figure: Battery Belt Clip (DSMC)
The Battery Belt Clip (DSMC) provides a portable power solution for lightweight hand-held configurations. The
attached power cable with a 6-pin 1B LEMO connector allows you to plug directly into the BRAIN DC IN port, without
the use of a 2B-to-1B Power Adaptor Cable.
NOTE: The Battery Belt Clip (DSMC) is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC-
W cameras.
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 75
RED DSMC POWER OPERATION GUIDE
