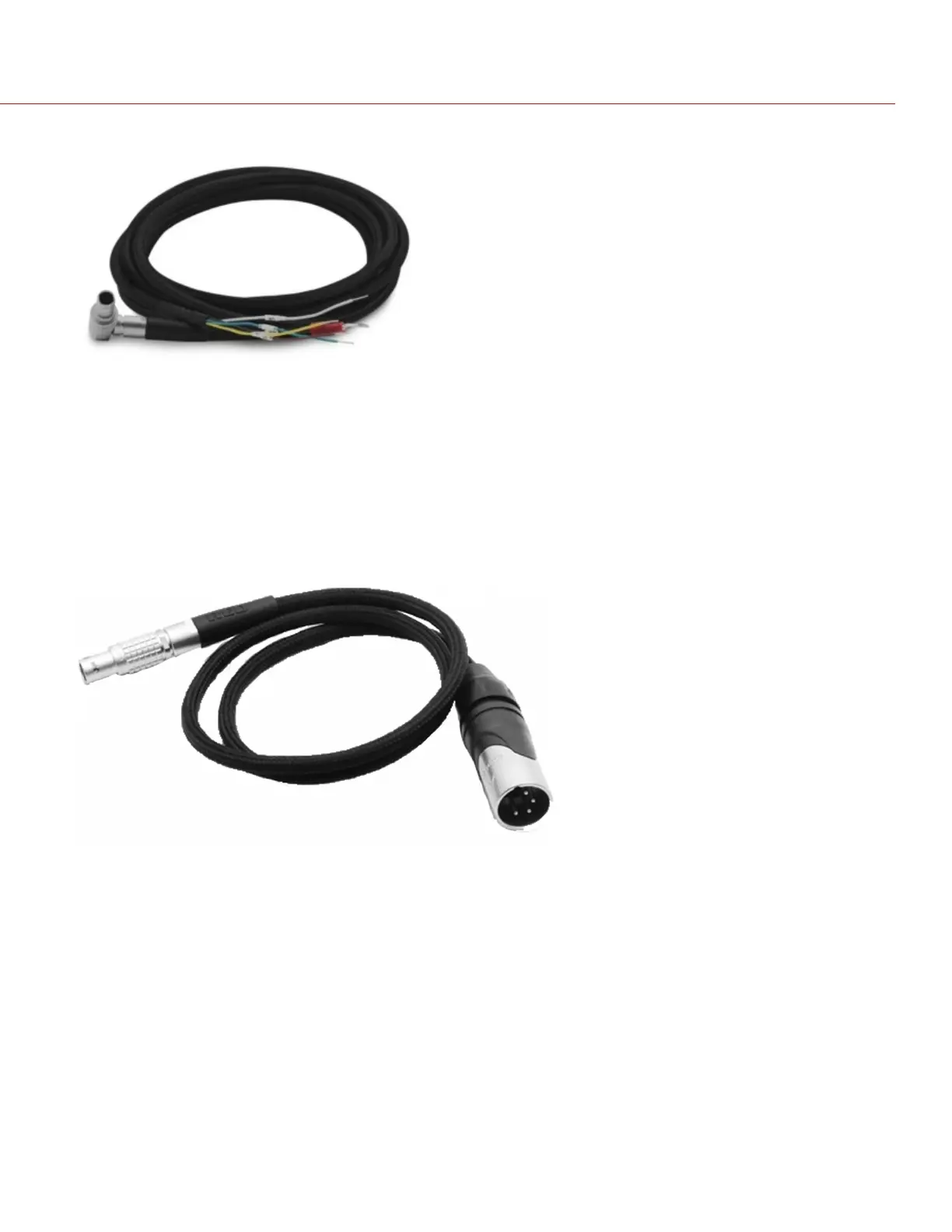

PRO I/O AUX POWER OUT + GPIO CABLE (6')
Figure: Pro I/O Aux Power Out + GPIO Cable (6')
The Pro I/O Aux Power Out + GPIO Cable (6') connects to the 4-pin GPIO port and/or 4-pin PWR port on the Pro I/O
Module. This cable allows you to remotely trigger the camera from an external device and/or provide unregulated +11
VDC to +17 VDC battery power to an external device.
WARNING: DO NOT attempt to make your own Pro I/O Aux Power Out + GPIO Cable.
NOTE: The Pro I/O Aux Power Out + GPIO Cable is compatible with EPIC and SCARLET cameras.
XLR POWER CABLE
Figure: XLR Power Cable
The XLR Power Cable enables you to power the camera from a 4-pin XLR power source. The XLR Power Cable is
available in 30" or 10' lengths.
NOTE: The XLR Power Cable is compatible with EPIC, SCARLET, WEAPON, SCARLET-W, RAVEN, and EPIC-W
cameras.
C OPYRI G HT © 2017 RED.C OM , LLC 955- 0038, REV-AD| 78
RED DSMC POWER OPERATION GUIDE
