counterclockwise from the nominal “rear-facing” orientation). The tilt axis range of adjustment is approximately
180˚. Damage to a RED display or other DSMC components caused by excessive force is not covered under
warranty.
BOMB EVF (LCOS) AND BOMB EVF (OLED)
The BOMB EVF (LCOS) and BOMB EVF (OLED) deliver specialized viewing solutions for the DSMC. The BOMB
EVF (LCOS) is a high-definition, lightweight, and low-profile viewfinder. The BOMB EVF (OLED) uses OLED
technology, providing deeper blacks and more color accurate images.
ITEM RESOLUTION CONTRAST RATIO DIOPTER RANGE
BOMB EVF (LCOS) 1280 (wide) x 784 (high); full color 1000:1 typical 2.0 to –5.0.1
BOMB EVF (OLED) 1280 (wide) x 1024 (high); full color >10,000:1 typical 2.0 to –5.0.1
WARNING: DO NOT point the BOMB EVF (OLED) eyepiece at direct sunlight. Continued exposure to direct
sunlight may damage the EVF. Point the eyepiece away from sunlight when not in use. Damage to the BOMB
EVF (OLED) caused by continued exposure to direct sunlight is not covered under warranty.

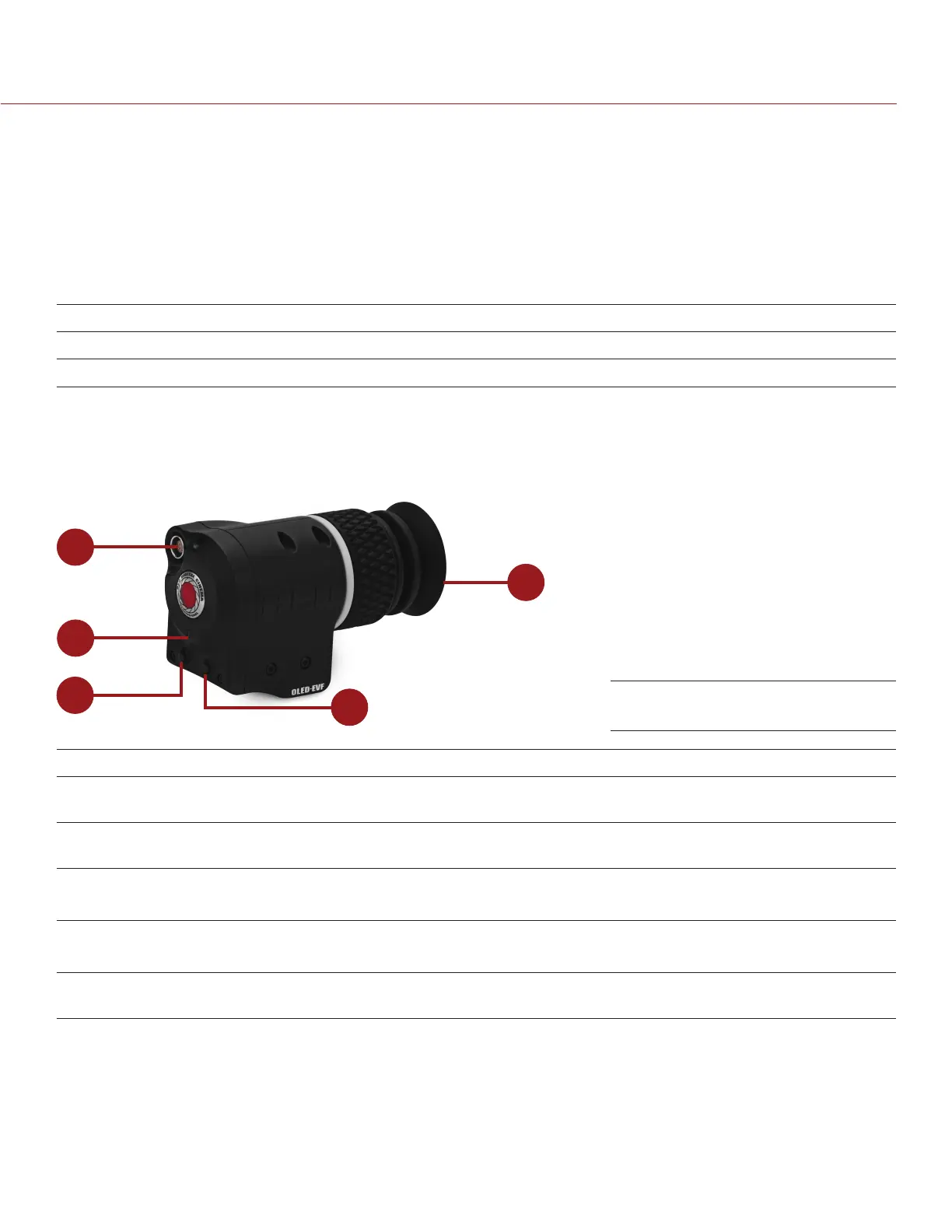

BOMB EVF FEATURES
1
5
2
3
4
# FEATURE DESCRIPTION
1 EVF connector Custom digital video and power interconnection between BRAIN and RED
EVF; Pinout not published
2 EVF Tally LED When enabled, the LED illuminates red when recording; For more information,
go to “Indicator” on page 100
3 Key 1 Programmable key
Magnify: Toggle
4 Key 2 Programmable key
Exposure Check: Toggle
5 Eyepiece heater The integrated eyepiece heater automatically heats the eyepiece when the
EVF detects a low ambient temperature
BOMB EVF (OLED)
