RED DSMC OPERATION GUIDE
COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D | 41
DSMC INTERCHANGEABLE OLPF SYSTEM
This section describes the process for swapping a DSMC Interchangeable OLPF.
WARNING: Read these instructions carefully and in their entirety before removing or installing a DSMC
Interchangeable OLPF. Damage caused to the OLPF module, camera, or sensor due to improper handling or
use is not covered under warranty.
WARNING: Once an interchangeable OLPF is removed from the BRAIN, the sensor is exposed. Improper handling
of the OLPF modules or BRAIN during this procedure may compromise the installation or cause irreparable
damage to your camera or sensor.
WARNING: This procedure is ONLY applicable to DRAGON sensor cameras that are compatible with the DSMC
Interchangeable OLPF system.
WARNING: DO NOT allow any dirt or debris to enter the optical cavity.
SWAP AN INTERCHANGEABLE OLPF
REQUIRED TOOLS: T20 Torx driver, T6 Torx driver
1. Turn off the BRAIN.
2. Remove any modules, cables, or other accessories that may interfere with operations.
3. Loosen and remove the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern) using a
T20 Torx driver.
NOTE: Screw removal may require a large handle T20 Torx driver and additional leverage.
4. Remove the lens mount.
5. Use a damp, lint-free cloth to gently wipe down the area around the lens mount and OLPF module. Remove
as much dust and debris as possible.

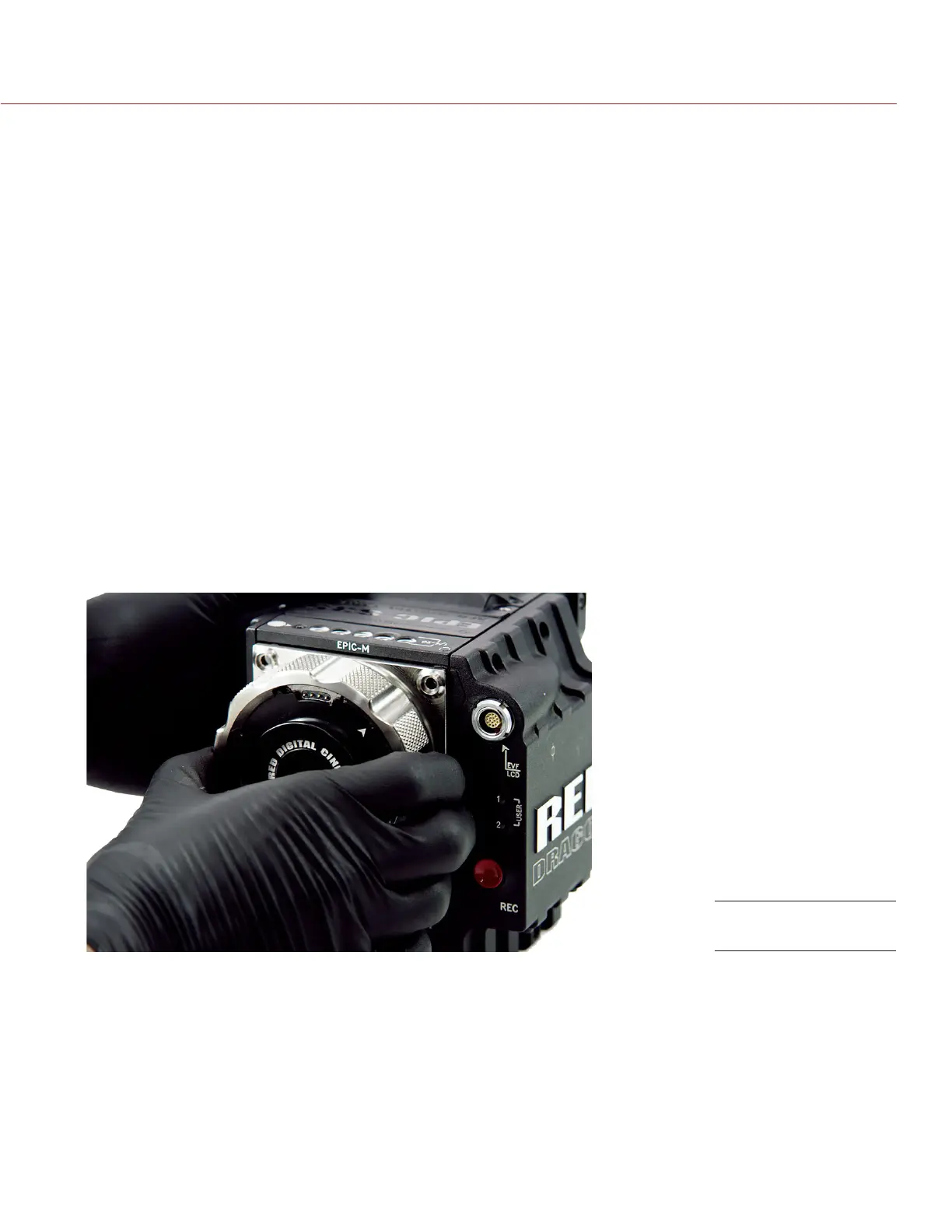

Remove Lens Mount
