6. Remove the four (4) M2x0.4 x 4 mm OLPF module screws (P/N 600-0224) in a cross pattern (“X” pattern)
using a T6 Torx driver.
7. Remove the OLPF module and place it in the protective case.

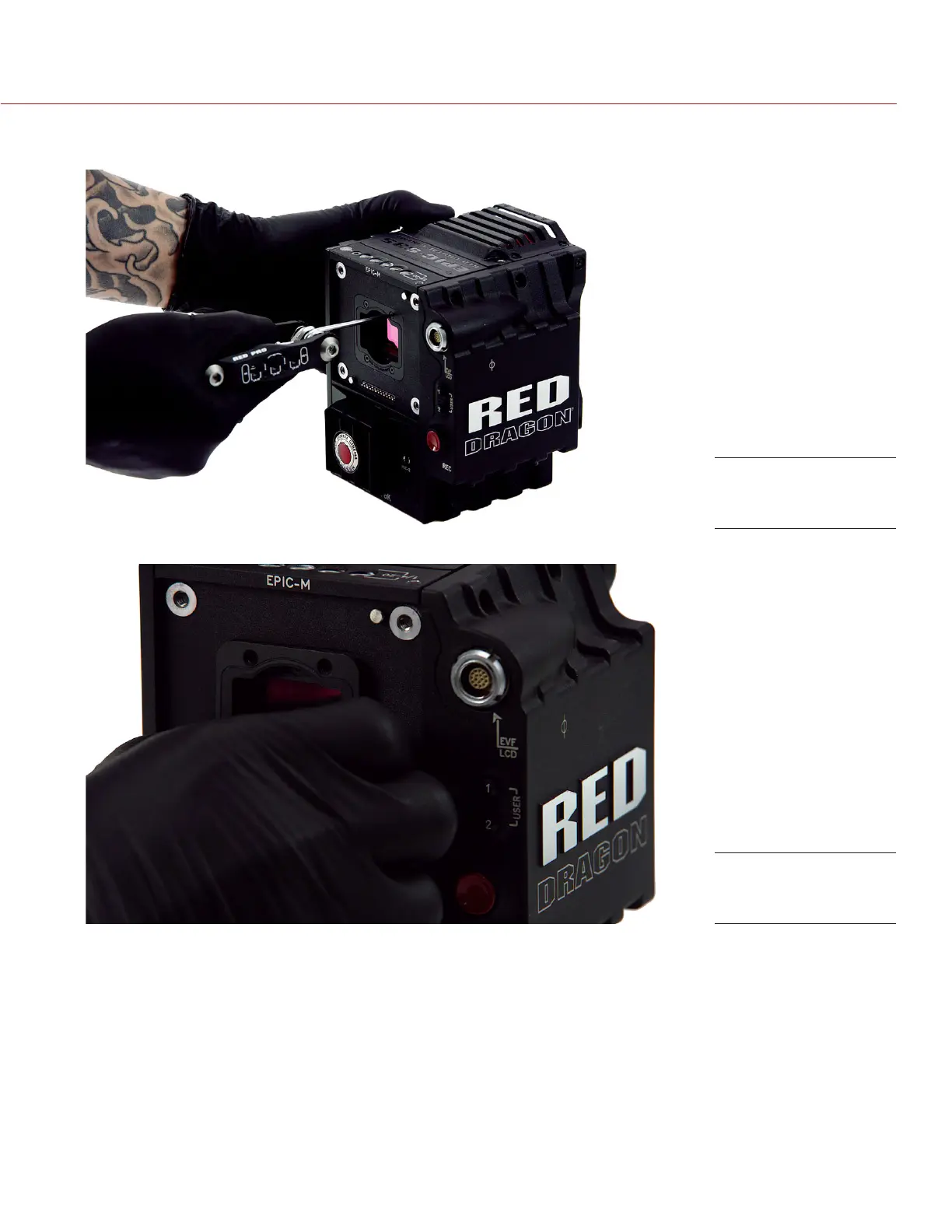

Remove OLPF
module screws
Remove the OLPF
module
