AUDIO OUTPUT OPTIONS
DSMC BRAIN: One (1) 2-channel headphone output. For maximum quality, use high impedance headphones.
Pro I/O Module: One (1) XLR connector that supports 2-channel line level analog output. The signal strength
of the line out cannot be controlled, and is fixed at –15 dB gain.
HDMI and HD-SDI monitor: Both output two (2) channels of 24-bit 48 KHz uncompressed, embedded digital
audio. Select and mix the stereo channels in the Monitor Mix menu at Menu > Settings > Audio > Monitor Mix.
To monitor audio via HDMI or HD-SDI, the third-party monitor must support audio.
CONTROL HEADPHONE VOLUME (DSMC BRAIN)
The volume range for Left and Right is –28 dB to –0 dB. The default is –9 dB. To adjust headphone volume,
use the following instructions:

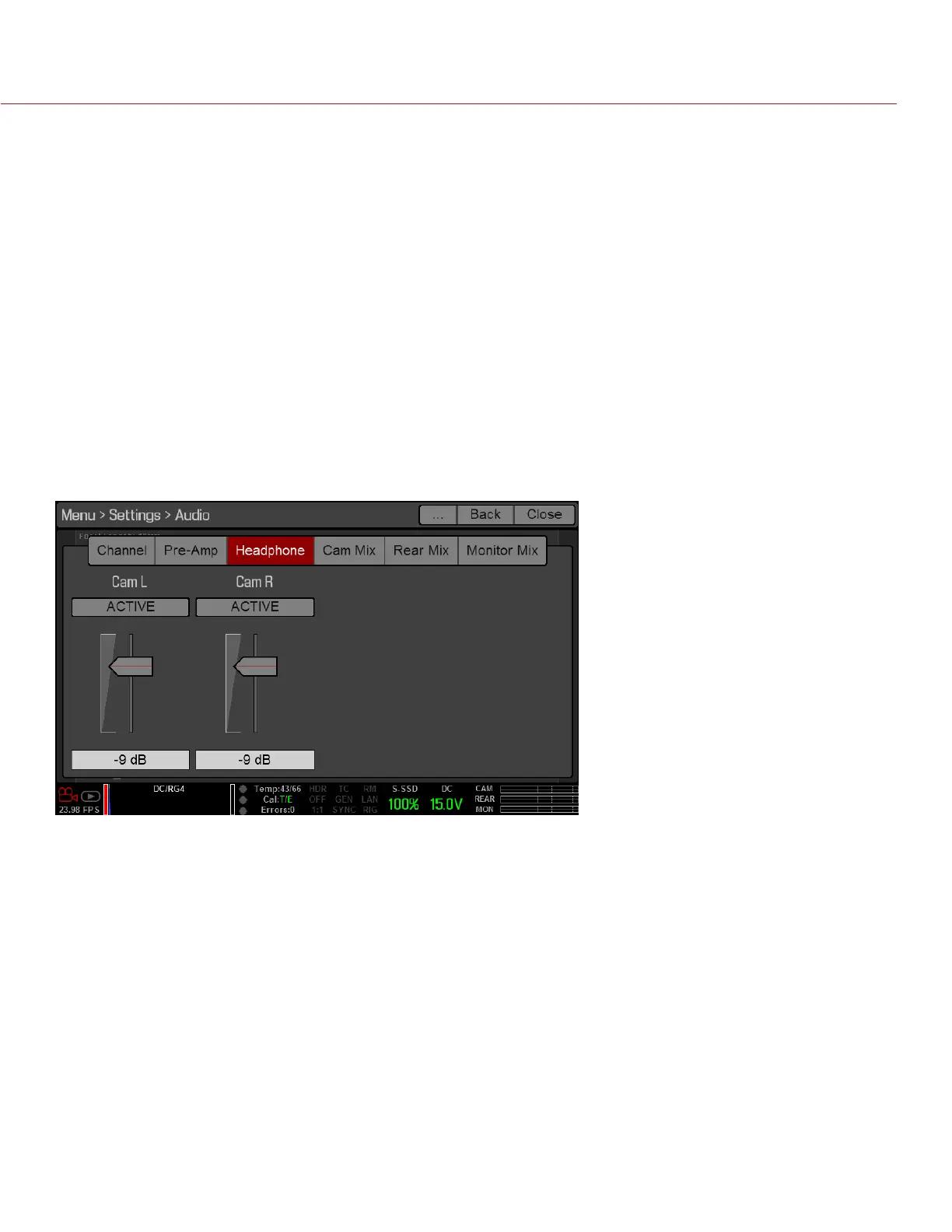

1. Go to Menu > Settings > Audio > Headphone.
2. Move the Headphone sliders up and down to adjust the volume.
3. To toggle mute/unmute, select ACTIVE and MUTE, respectively.
NOTE: To link the volume for Left and Right, go to Menu > Settings > Audio > Channel and select the Volume Sliders
check box. For more information, go to “Link” on page 140.
