DSMC INTERCHANGEABLE OLPFS
This section describes the DSMC Interchangeable OLPF system and modular OLPFs.
NOTE: The DSMC Interchangeable OLPF system is only compatible with the DRAGON sensor.
The DSMC Interchangeable OLPF system is an upgrade to the optical low-pass filter (OLPF) in your EPIC
DRAGON or SCARLET DRAGON. The modular mounting system enables you to remove and replace OLPFs to
achieve optimal color reproduction in any lighting and environment.
For more information, go to “DSMC Interchangeable OLPF System” on page 41.

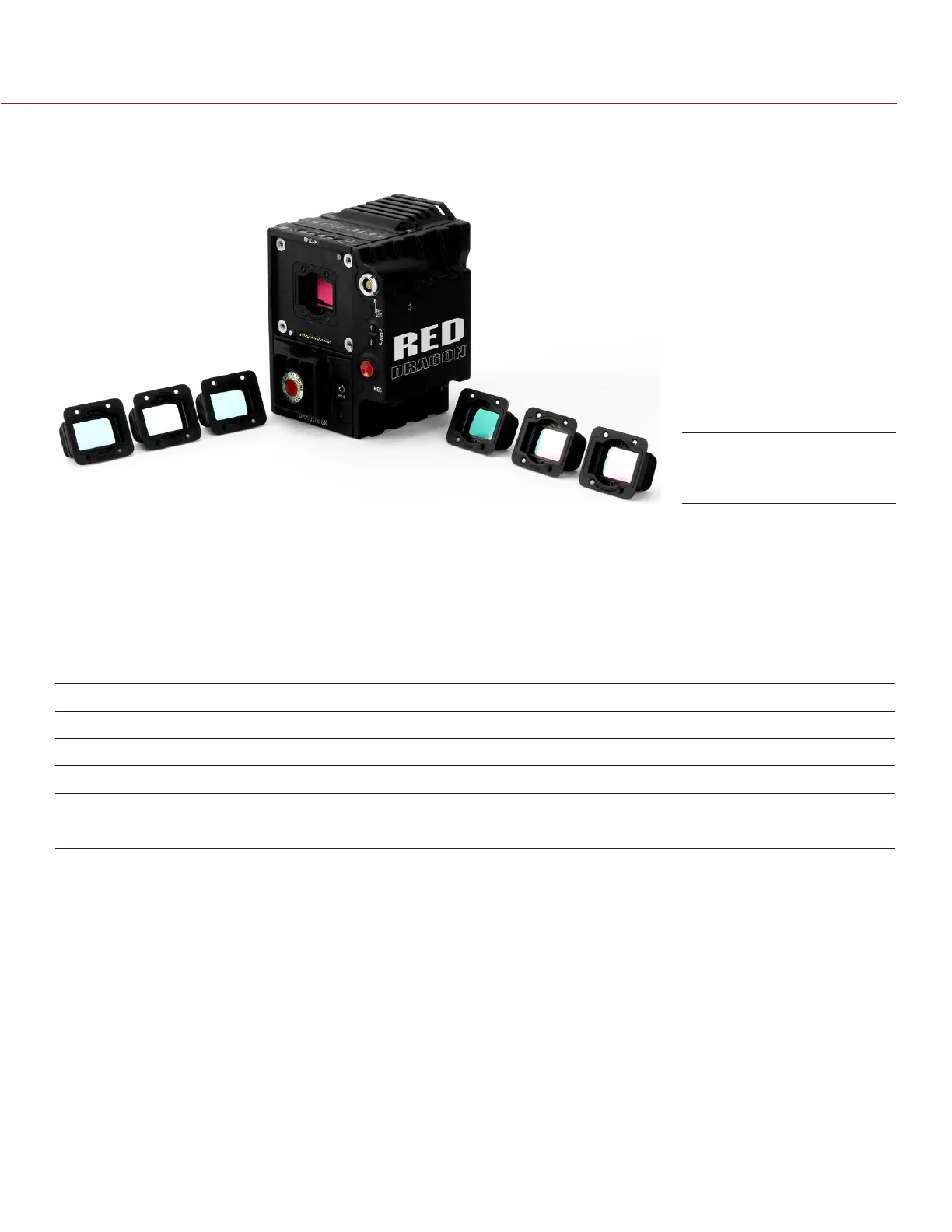

RED offers the following modular DSMC Interchangeable OLPFs:
ITEM LABEL
1
PART NUMBER REQUIRED FIRMWARE
DSMC Skin Tone-Highlight OLPF S 790-0461 v5.2.28 or later
DSMC Low Light Optimized OLPF L 790-0462 v5.2.28 or later
DSMC H
2
O OLPF H 790-0472 v5.3.29 or later
DSMC IR Pass OLPF (Color) I 790-0473 v5.3.33 or later
DSMC Monochrome OLPF
2
M 790-0481 v5.2.9 or later
DSMC IR Pass OLPF (Monochrome)
2
I 790-0474 v5.3.33 or later
1. Visible on the top inside part of the OLPF assembly.
2. Monochrome OLPFs are for use with the DRAGON MONOCHROME sensor ONLY.
