DISPLAYS AND ELECTRONIC VIEWFINDERS
This section describes the RED displays and electronic viewfinders (EVFs).
RED offers the following displays and EVFs:
ITEM PART NUMBER
RED Touch 5.0" LCD (800 x 400 resolution) 730-0008

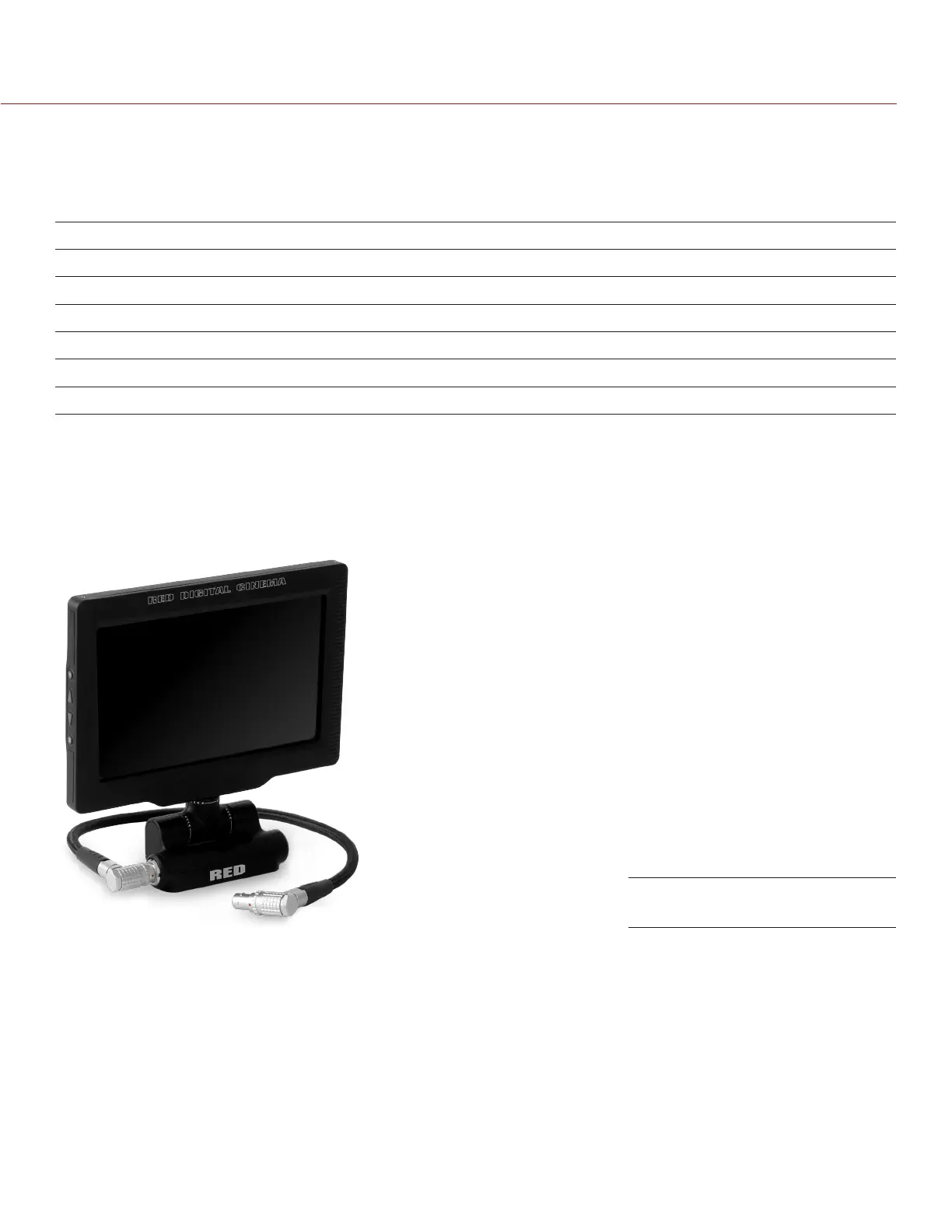

RED Touch 7.0" LCD
1
(1920 x 1136 resolution) 730-0007
RED Touch 9.0" LCD (1280 x 784 resolution) 730-0011
RED PRO LCD 7" (1024 x 600 resolution) 730-0009
BOMB EVF
®
(LCOS) 730-0004
BOMB EVF (OLED) 730-0010
1. The RED Touch 7.0" LCD requires that your DSMC is on firmware v5.2.38 or later. It can take the camera up to 8.5 minutes to update
firmware for the RED Touch 7" LCD. The LCD displays a progress screen during the update. If your camera loses power during the update,
turn your camera back on. The LCD update restarts. Since the update was interrupted, you will not see a progress screen. Instead, the
LCD is blank and the PWR/REC LEDs flash green for up to 8.5 minutes.
For a full list of LCD and EVF user keys and default actions, go to “Default Key Functions” on page 215.
RED DISPLAYS
RED displays provide important camera parameters on the graphical user interface (GUI) and offer a variety of
monitor viewing options. RED touchscreen displays enable you to use gestures to navigate menus and adjust
camera parameters. RED displays feature 8-bit RGB, 4:4:4 progressive scan, providing up to 16.7 million colors
and up to 70% NTSC color gamut.
TOUCHSCREEN PRECAUTIONS
WARNING: DO NOT use the threaded holes to mount to the BRAIN. Damage to a RED display or other components
of the DSMC system caused by using these threads are not covered under warranty.
WARNING: DO NOT use a RED display as a handle to lift or carry the DSMC. Damage to a RED display or other
components of the DSMC system caused by using the display as a handle are not covered under warranty.
IMPORTANT: The RED LCD swivel axis has a total adjustment range of approximately 360˚ (180˚ clockwise or
RED Touch 7.0" LCD
