GENLOCK OFFSET
Offset the video of the selected output (BRAIN or REDCAST Module) to align it with the genlock signal:
 Negative offset: Advances the video, so the video reaches the switcher earlier than it would otherwise.
 Positive offset: Advances the video, so the video reaches the switcher later than it would otherwise.
DISPLAY MODES
Use the Modes menu to determine how the following settings display:
 Camera
 Lens
CAMERA TAB
EXPOSURE
 Time (Absolute): Displays the exposure time in seconds (1/xx sec). When you change the frame rate in this
mode, the shutter time stays the same, but the shutter angle changes. Time (Absolute) is the default.
 Angle (Relative): Displays the exposure as an angle (1–360°). When you change the frame rate in this mode,
the shutter angle stays the same, but the exposure time changes.
POWER
 Current Batt %: Displays the remaining percentage of active battery. (Default)
 Total Time: Displays the total run-time left of battery power, taking into account all available batteries.
VU METER
 Input: Displays levels of audio inputs (pre-mixer). (Default)
 Output: Displays levels of audio outputs (post-mixer).
HISTOGRAM
NOTE: The Histogram setting is not accessible on BRAINs with MONOCHROME or RED DRAGON MONOCHROME
sensors.
 RGB: Displays red, green, and blue channels on histogram. (Default)
 Luma: Displays luma channel on histogram.

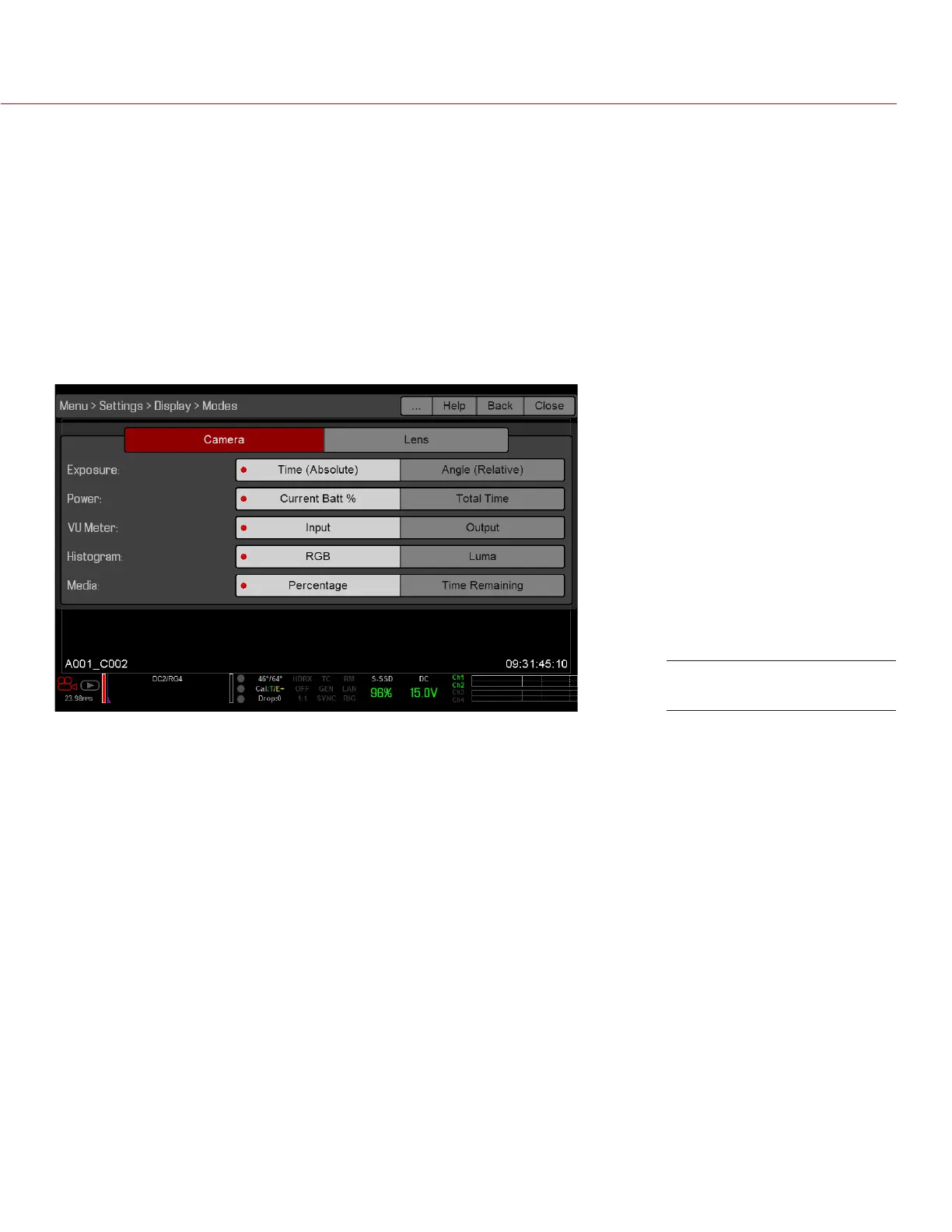

Display Mode: Camera
