By default, the monitor priority is:
1. BRAIN LCD
2. BRAIN EVF
3. BRAIN HDMI
If you remove an LCD when an EVF is attached, then the EVF becomes the control monitor. If you then remove
the EVF when an HDMI monitor is attached, the HDMI monitor becomes the control monitor. If you then re-
attach the LCD, then the LCD is the control monitor again.
BRIGHTNESS
Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a
dimmer display. Side UI LCD controls the brightness of the Switchblade-M LCD.
NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module
or the Pro I/O Module.

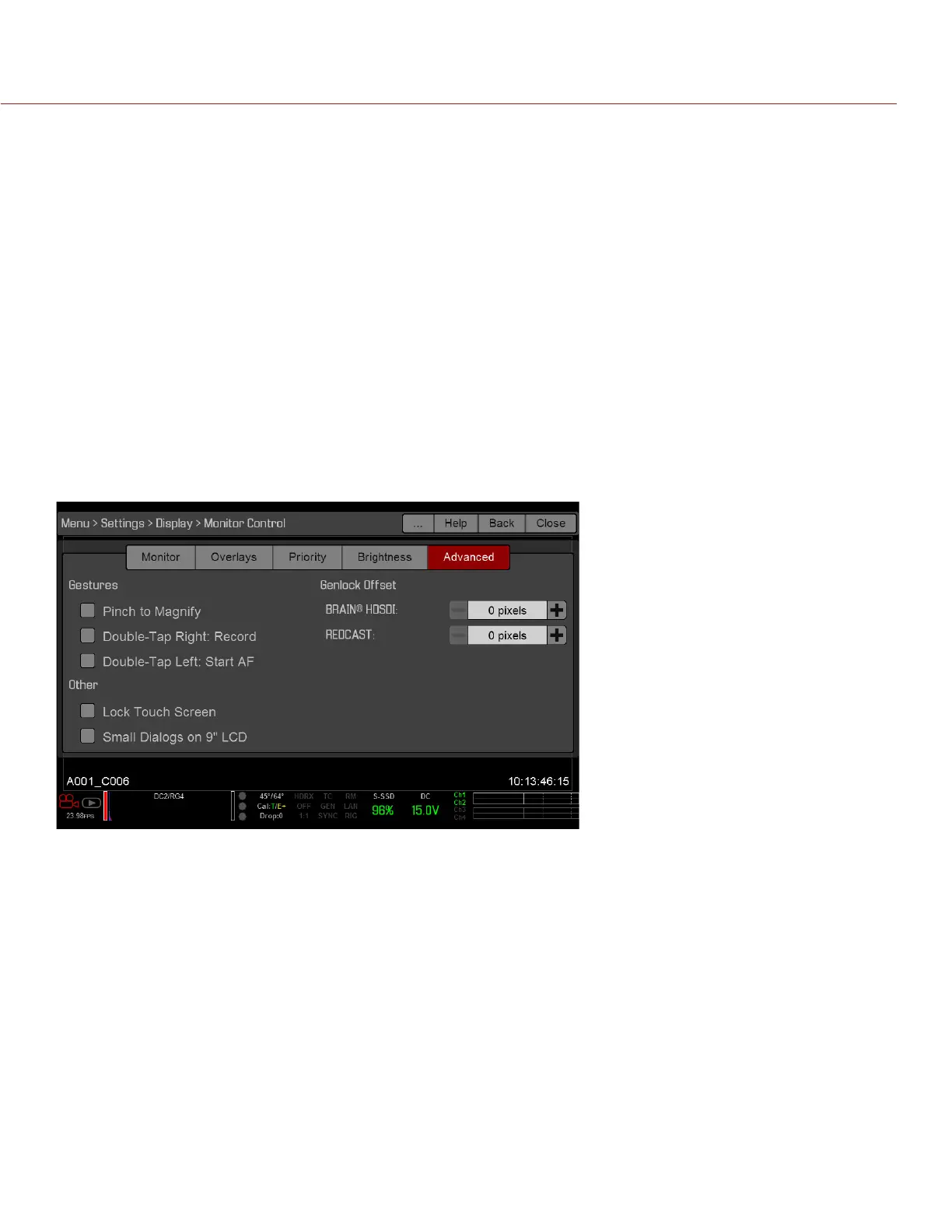

ADVANCED
Provides access to additional gestures, and settings.
GESTURES
Pinch to Magnify: Move two (2) fingers apart or together to toggle 1:1 Magnify. For more information, go to
“Magnify” on page 69.
Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record.
Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus
when compatible lenses are used.
For a list of compatible lenses, go to “Lens Mounts and Lenses” on page 205.
OTHER
Lock Touch Screen: Touchscreen control is locked. To unlock, tap the screen and follow the on-screen
instructions.
Use Small Dialogs on 9" LCD: The dialogs on the RED Touch 9.0" LCD are smaller than the default dialogs.
