REMOVE THE MODULE ADAPTOR
REQUIRED TOOL: T20 Torx driver
1. Turn off the BRAIN.

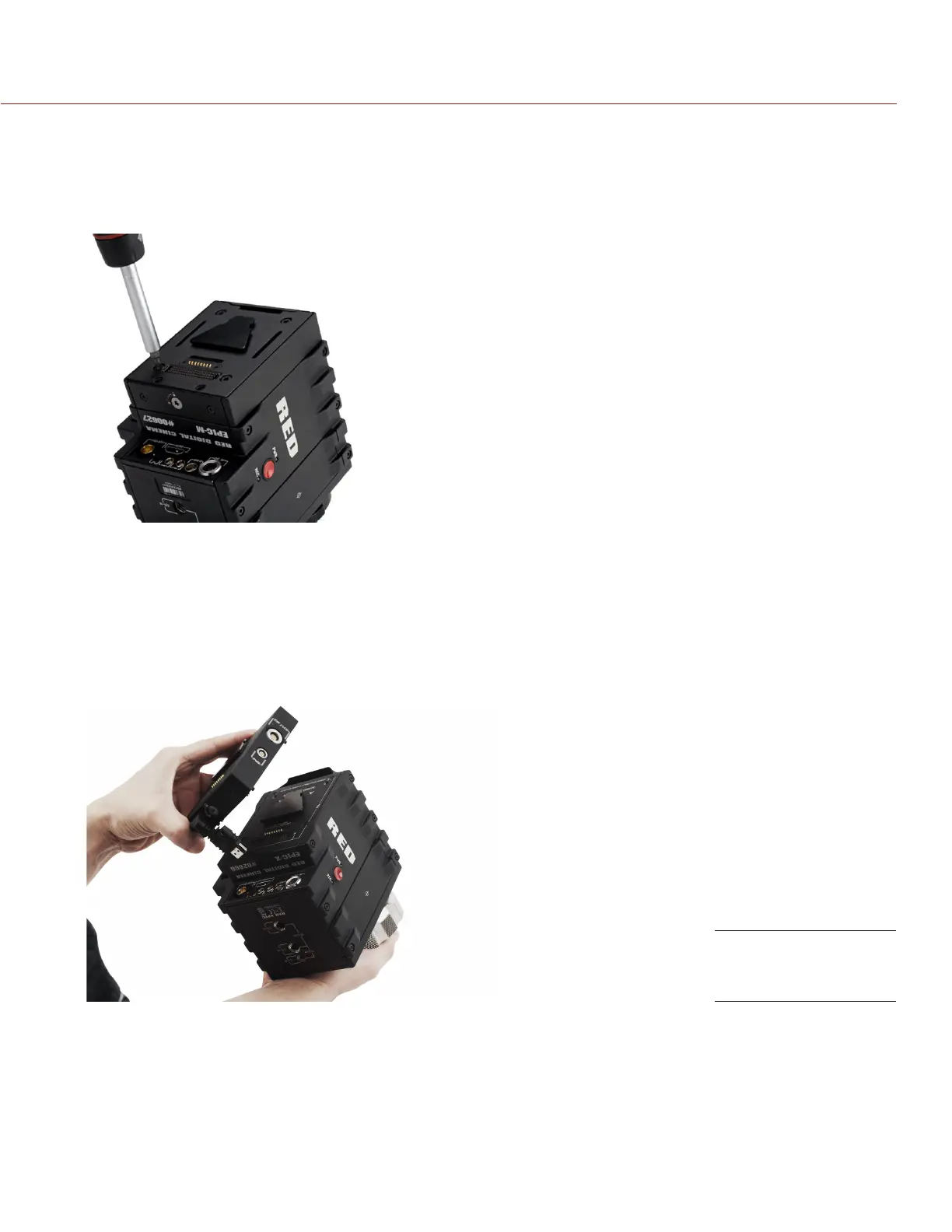

2. Use a T20 Torx driver to loosen the screws attaching the Module Adaptor to the BRAIN.
3. Remove the Module Adaptor from the BRAIN.
INSTALL THE +1 ADAPTOR MODULE
REQUIRED TOOL: T20 Torx driver
1. Turn off the BRAIN.
2. Remove the REDMOTE, if attached.
3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN.
Install the +1 Module
Adaptor
