CHANNEL 1/2 AND CHANNEL 3/4

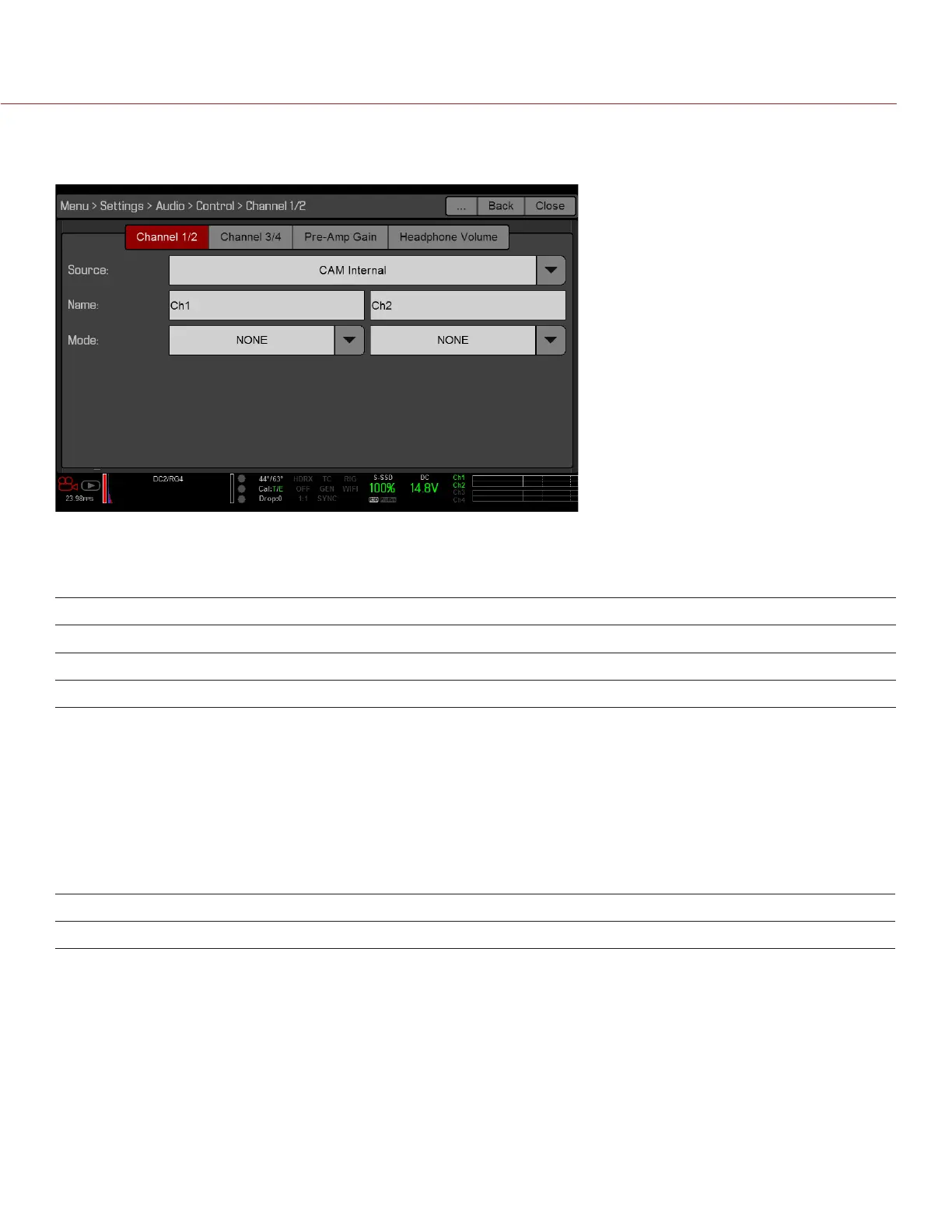

To set up Channel 1/2 and 3/4, go to Menu > Settings > Audio > Control.
SOURCE
The audio source options only display when the expanders are attached.
SOURCE NAME CHANNEL PAIRS EXPANDER CONNECTORS
None N/A N/A N/A
CAM Internal Ch1/Ch2, Ch3/Ch4 DSMC BRAIN MIC-1, MIC-2
Base Expander Ch1/Ch2, Ch3/Ch4 DSMC
2™
Base Expander Stereo Microphone
NAME
You can rename each audio channel. The default names are Ch1, Ch2, Ch3, and Ch4. The channel names
display in the Audio Meter, but are not included in the clip metadata. For more information, go to “Headphone
Volume” on page 137.
MODE
Match the channel mode to the incoming audio signal.
MODE SOURCE DESCRIPTION
NONE NONE Audio recording disabled.
To Next Page
