RED WEAPON Series - DSMC 2 Jetpack Expander

RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
COPYRIGHT © 2016 RED.COM, INC 955-0116_V6.1, REV-U | 177
DSMC
2

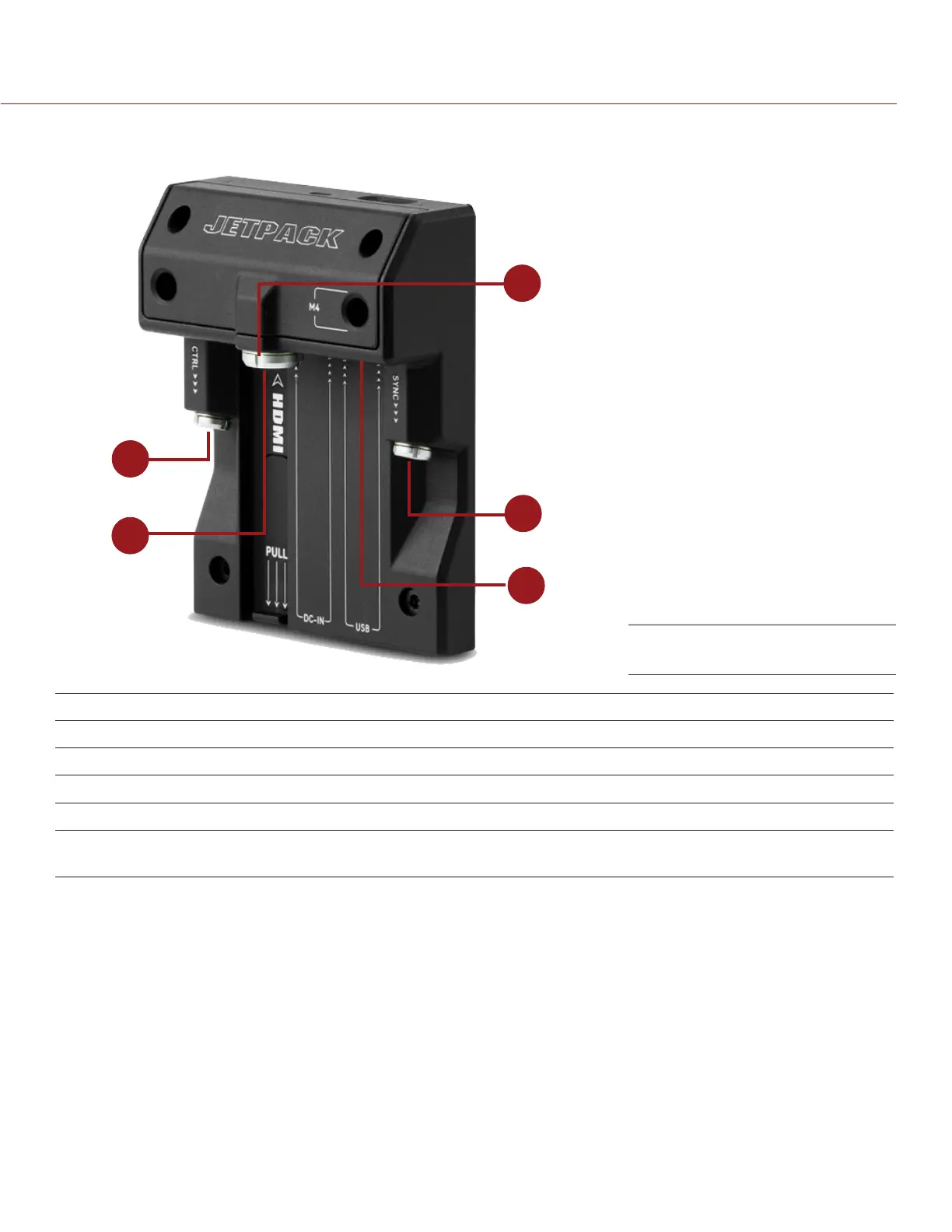

JETPACK EXPANDER
1
2
3
4
5
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 182
2 HDMI HDMI 1.2, Type A “HDMI Out” on page 179
3 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
4 SYNC 4-pin 00B LEMO “SYNC (Video Sync In)” on page 181
5 USB USB 2.0, Type A
(power only)
“USB Power” on page 185
DSMC
2
Jetpack Expander
