RED WEAPON Series - Page 181

RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
COPYRIGHT © 2016 RED.COM, INC 955-0116_V6.1, REV-U | 181
COMPATIBLE CABLES
 790-0154: 3BNC-to-00 LEMO Sync Cable
 790-0187: 4-Pin 00 LEMO-to-Flying Lead
 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC)
 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC)
SYNC (VIDEO SYNC IN)
The following expanders feature a SYNC connector:
 DSMC
2
Jetpack Expander
 DSMC
2
Base I/O V-Lock Expander
The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals.
1
2
4
3
4-PIN 00B LEMO SYNC CONNECTOR
PIN SIGNAL DESCRIPTION DIRECTION
1 GROUND Common ground N/A
2 GPI General purpose input trigger; contact closure to Pin 1 In
3 TIMECODE SMPTE unbalanced timecode input In
4 GENLOCK Tri-level sync input In
NOTE: Mating connector is FGG.00.304.CLAD.
COMPATIBLE CABLES
 790-0154: 3BNC-to-00 LEMO Sync Cable
 790-0187: 4-Pin 00 LEMO-to-Flying Lead
 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC)
 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC)

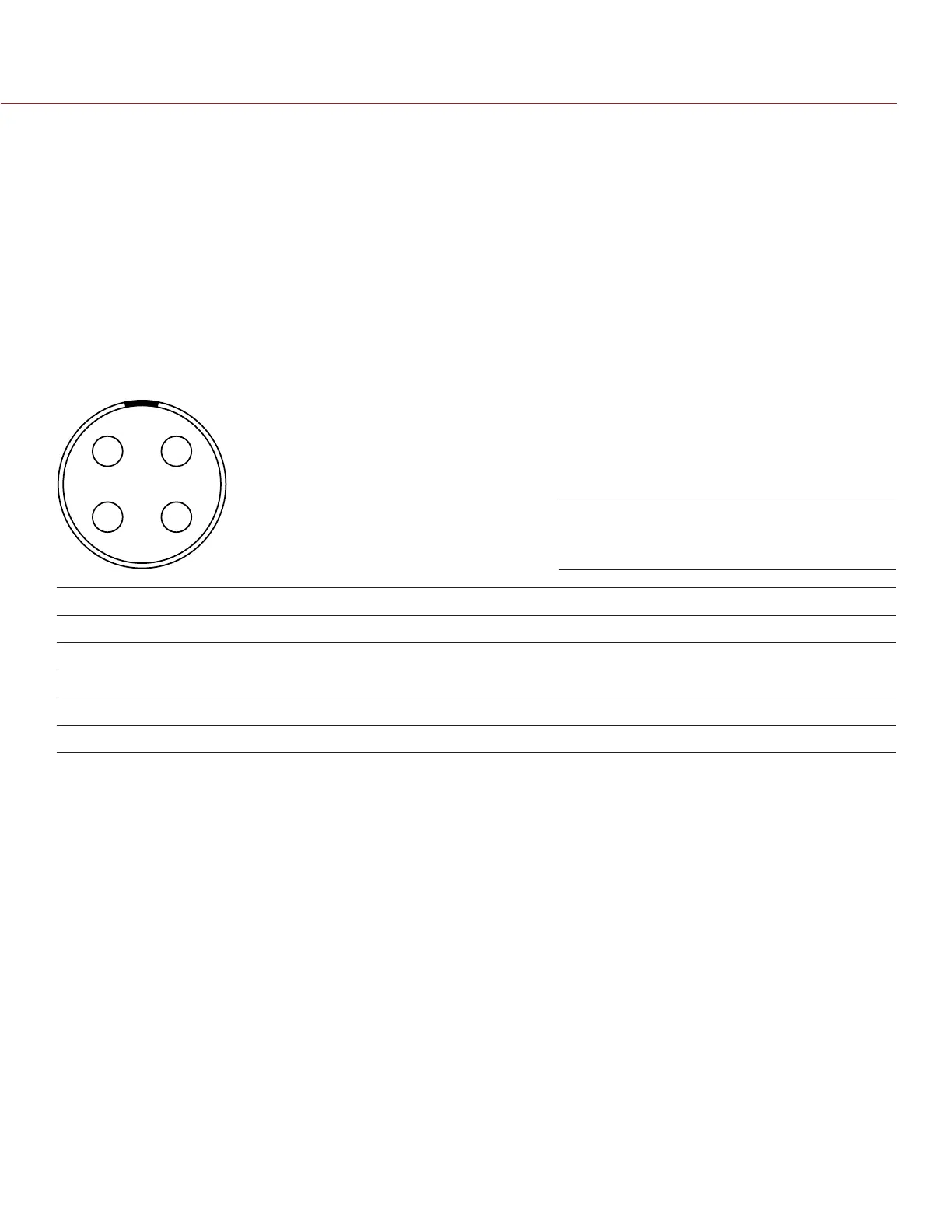

Front Face of the SYNC (Video Sync)
Connector (Looking at the Camera)
