RED WEAPON Series - DSMC 2 Base I;O V-Lock Expander

RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
COPYRIGHT © 2016 RED.COM, INC 955-0116_V6.1, REV-U | 175
DSMC
2
BASE I/O V-LOCK EXPANDER
2
3
4
5
6
7
8
9
1

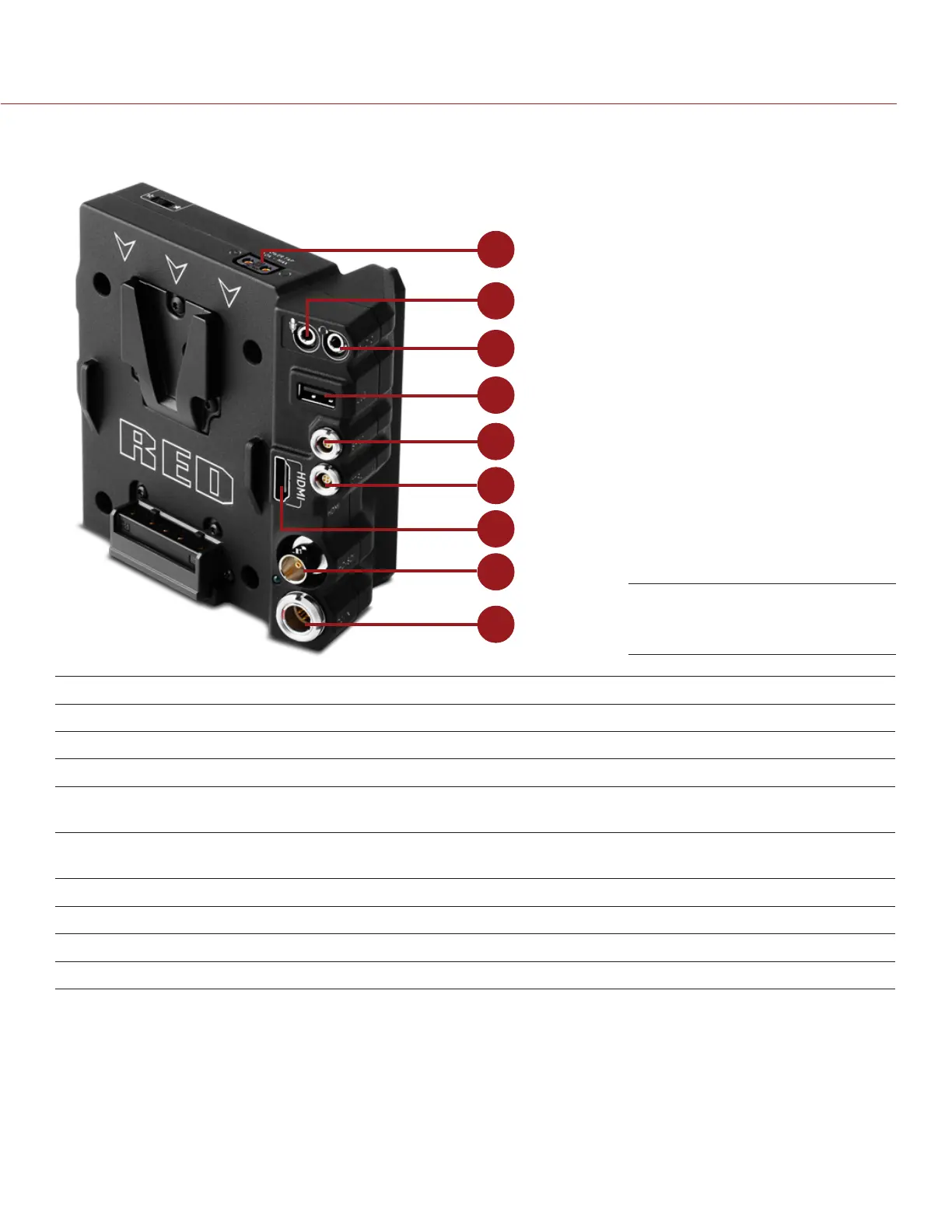

# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 AUX Power P-Tap 2-pin Female “AUX Power” on page 185
2 Stereo Microphone 3.5mm stereo “Stereo Microphone” on page 183
3 Headphone Jack 3.5mm stereo “Headphone” on page 183
4 USB Power USB 2.0, Type A
(power only)
“USB Power” on page 185
5 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with SYNC Trigger Button Circuit” on
page 180
6 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 182
7 HDMI
®
HDMI 1.2, Type A “HDMI Out” on page 179
8 HD-SDI BNC “3G-SDI (HD-SDI) Out” on page 178
9 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
DSMC
2
Base I/O V-Lock
Expander
