RED WEAPON Series - Expanders

RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
COPYRIGHT © 2016 RED.COM, INC 955-0116_V6.1, REV-U | 19
EXPANDERS
NOTE: Only one (1) expander module can be used at a time.
RED offers the following DSMC
2
expanders:
ITEM PART NUMBER

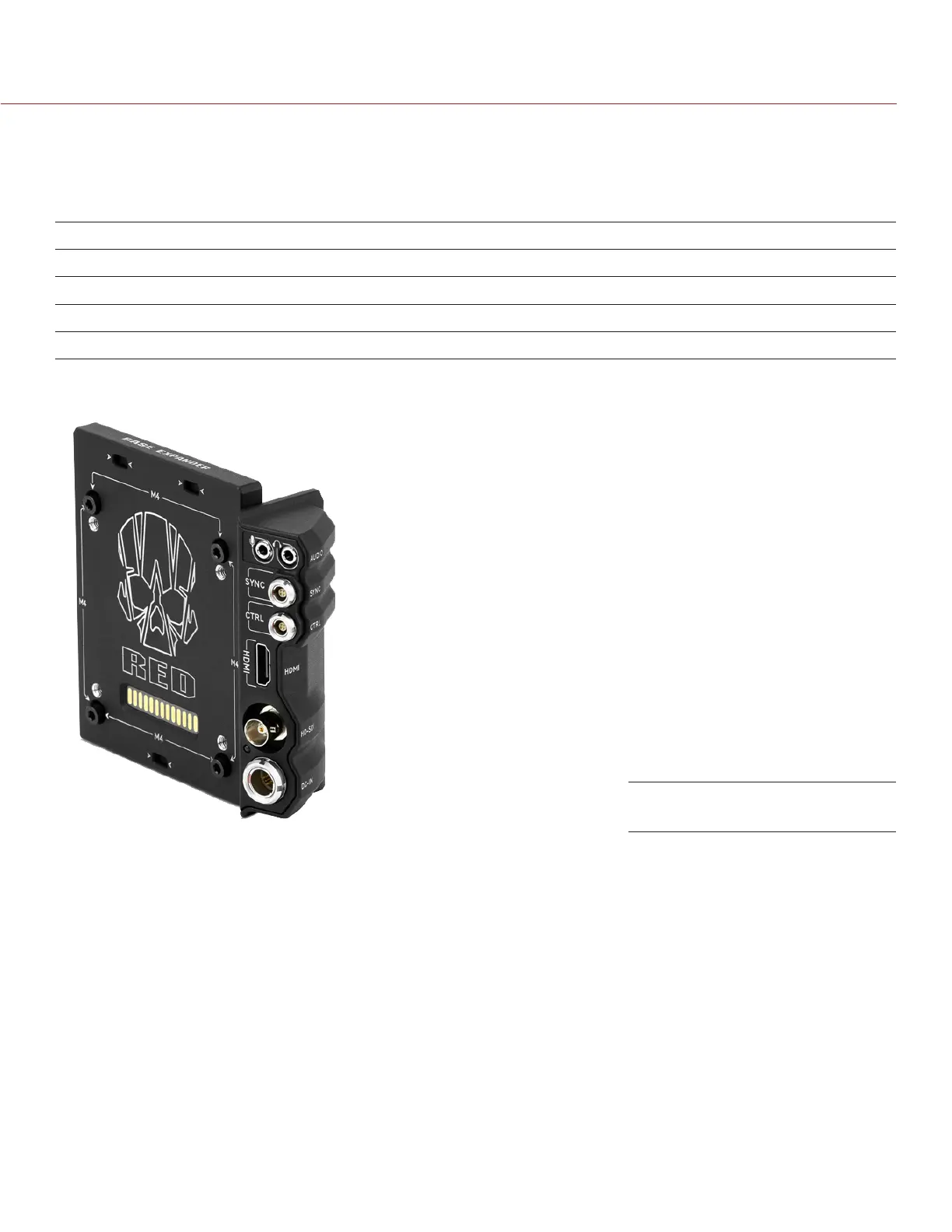

DSMC
2
Base Expander 720-0033
DSMC
2
REDVOLT Expander 720-0040
DSMC
2
Jetpack Expander 720-0039
DSMC
2
Base I/O V-Lock Expander 720-0045
DSMC
2
BASE EXPANDER
The DSMC
2
Base Expander is an ideal connector module for general input/output (I/O) needs. Manufactured
from lightweight and durable magnesium, this low-profile module mounts directly to the BRAIN and offers
interface connections for power (DC IN), HDMI, 3G-SDI (HD-SDI), CTRL and SYNC ports (for Timecode and
Genlock), as well as a 3.5mm microphone input and a 3.5mm line-level headphone out.
The DSMC
2
Base Expander also offers rear-mounting support for DSMC
2
-compatible battery and power
modules, such as the DSMC
2
REDVOLT
®
XL Module. The low profile DSMC
2
Base Expander offers a variety of
connectors and is ideal for run-and-gun and independent shooters.
NOTE: Only one (1) expander module can be used at a time.
DSMC
2
Base Expander
