RED WEAPON Series - DSMC 2 Base Expander

COPYRIGHT © 2016 RED.COM, INC
RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
955-0116_V6.1, REV-U | 174

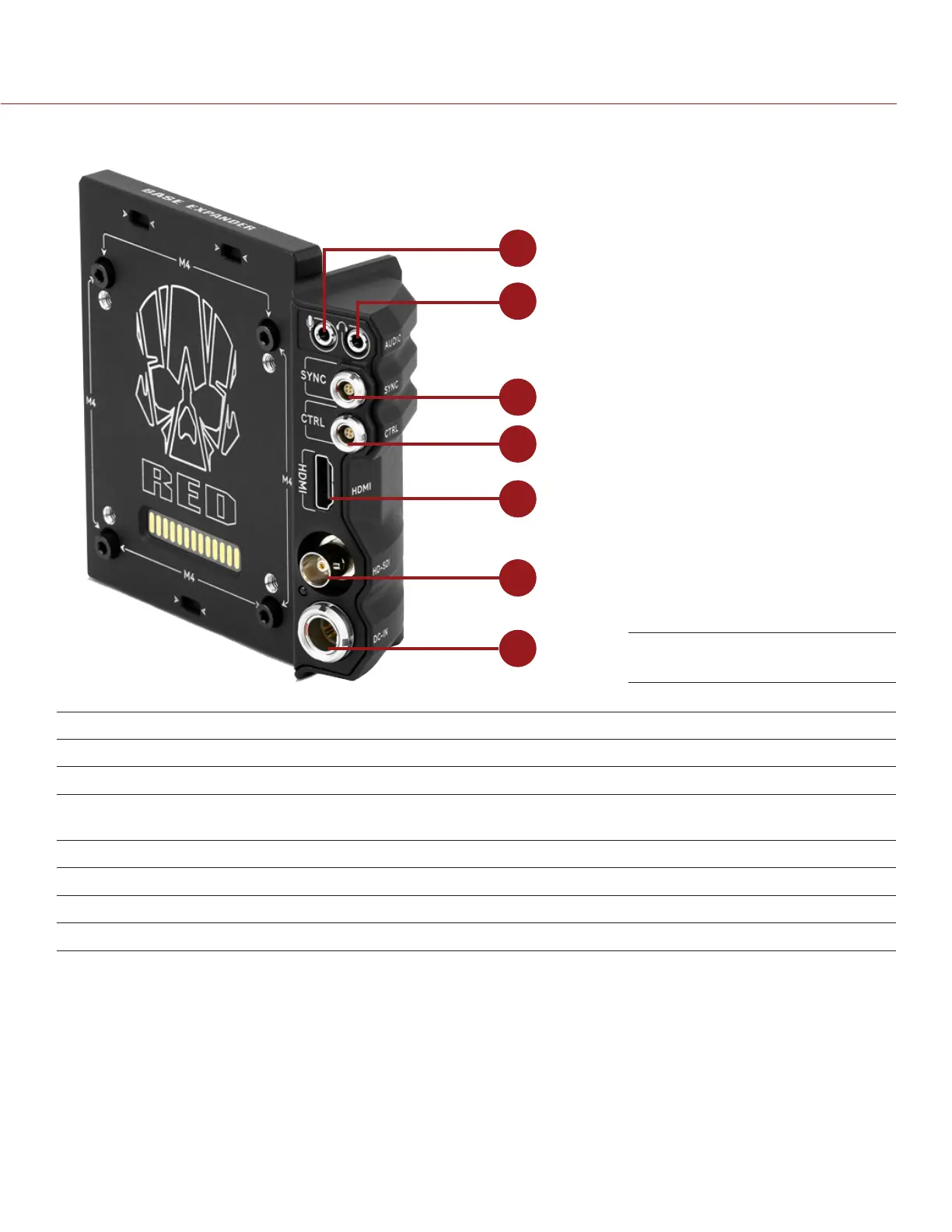

DSMC
2
BASE EXPANDER
7
6
5
4
3
2
1
# CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO...
1 Stereo Microphone 3.5mm stereo “Stereo Microphone” on page 183
2 Headphone Jack 3.5mm stereo “Headphone” on page 183
3 SYNC 4-pin 00B LEMO “SYNC (Video Sync In) with SYNC Trigger Button Circuit” on
page 180
4 CTRL 4-pin 00B LEMO “CTRL (RS232 Control)” on page 182
5 HDMI
®
HDMI 1.2, Type A “HDMI Out” on page 179
6 HD-SDI BNC “3G-SDI (HD-SDI) Out” on page 178
7 DC IN 6-pin 1B LEMO “DC IN (Power Input)” on page 184
DSMC
2
Base Expander
