RED DSMC OPERATION GUIDE: WEAPON/SCARLET-W
COPYRIGHT © 2016 RED.COM, INC 955-0116_V6.1, REV-U | 17
MEDIA BAY LEDS
2
1

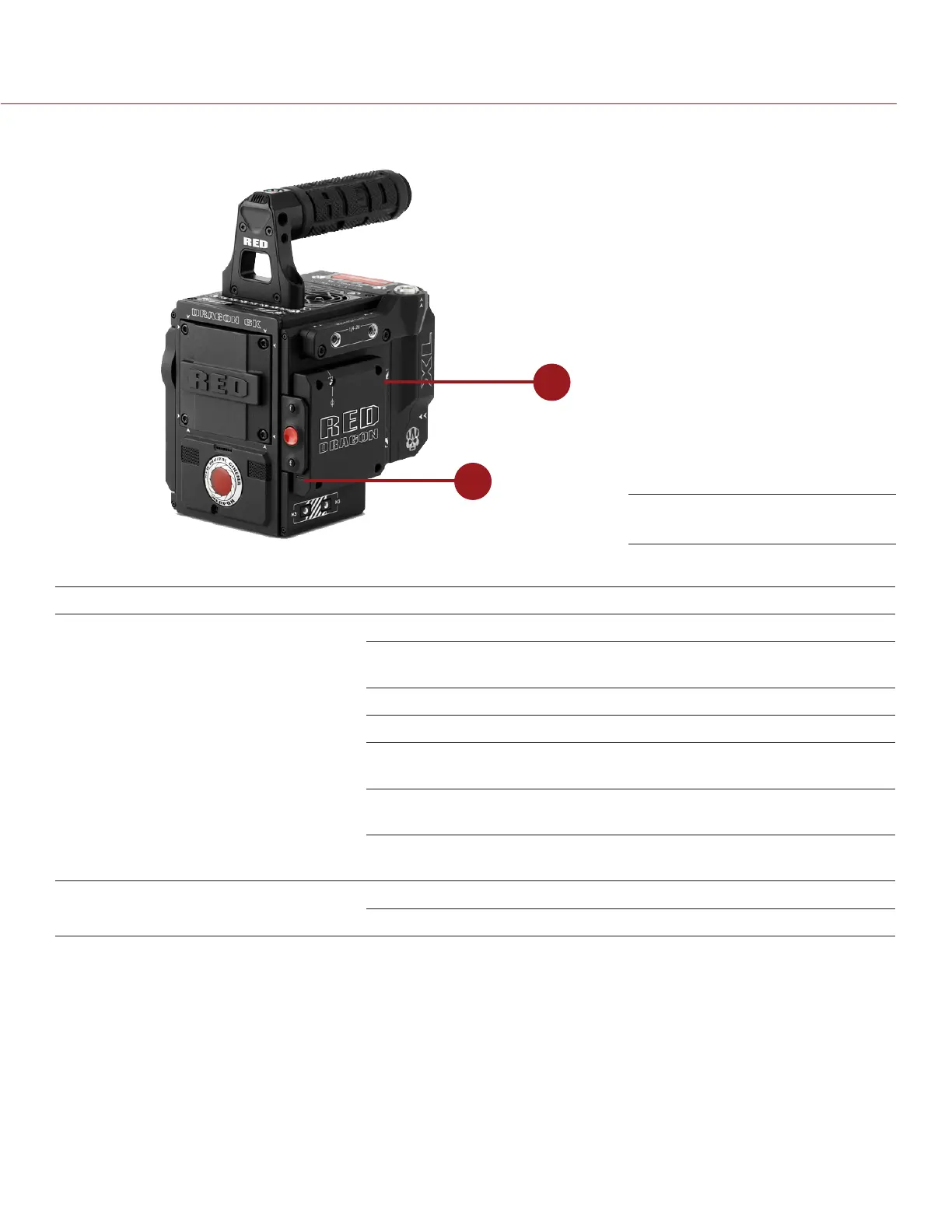

This section describes the LED functions for the media bay.
# LED COLOR/FLASHING DESCRIPTION
1 Media Status LED
(Back of media bay)
Off No media mounted
Green Preview; media mounted with > 10% of
media space available
Amber Record finalizing or playback mode
Amber flashing (slow) Formatting media
Red flashing (slow) Media mounted with > 5% and ≤ 10%
of media space available
Red flashing (fast) Media mounted with ≤ 5% of media
space available
Red Recording; media mounted with > 10%
of media space available
2 Record Status LED
1
Off Not recording, or media not mounted
Red Recording
1. For more information on how to enable/disable this LED, go to “Indicator” on page 103. If media is not mounted, this LED is off.
WEAPON Media Bay LEDs
