BRIGHTNESS
Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a
dimmer display.

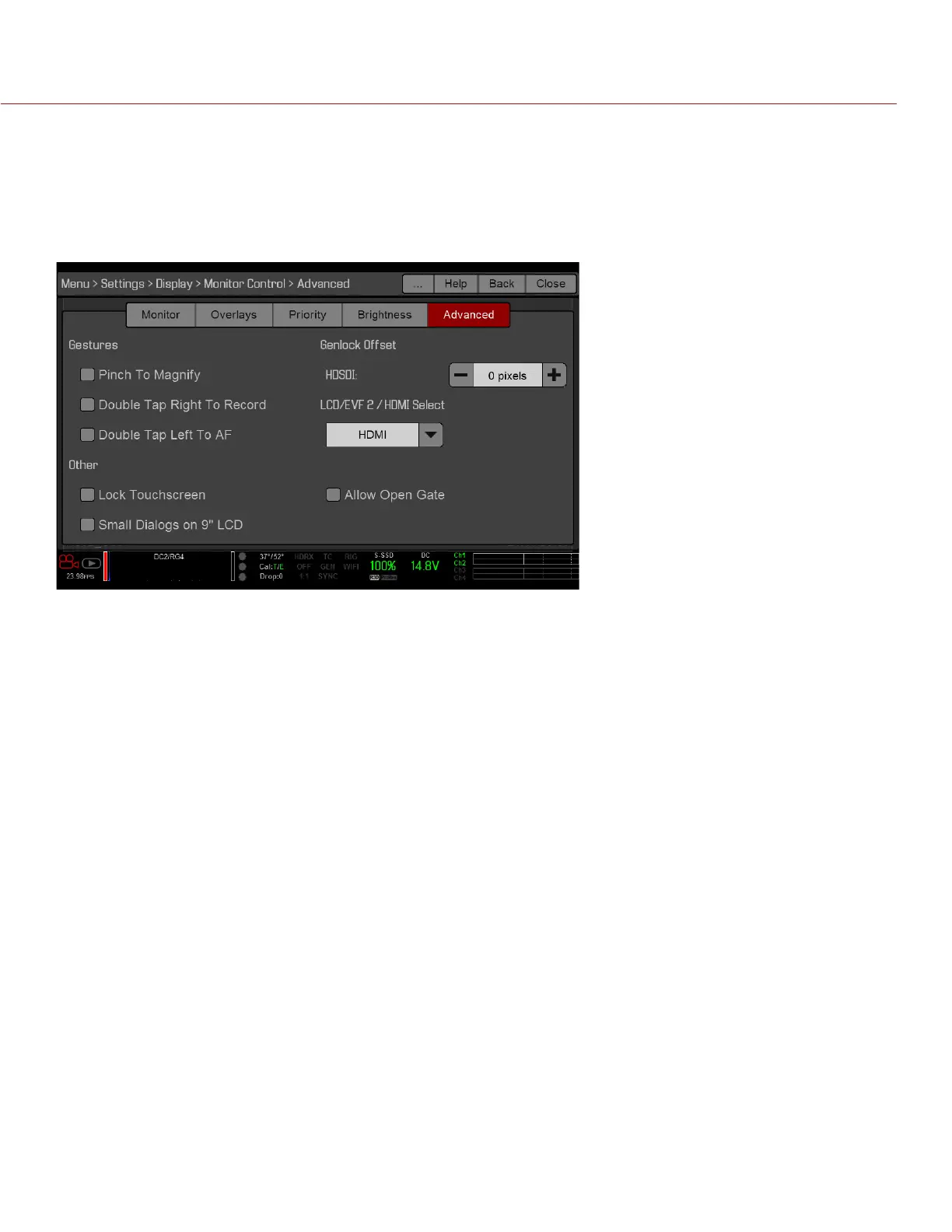

ADVANCED
Provides access to additional monitor settings.
GESTURES
 Pinch to Magnify: Move two (2) fingers apart or together to toggle 1:1 Magnify. For more information, go to
“Magnify” on page 63.
 Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record.
 Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus
when compatible lenses are used.
For a list of compatible lenses, go to “Lens Mounts and Lenses” on page 206.
OTHER
 Lock Touch Screen: Touchscreen control is locked. To unlock, tap the screen and follow the on-screen
instructions.
 Use Small Dialogs on 9" LCD: The dialogs on the RED Touch 9.0" LCD are smaller than the default dialogs.
GENLOCK OFFSET
NOTE: HD-SDI ports are only available on select DSMC
2
expanders. For more information, go to “Input/Output
Connectors” on page 198.
Offset the video of the HDSDI out to align it with the genlock signal:
 Negative offset: Advances the video, so the video reaches the switcher earlier than it would otherwise.
 Positive offset: Advances the video, so the video reaches the switcher later than it would otherwise.
LCD/EVF 2 / HDMI SELECT
NOTE: HDMI ports are only available on select DSMC
2
expanders. For more information, go to “Input/Output
Connectors” on page 198.
Select to enable either the secondary LCD/EVF port on the camera or the HDMI port on an expander. The
secondary LCD/EVF port and the HDMI port cannot be used at the same time.
