CHECKING STEERING SYSTEM OPERATION
Your outboard features a mechanical-hydraulic rack
style steering system. e unit utilizes valves which
permit hydraulic uid to pass through the system
allowing the steering arm at the outboard to turn the
vessel to port or starboard. is check valve cluster is
located behind the steering wheel. e hardware at both
the helm and engine ends must be checked regularly for
tightness, lubrication, and leaks. Check the steering
system for full steering to port and starboard before
disembarking. Typical hydraulic pump shown below. It
is located in the a Lazerete storage area.
Refer to your outboard motor operator’s manual for
adding uid to the pump and type required.

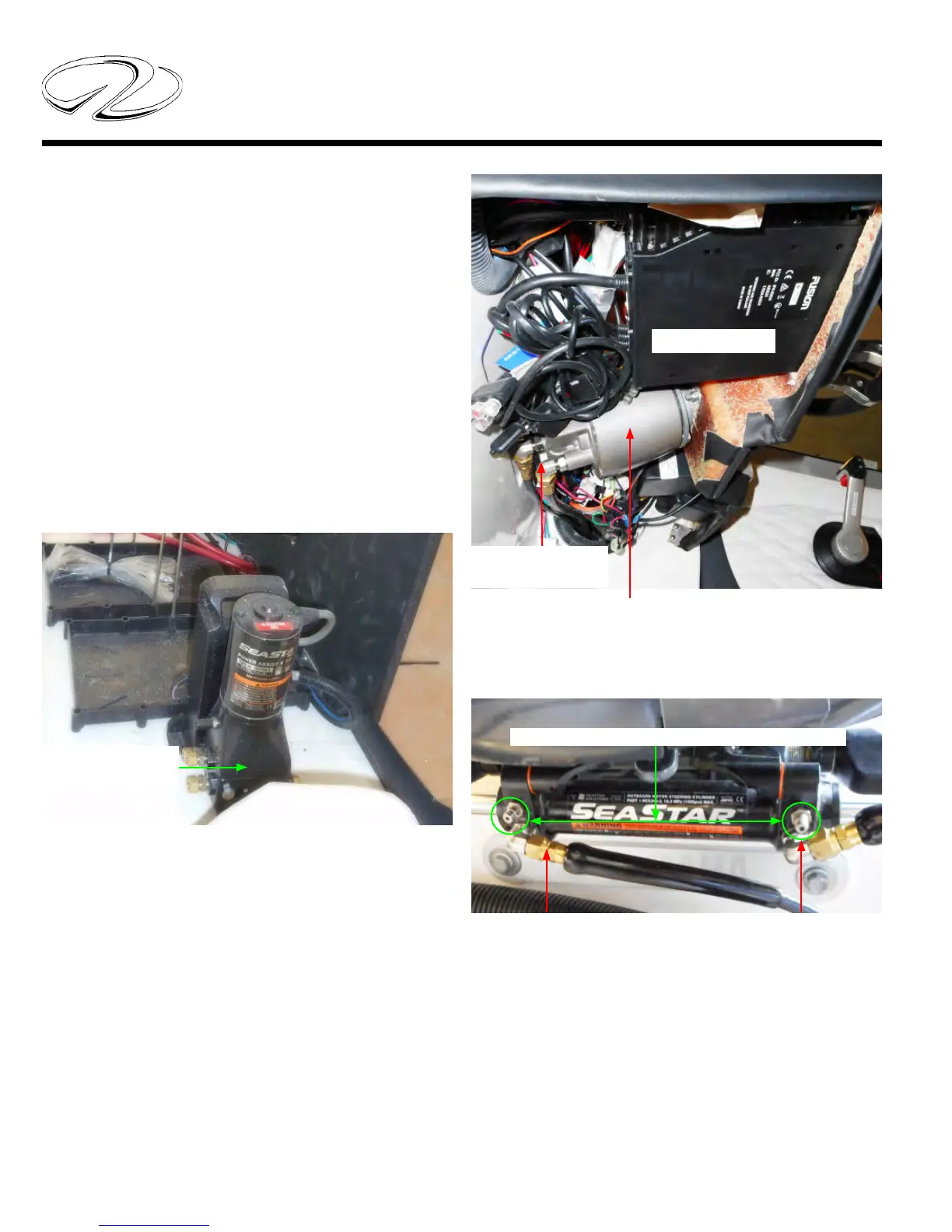

HYDRAULIC RACK STEERING CLUSTER
CHECK HOSE
CONNECTIONS
UNDER DASH
TYPICAL HYDRAULIC STEERING PUMP
STEERING HARDWARE & HOSES AT ENGINE
HYDRAULIC SYSTEM BLEED FITTINGS
CHECK HOSE
CONNECTIONS
