Regency P36E-NG4 - Regency Tripoli Screen Door Series Framing Note

P36E-4 Zero Clearance Direct Vent Gas Fireplace 17
When installing the optional Tripoli Screen Door Series, a non-combustible material 12" (305mm) above the unit and 6" (153mm) on each side
must be used (see Diagram 2). For complete framing details see page 57.
The Tripoli Screen Door Series also requires steel stud framing above and on each side of the unit (refer to Diagram 1).
REGENCY
®

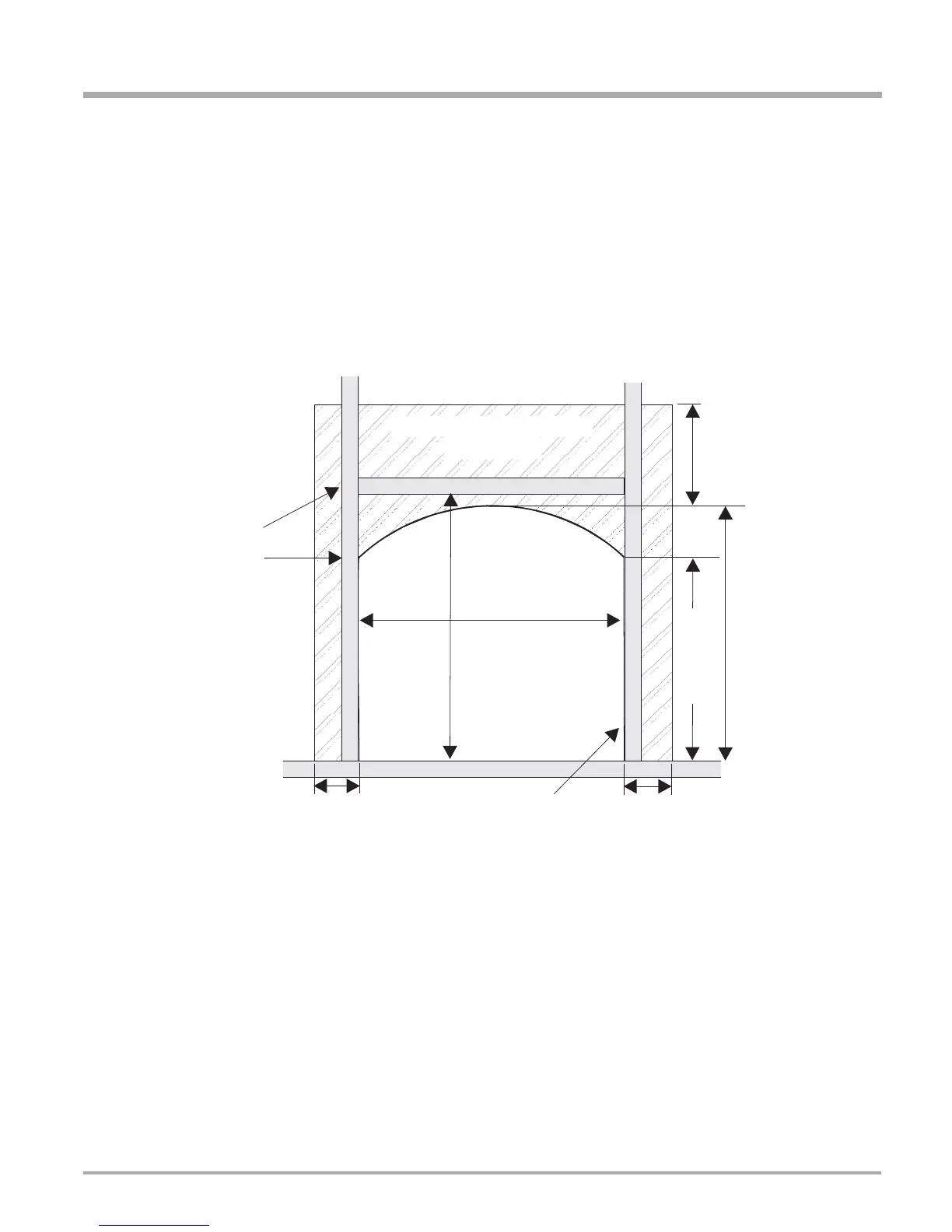

TRIPOLI SCREEN DOOR SERIES FRAMING NOTE
Steel
Stud
Steel
Stud
Min. 12"
(305mm)
Min. 6"
(153mm)
Min. 6"
(153mm)
P36
36-1/4"
(921mm)
36-1/4"
(921mm)
Framing & Mantle/Side Materials
Arch Screen
Non - Combustible
Material
27-1/2”
(699mm)
30 -7/8”
(784mm)
P36D
376-1/4"
(946mm)
Diagram 1
