Regency P36E-NG4 - AC Power Adaptor Installtion (for Surefi Re System)

P36E-4 Zero Clearance Direct Vent Gas Fireplace 49
An optional AC power adaptor may be installed as a constant power source for the SureFire system.
NOTE: AC power adaptor is not required when using GTMF Remote
IMPORTANT: Recommend removing the 4-AA batteries in the SureFire receiver.
This will avoid battery leakage and power drainage. 4-AA Battery pack may be re-installed into receiver during power outages.
NOTE: For all Gas Fireplaces 120 volt power must be brought to the receptacle box inside the ERWWRPRIWKH¿UHER[(provided with the unit).
All Freestanding Gas Stoves & Gas Inserts will need a receptacle box located outside / near the unit
so that the AC Power Adaptor can be plugged in.

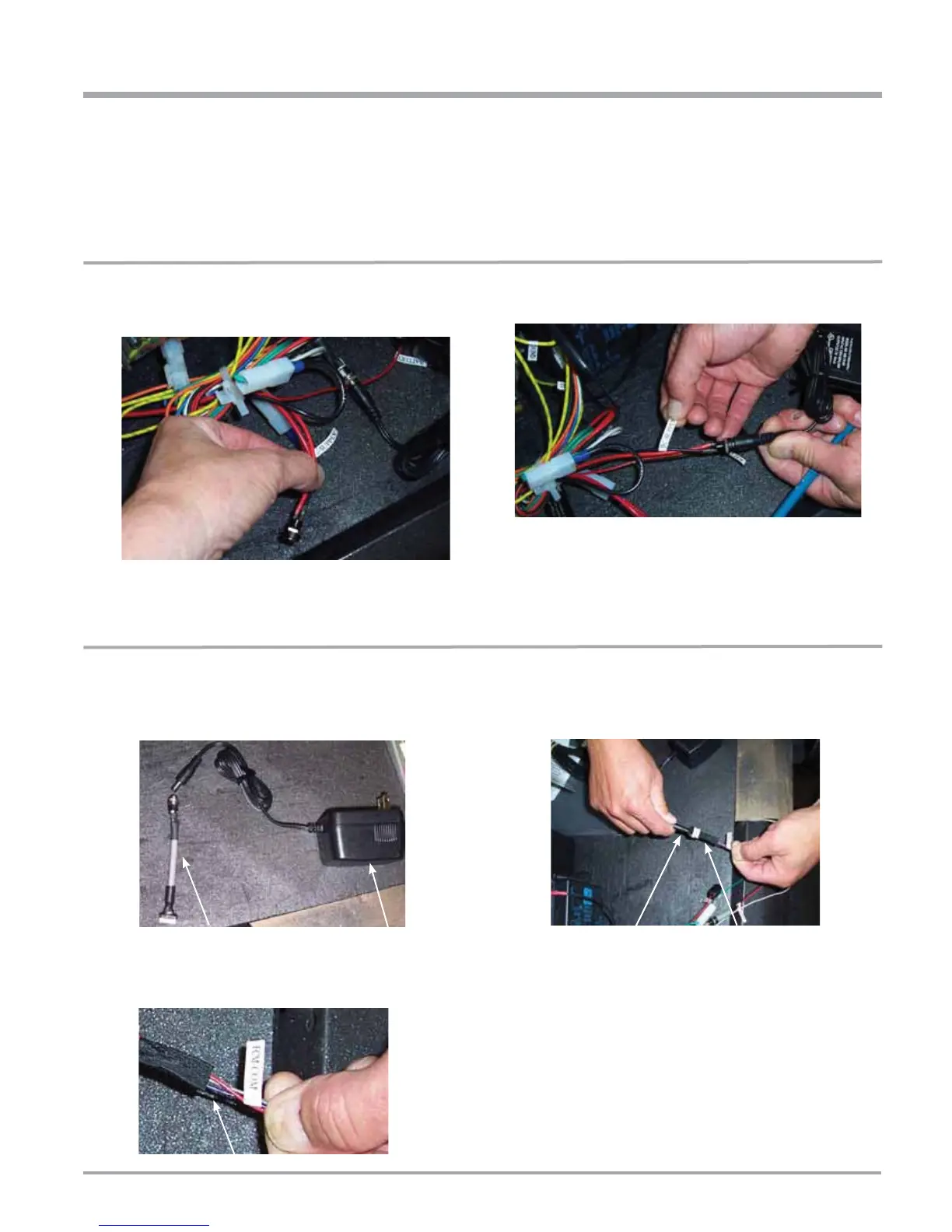

INSTALL AC ADAPTOR WITH SUREFIRE WALL SWITCH ONLY - (WITHOUT REMOTE)
INSTALL AC ADAPTOR WITH SUREFIRE PROFLAME GT / GTM REMOTE
1) Locate “DC Supply” tag on wire harness. For location in unit
see remote installation page in owners manual.
2) Connect the male end from AC adaptor to the female end
tagged “DC Supply” on wiring harness in unit.
2)
Locate FCM - COM connector on the Remote wire harness -
see manual for location in unit.
3)
Plug in wire adaptor to FCM - COM connector - be careful not
WRGDPDJHHQGV7KLVRQO\¿WVRQHZD\'R1RW)RUFHLQZURQJZD\
3)
Plug AC adaptor into 120V wall outlet (or into 120V receptacle if
LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[
4) Neatly tuck any loose AC Power Adaptor wires neatly underneath /
inside the appliance.
Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[
(keep wires away from the heat as much as possible).
FCM - COMAC adaptor
wire adaptor
1) Connect the male end of the AC adaptor to the female end of the
wire adaptor (supplied with AC adaptor) together as shown
.
AC adaptor
Wire adaptor
FCM
-
COM
4) Plug AC adaptor into 120V wall outlet (or into 120V receptacle if
LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[
5) Neatly tuck any loose AC Power Adaptor wires neatly underneath /
inside the appliance.
Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[
(keep wires away from the heat as much as possible).
This method also applies for models, HZ30E - HZ40E - L390E - HZI390E
AC Power Adaptor Installation (For Surefi re System)
