P36E-4 Zero Clearance Direct Vent Gas Fireplace
56

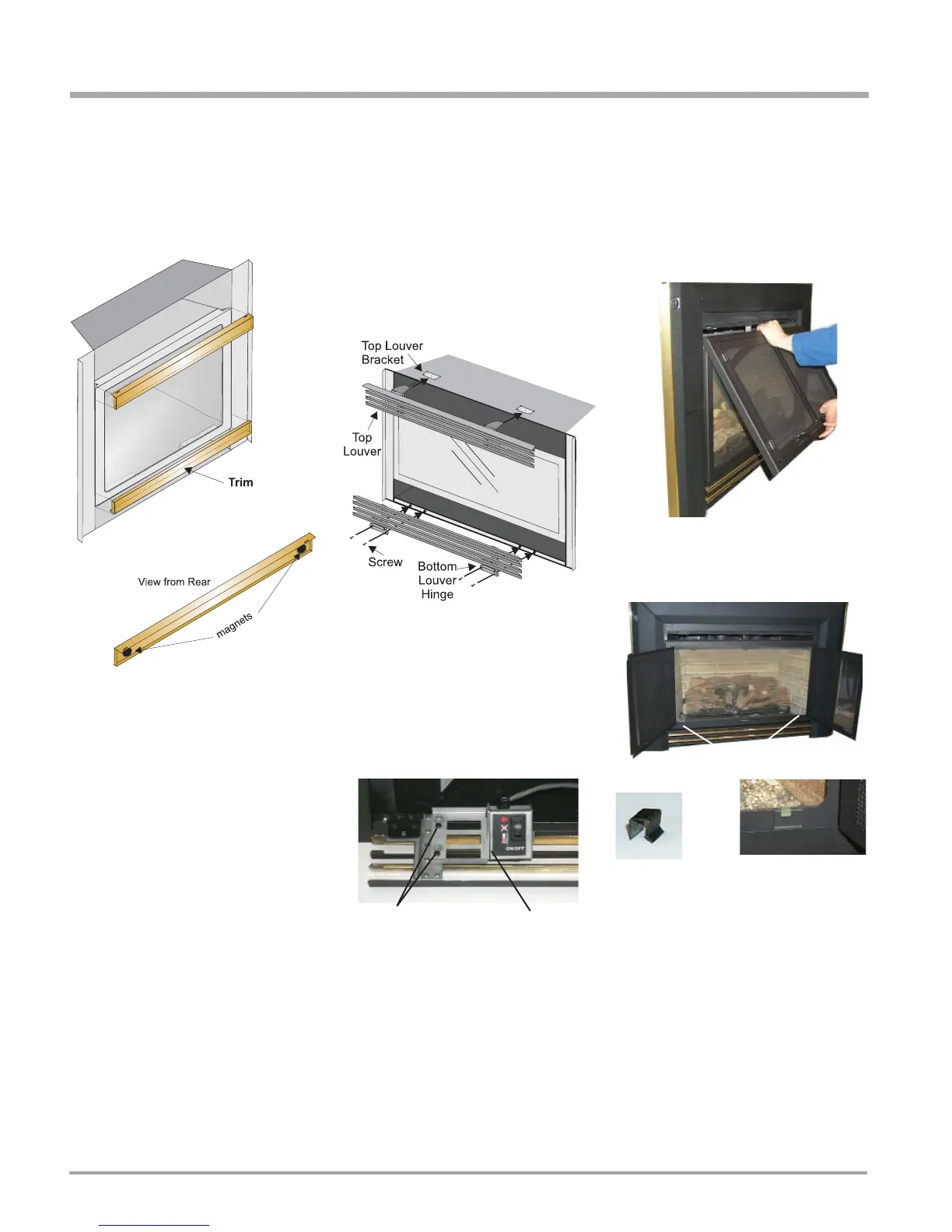

DOUBLE SCREEN
DOOR
1) Pull out the top louver.
2) Center the screen door and hook over the
fl ush door.
Clip locations
Clip installed on right side.
3) Open the screen door(s) and secure the
screen door to the fl ush door front with 2
clips on the bottom left and right side.
REGENCY
®
OPTIONS
FLUSH TRIM
Attach the round magnets to the back of the top
trim piece and to the bottom trim piece, then
attach trim to the top and bottom of fl ush door.
FLUSH LOUVERS
1) Install the top louver by sliding the two
bracket clips into the brackets located
underneath the top of the fi rebox.
2) The bottom louver has a hinge that is
attached (2 screws per hinge) to the lip on
bottom of the unit.
3) Open the bottom louver. Pull the Burner
ON/OFF control box from inside the bottom
of the fi replace and position the slots in the
bracket over the 2 screws on the left side of
the bottom louver. Push down to lock into
place. Tighten the screws.
Burner ON/OFF
control box
Screws on
louver bracket
Note: Top and
bottom louvers
are different.
