P36E-4 Zero Clearance Direct Vent Gas Fireplace
44

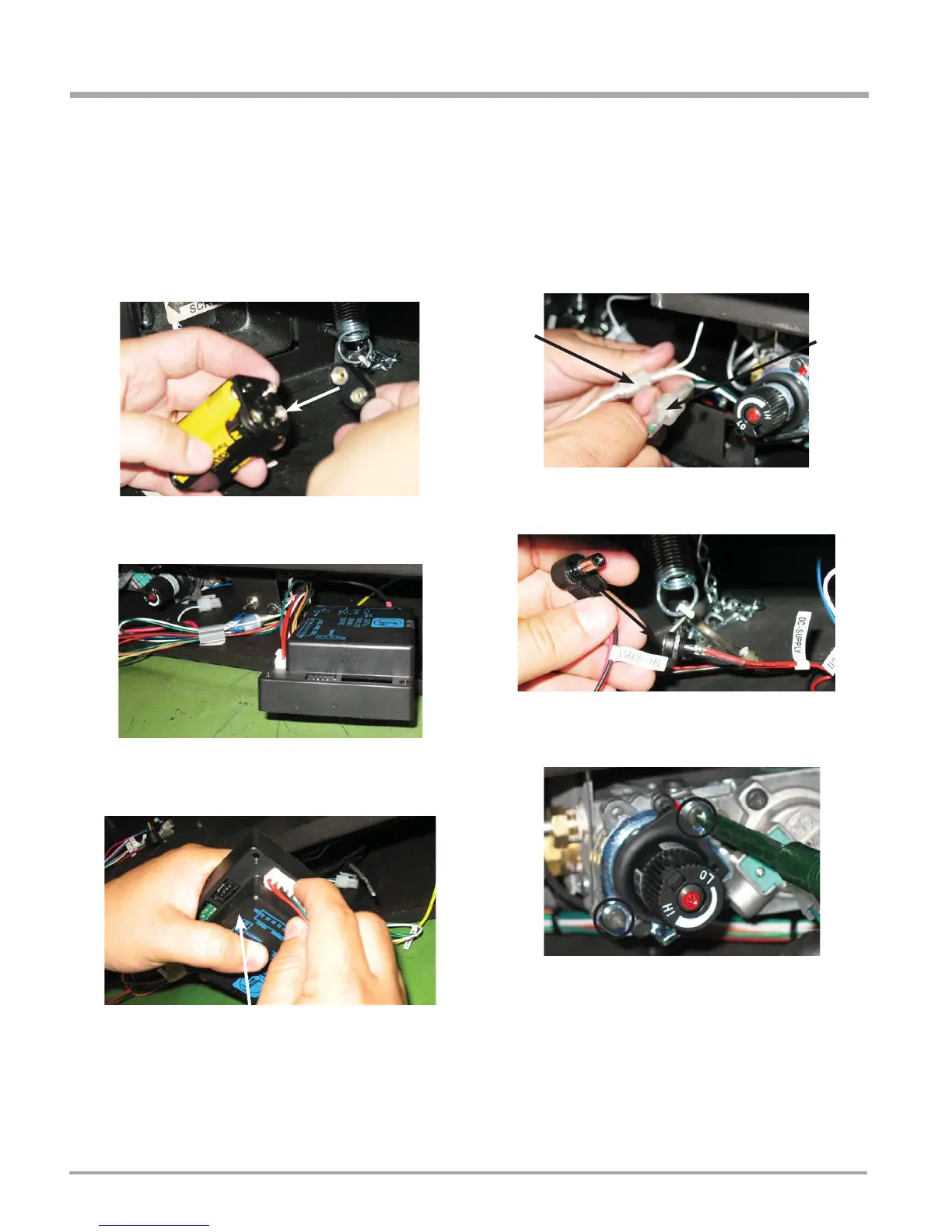

GTM REMOTE INSTALLATION
6) Identify wires in the GTM/GTMF remote wiring harness.
(see wiring diagram.)
7) Connect the TPTH and TH wires - green to green and white to
white as shown below.
9) Remove the hi/lo knob if installed by removing 2 screws as
shown below.
8) Plug in receiver DC supply wire - as shown below.
5) Disconnect wire harness, ground wire and spark wire from DFC.
DFC
4) Remove DFC (digital fi rebox control box) from the fl oor of the unit.
1) Shut off the gas supply and disconnect all power to the unit.
2) Remove the louvers, bay door or faceplate if installed.
3) Disconnect battery pack - located on the fl oor of the unit, as shown
below and discard.
TPTH
TH
INSTALLATION
