P36E-4 Zero Clearance Direct Vent Gas Fireplace 63
HAMPTON
®
OPTIONS
HAMPTON
®

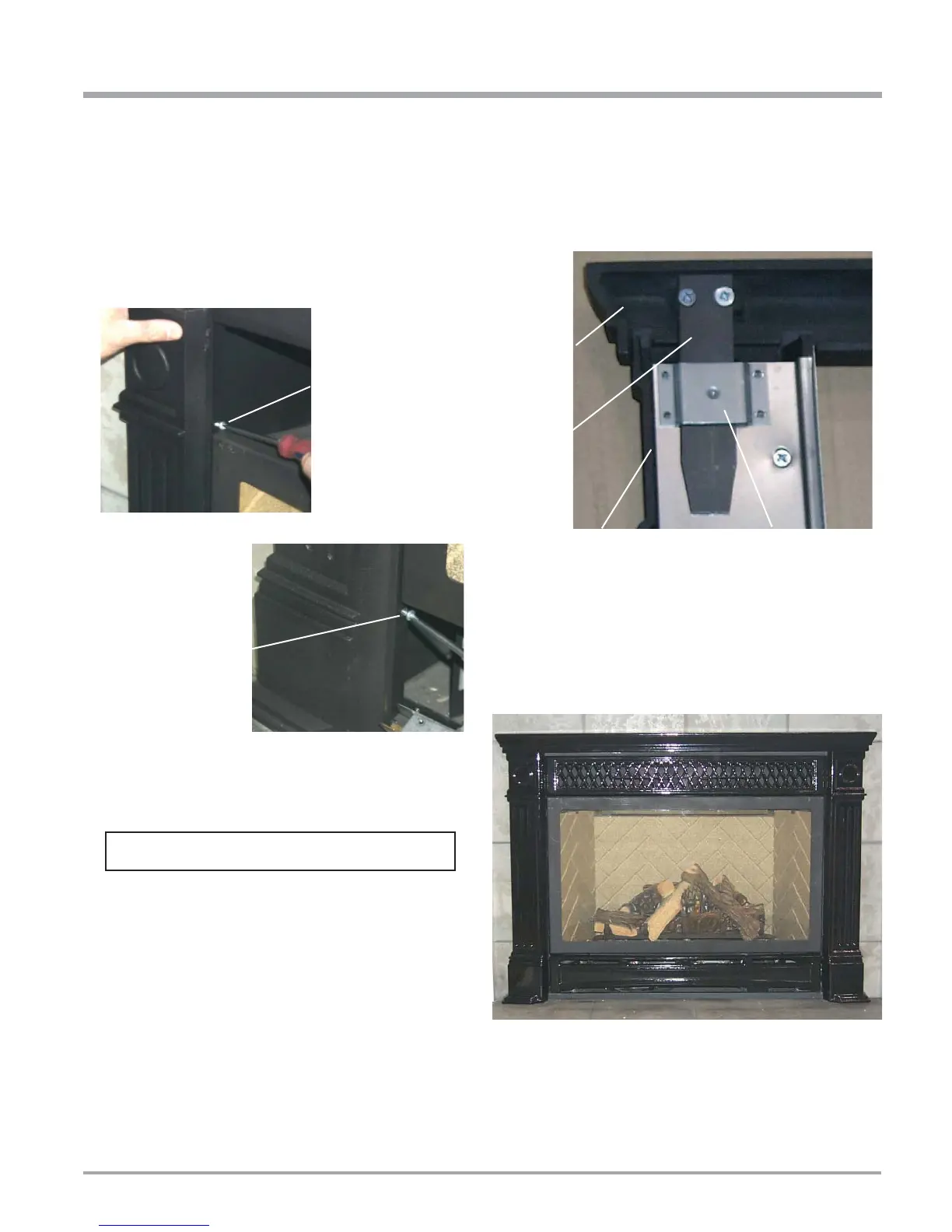

CAST FACEPLATE
1) Remove top louver.
2) Open bottom louver.
3) Install the left side faceplate by pushing in at the side of the fi rebox
and line up with top and bottom holes on side. Secure with screws,
tighten loosely.
Secure top of
faceplate with screw.
4) Repeat step 3 for the right side faceplate.
Secure bottom of
faceplate with screw.
5) Slide top piece of faceplate into side faceplates by fi tting mounting
plates into brackets.
6) Push in both side faceplate pieces and completely tighten
screws.
7) Re-install top louver.
8) Close bottom louver.
Side piece
Faceplate
(Back View)
Bracket on back of
side faceplate.
Top piece
Faceplate
NOTE: Do not push in side faceplates all the
way, allow for room to place the top faceplate.
Mounting
Plate
To Next Page
