P36E-4 Zero Clearance Direct Vent Gas Fireplace 37
1) Undo the bottom 2 door latches and open and remove glass door.
Remove logs.
Note: The logs must not be in the unit.

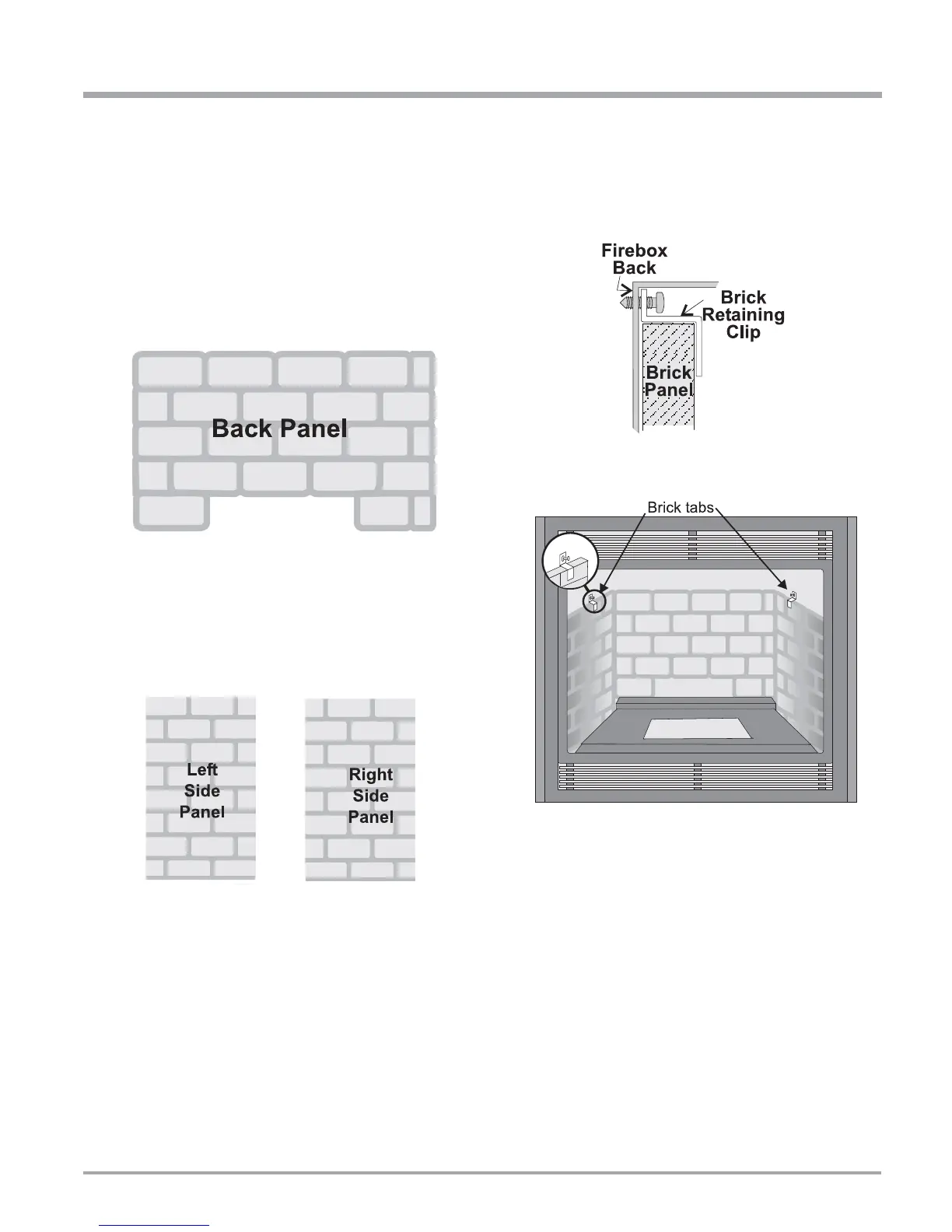

2) Insert the back brick panel fi rst by carefully slipping it between the
back wall of the fi rebox and the rear log bracket.
3) Put the side panels in next. Slide them in from the front and push
them fl at up against the wall. Be very careful not to scratch them on
the fi rebox hardware.
4) Install the 2 brick retaining clips, one on each side.
OPTIONAL BRICK PANELS
INSTALLATION
