DISASSEMBLY AND ASSEMBLY
15
Section 4 Disassembly and Assembly
The following will assist you in disassembling the T-250 for servicing:

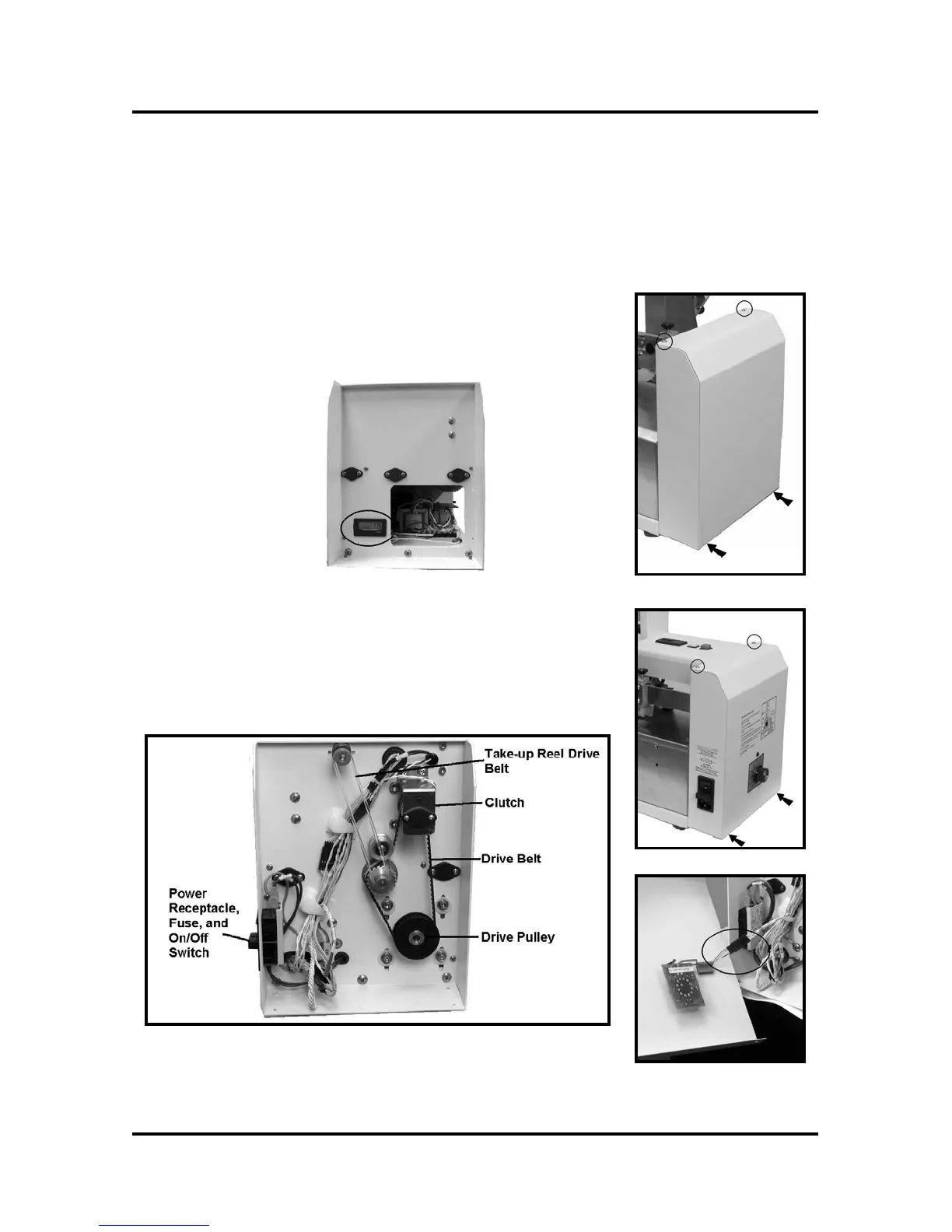

Removing Covers
1. Unplug the machine, then remove the four screws that
attach the front cover to the frame and remove the cover.
Under the front cover, you will find the non-resettable
counter.
2. Remove the four screws that attach the rear cover to the
frame unplug the Tab Sensitivity Adjustment Switch and
remove the cover. Under the rear cover you will find the
drive pulleys, drive belt, clutch, power receptacle and
take-up reel drive belt
To Next Page
