DISASSEMBLY AND ASSEMBLY
16

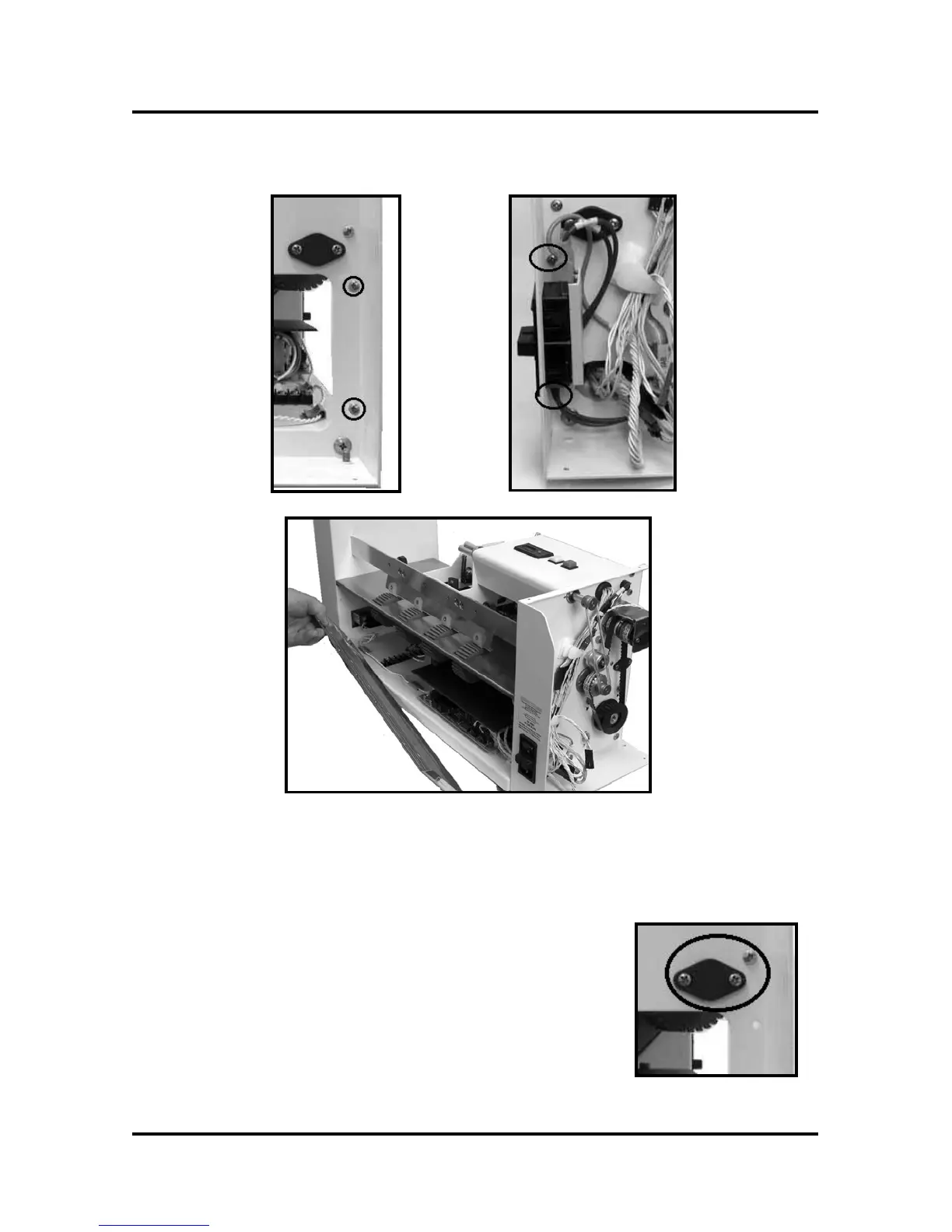

3. Remove the two screws from the operator side and the two screws from the non-
operator’s side of the machine and remove the left hand cover.
4. Replace in reverse order.
Replacing Feed Rollers
1. Unplug the machine, then remove the Front, Rear, and Left Hand Covers.
2. Remove the two Track Roller assemblies.
3. Remove the Bearing and Bearing Cap from under the
front cover. Then remove the screw under the Front
cover that holds the top plate in place.
4. Remove the screw under the Rear cover that holds the
top plate in place. Raise the Center Plate so that it clears
the feed rollers.
To Next Page
