DISASSEMBLY AND ASSEMBLY
20

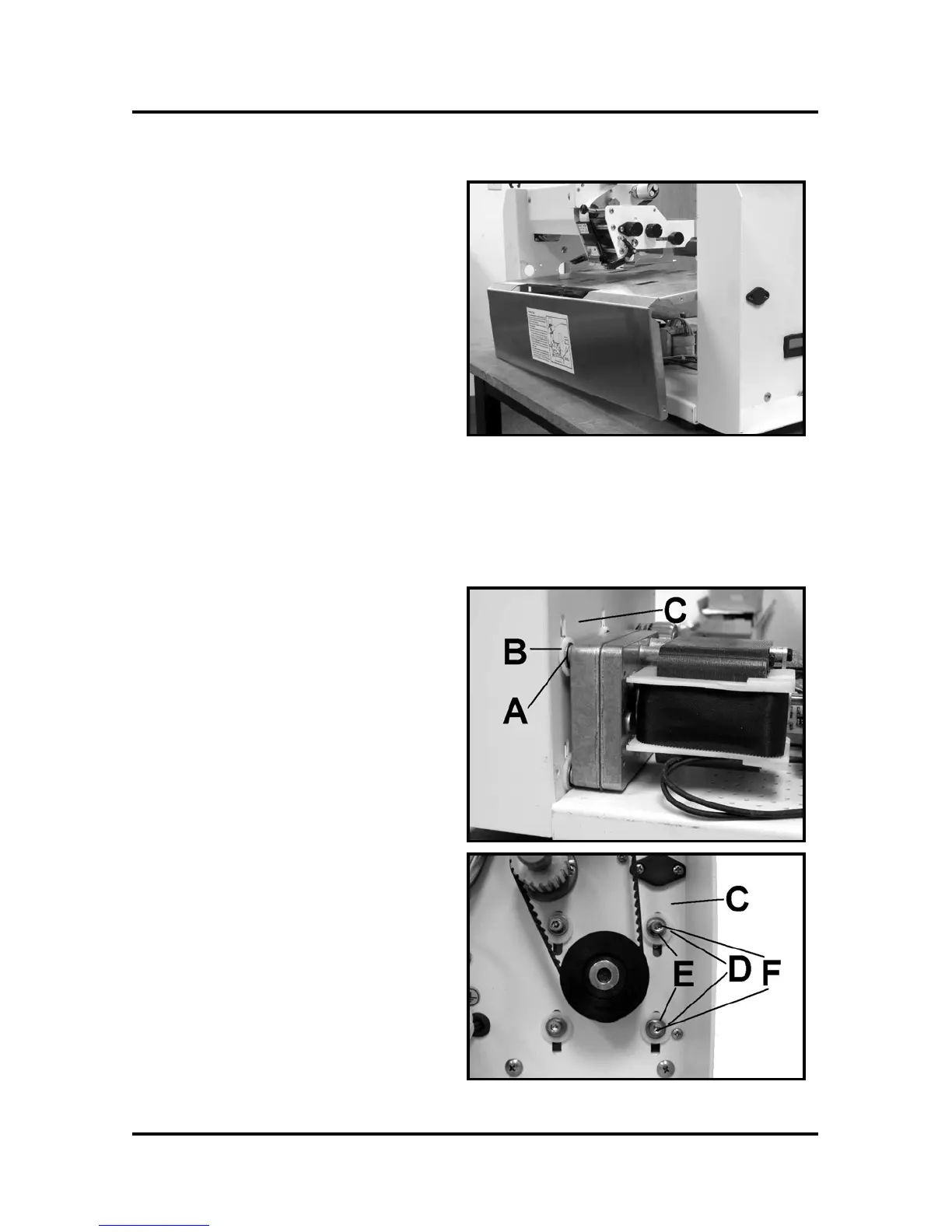

Replacing the Drive Motor
1. Remove the Roller assemblies
using the instructions above.
2. Remove the Center Plate from the
exit end of the machine.
3. Loose the four allen screws that attach the motor to the side frame.
4. Remove the drive belt, and then remove the drive pulley.
5. Unplug the motor from the wiring harness and remove the four allen screws that
attach the motor to the side frame.
6. Remove the motor.
7. Replace in reverse order.
NOTE: The motor is held in place
with the allen screws. Between the
motor and the frame are metal
washer [A], a plastic washer [B],
the frame [C], another plastic
washer [D], another metal washer
[E], and then the allen screw [F]. It
is important that all of these are
replaced to insure quiet operation
of the tabber.
