DISASSEMBLY AND ASSEMBLY
19
11. Replace the bearings, pulleys, and belts and adjust the motor drive belt tension.
Test run the machine, then replace the side covers.

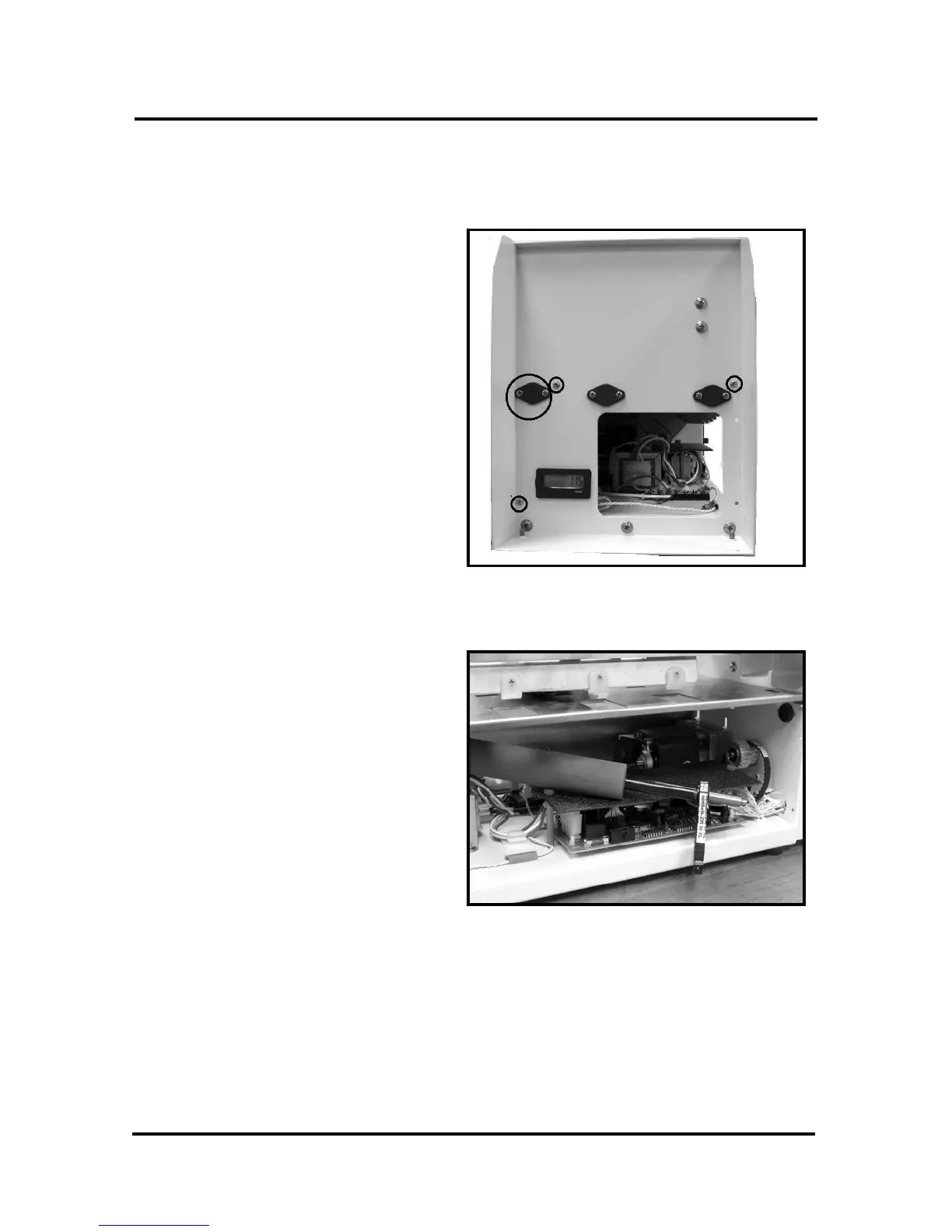

Replacing the Front Feed Roller
1. Unplug the machine, then remove
the Front, Rear and Left Hand
covers.
2. Remove the two Track Roller
Assemblies and the Applicator
Head Roller.
3. Remove the Bearing and Bearing
Cap from under the front cover.
Then remove the screw under the
Front cover that holds the Center
Plate in place.
4. Remove the screw under the Rear
cover that holds the Center Plate
in place. Raise the Center Plate
so that it clears the feed rollers.
5. Pull the Center Plate forward to clear the front roller.
6. Remove the Bearing and Bearing
Cap for the Front Roller from the
rear of the machine.
7. Slide the Front Roller toward the
operator side of the machine,
disconnect the drive belt and then
remove the roller from the feed
end of the machine as shown.
8. Reassemble in reverse order. Make sure that the drive belt is in place before
installing the Bearings and End Caps.
