DISASSEMBLY AND ASSEMBLY
18

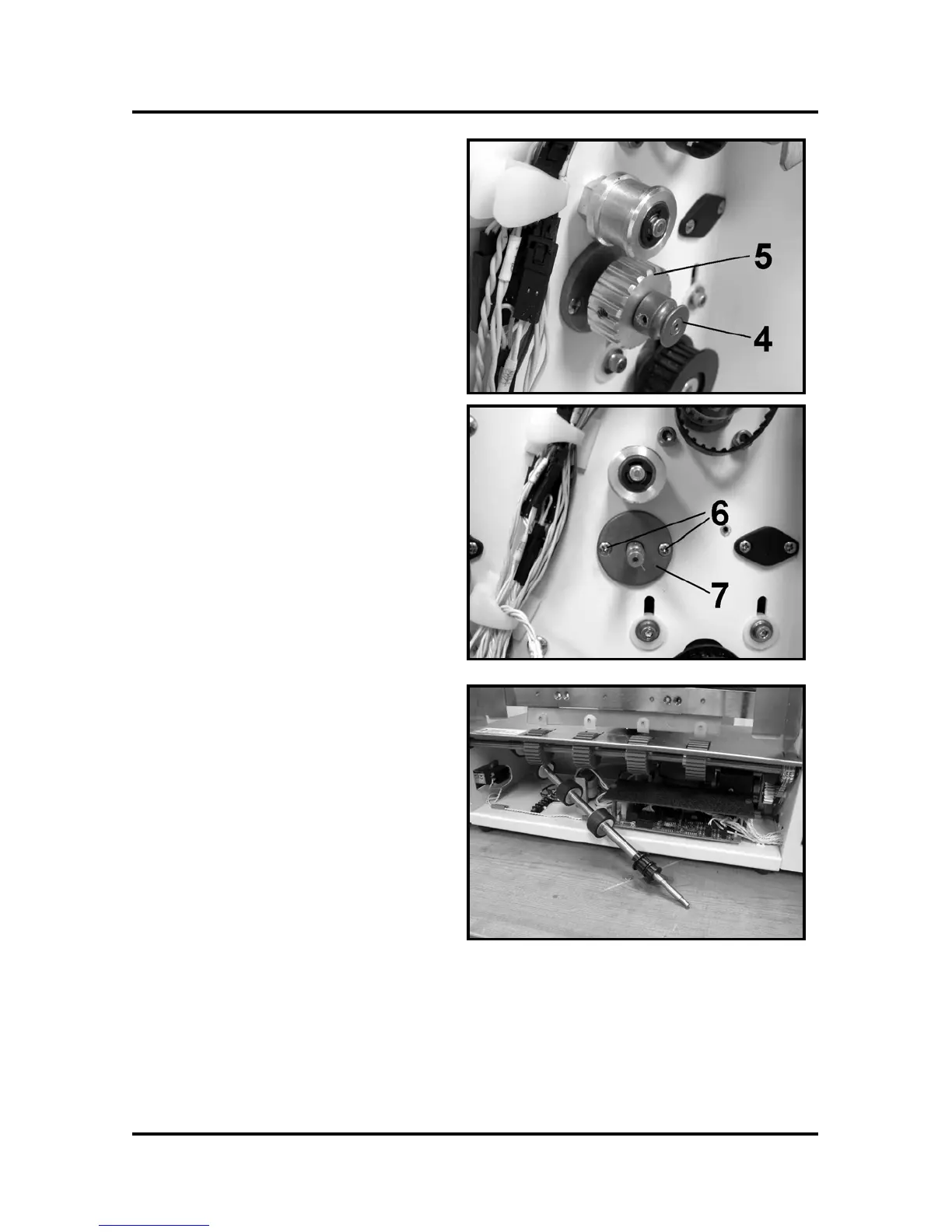

6. Remove the Paper Take-up Spool
[4] and Drive Pulley.
7. Remove the two screws [6] and
the Bearing Housing [7].
8. Push the roller and shaft toward
the operator side of the machine
and then remove it from the feed
end as show.
9. Remove the rollers from the shaft and replace.
10. Replace the rollers and shaft in the machine.
NOTE: Make sure that the two belts, the one that drives the front feed roller
and the one that drives the main feed roller are in place before replacing the
bearings.
