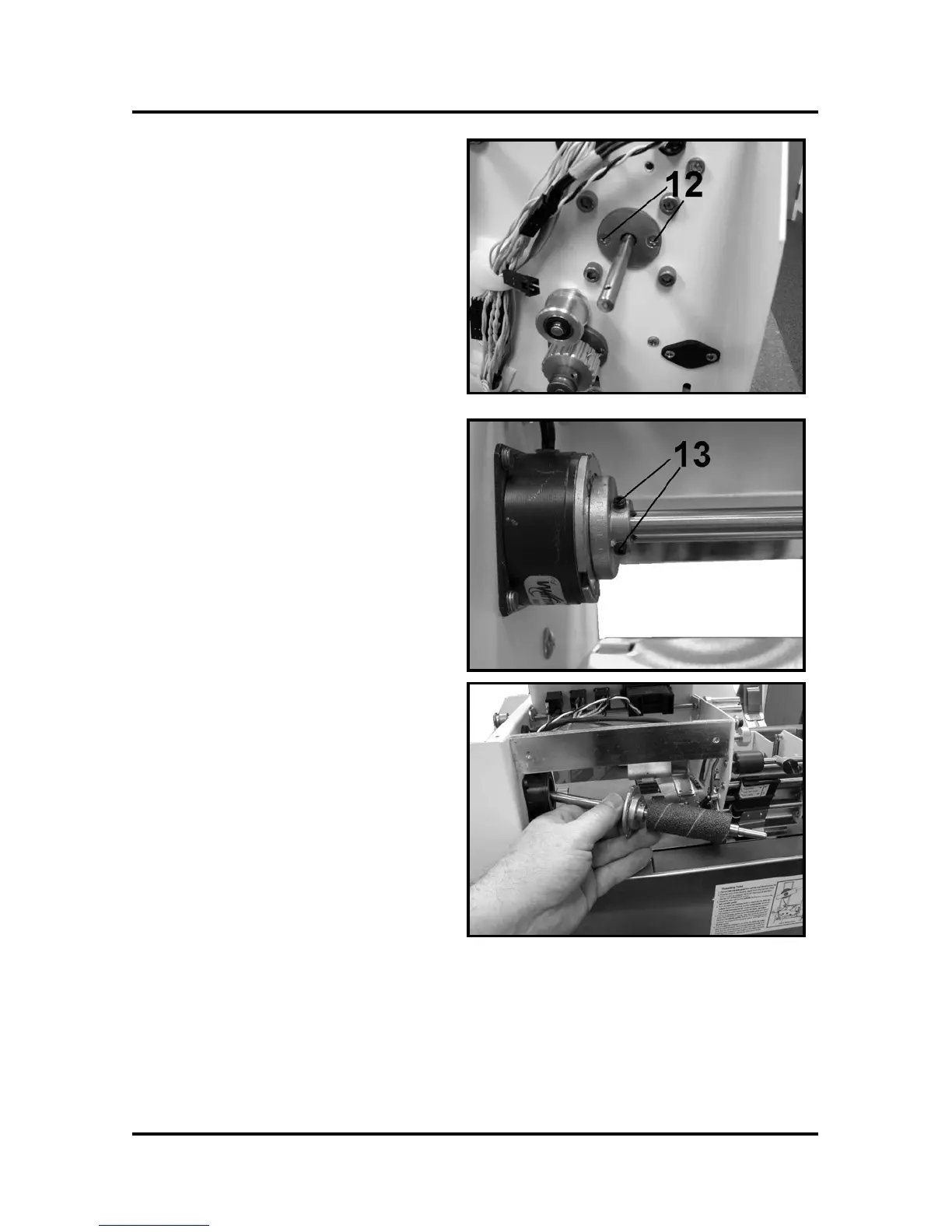

12. Remove the two screws [12] that
attach the bearing housing
assembly to the side frame and
remove the bearing housing.
13. Loosen the two allen screws [13]
that attach the brake plate to the
tab pull roller assembly. Slide the
brake plate toward the sandpaper
roller.
14. Push the tab pull roller assembly
[14] toward the rear of the
machine until it clears the
applicator head assembly then tilt
it toward the front of the machine
and remove it as shown.
