TPS-1 User’s Manual: Hardware Appendix. A Setting of operating modes
R19UH0081ED0107 Rev. 1.07 page 63 of 86
Jul 30, 2018

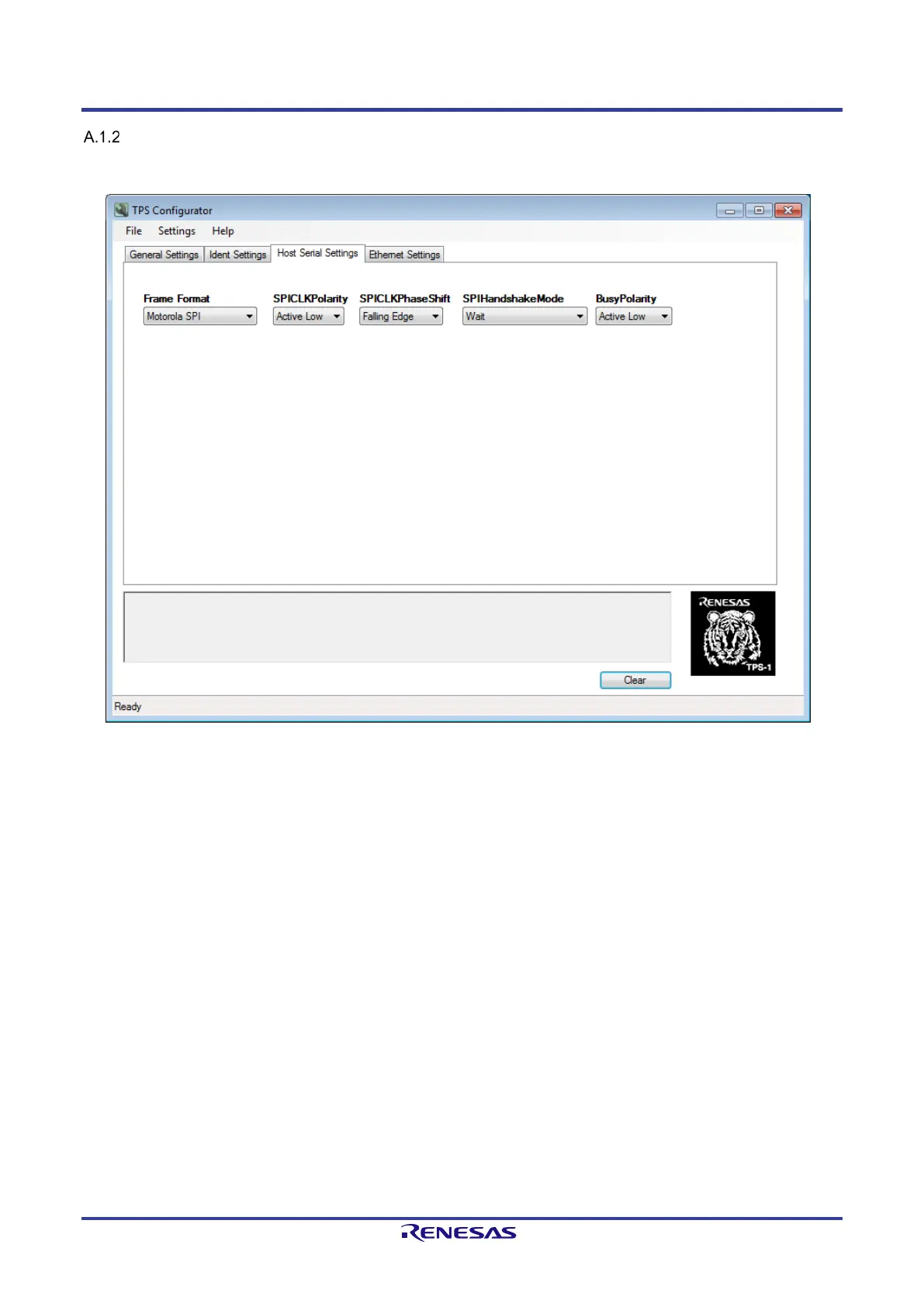

Figure A-3: Serial host interface configuration
Host Serial Interface
The serial host interface is an SPI-Slave interface. The necessary hardware settings are available on TAB ”Host Serial Settings”.
The watchdog function for the host CPU is configured below the headline ”General Settings“. You can choose watchdog time and activity level.
Below the TAB ”Host Serial Settings“ you find the settings for the SPI interface (MotorolaSPI, Microwire, etc.).
