Copying the configuration data into the Boot Flash
After the configuration data is complete, it has to be transferred to the PROFINET device. During the manufacturing process, the data can be copied
into the Flash device with a special program (FS_Prog.exe). The TPS Configurator can generate a command with all the parameters (see “Generate
Command”).
By clicking “Send Configuration”, the transfer of the configuration data to the PROPINET IO device is started.

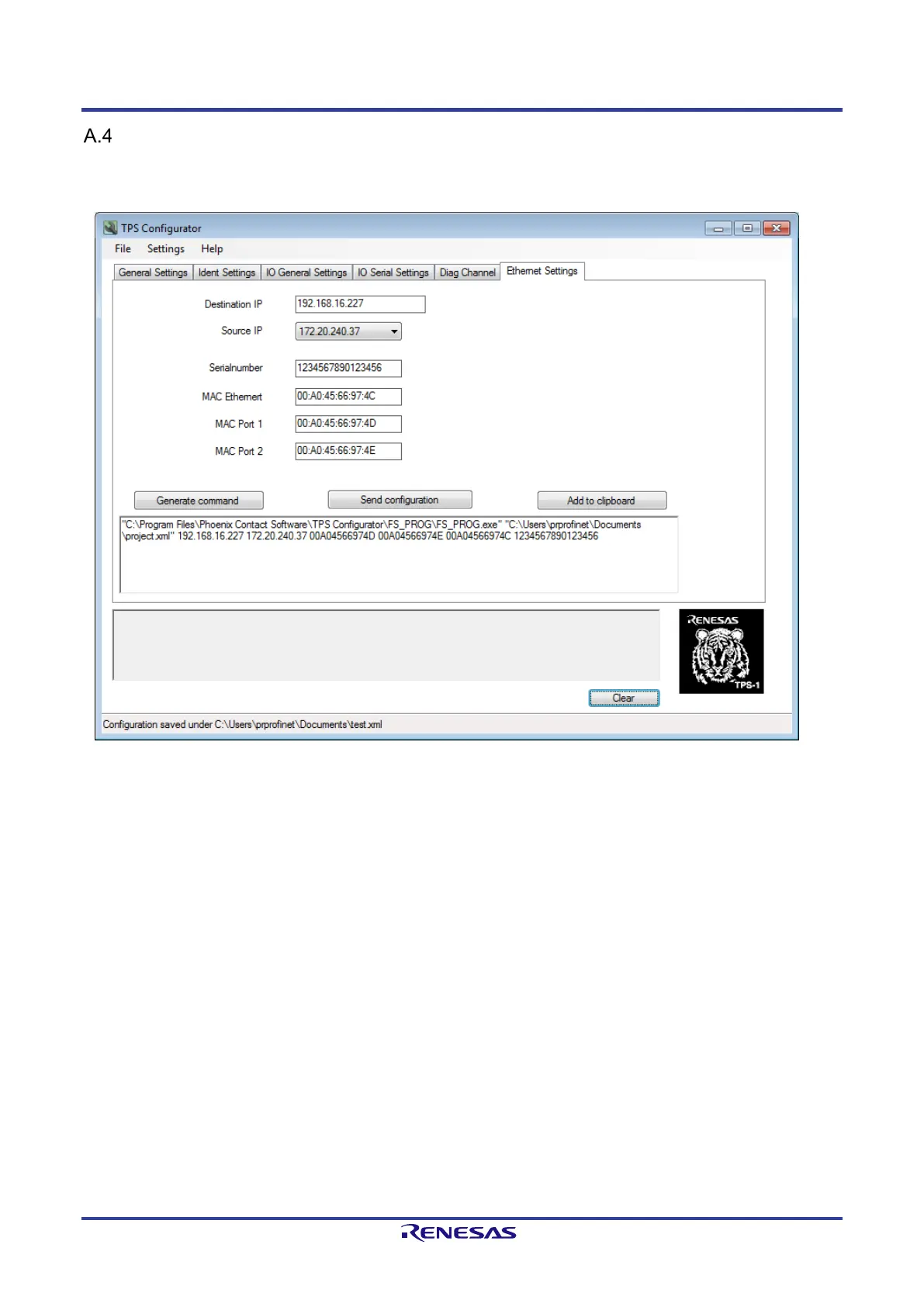

Figure A-12: Writing the TPS-1 configuration
