8
Introduction
The APC is designed to be mounted to a suitable
machine bulkhead, surface bulkhead or panel,
and requires through holes to x it in place. The
bulkhead or panel must be stiff and not transfer
excessive vibration to the APC during operation.
Preparing the machine for APC installation
Ø 9.25 (0.36) through × 3

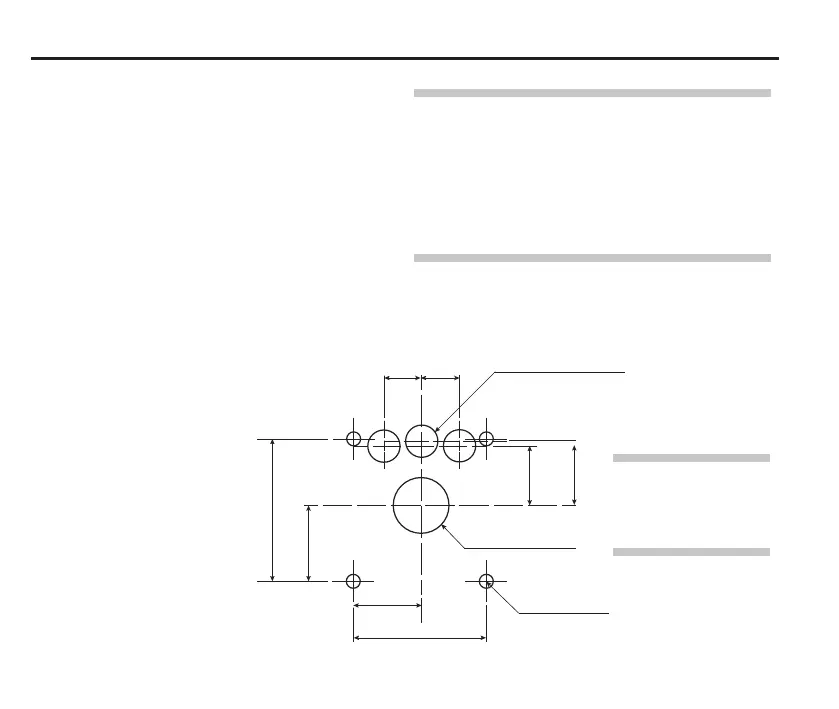

Machine cutout (orientation to suit installation)
Dimensions in mm (in)
10
(0.39)
37.5 (1.48)
18.75 (0.738)
16.5 (0.65)
Ø 16 (0.63) through
M4 holes × 4
10 (0.39) deep minimum
18.75
(0.738)
37.5 (1.48)
10
(0.39)
18 (0.71)
NOTE: If the 4 M4 screw
holes are through holes, it is
recommended that a sealant
is used on these holes.
CAUTION: The APC is designed to be mounted
horizontally or at any angle between horizontal
and vertical with the nose cone facing down. It
must NOT be mounted with the nose cone at any
angle above horizontal (see diagram on
page 9).
