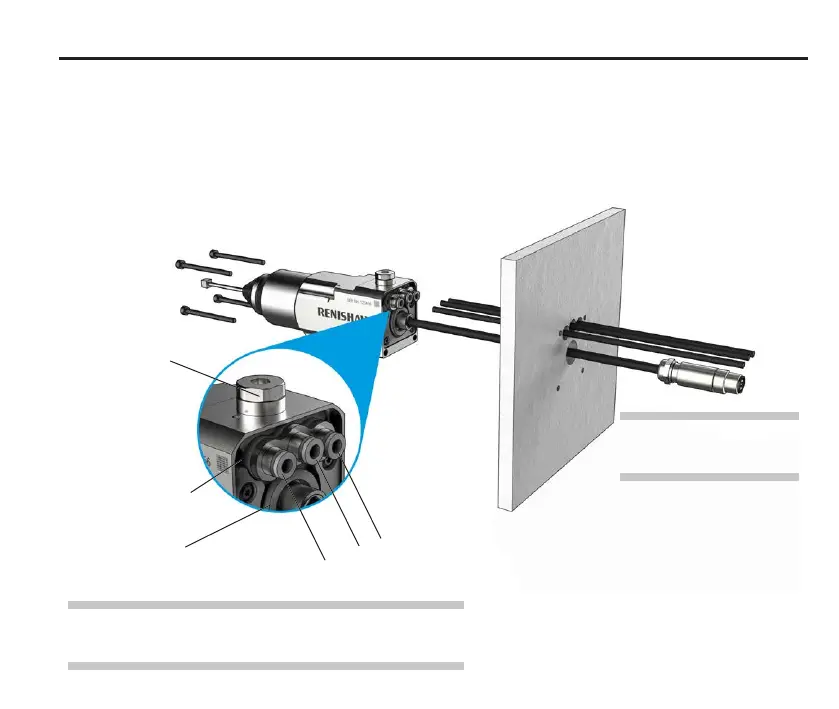

Installation
* M4 x 50 mm (1.97 in) screws × 4
2.60 Nm to 2.70 Nm
(1.92 lbf.ft to 1.99 lbf.ft)
M12 connector
Ø4 mm (0.16 in) air
pipes × 3
Seal
* NOTE: To torque up the M4 × 50 screws, an extended 3 mm hexagon
driver bit may be used (RS components 875-7026 is recommended).
Ø 4 mm (0.16 in) Port 1
– APCA retract and “air bleed”
APCS exhaust and/or “air bleed”
Ø 4 mm (0.16 in) Port 2 – Air blast stalk
Ø 4 mm (0.16 in) Port 3 – Extend
Spherical washer
Air blast outlet
(for customer implementation)
NOTE: The minimum bend radius
of the cable is 25 mm (0.98 in)
