11

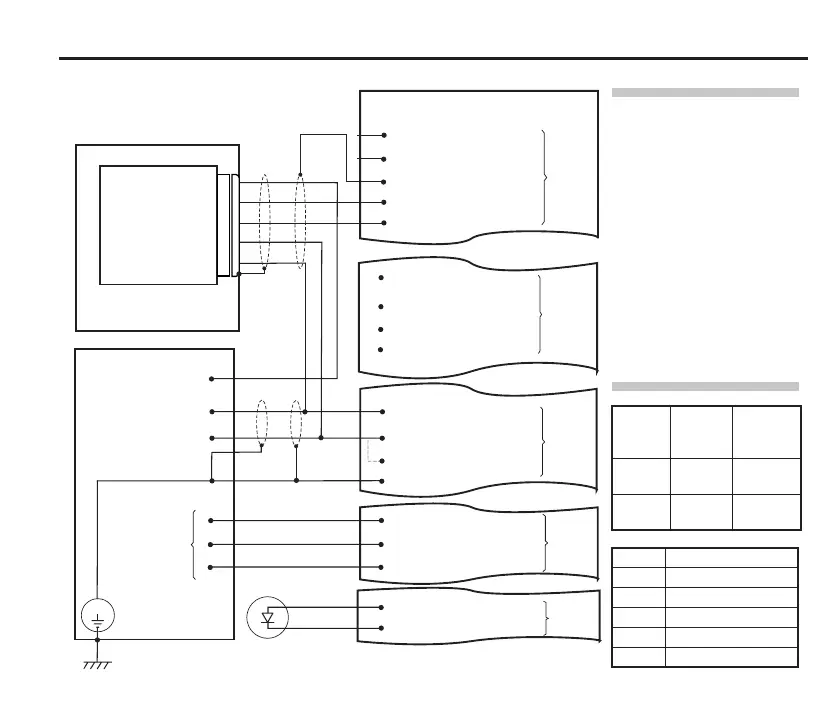

Connecting the APC to an HSI-C interface and the CNC
Standard probe connector (3-way)
17 Screen
16 Probe Input +
15 Probe Input –
CNC
Retract conrm input
Supply 12 V – 30 V
Supply 0 V
Screen
Controller
protective earth
Controller reference ground
HSI-C interface
Machine tool
Block 1
2
4
1
5
3
1 Supply 12 V – 30 V
2 Supply 0 V
3 Supply 0 V
4 Screen
22 Probe status NC
23 Probe status common
24 Probe status NO
26 External LED 0 V
25 External LED 10 V
Block 4
Block 5
Block 6
APC
Block 3
9 12 V – 30 V out
(fused 100 mA)
10 Inhibit input
11 Inhibit return
12 0 V
NOTES:
When the APC is not being used,
it is recommended that the inhibit
function is enabled. The retract
conrm output could be used to
set the inhibit function (for more
information see “Probe inhibit
function” on page 12).
When connecting the APC to the
HSI-C interface, use terminals 15
and 16.
Connect either pin 22 or pin 24,
but do not connect both wires.
Pin APC connections
2 Retract conrm sensor
4 Probe input +
1 Probe input –
5 Supply 0 V
3 Supply 12 V – 30 V
Probe
input
Status Normally
open
(NO)
Normally
closed
(NC)
Probe
triggered
Closed Open
Probe
seated
Open Closed
