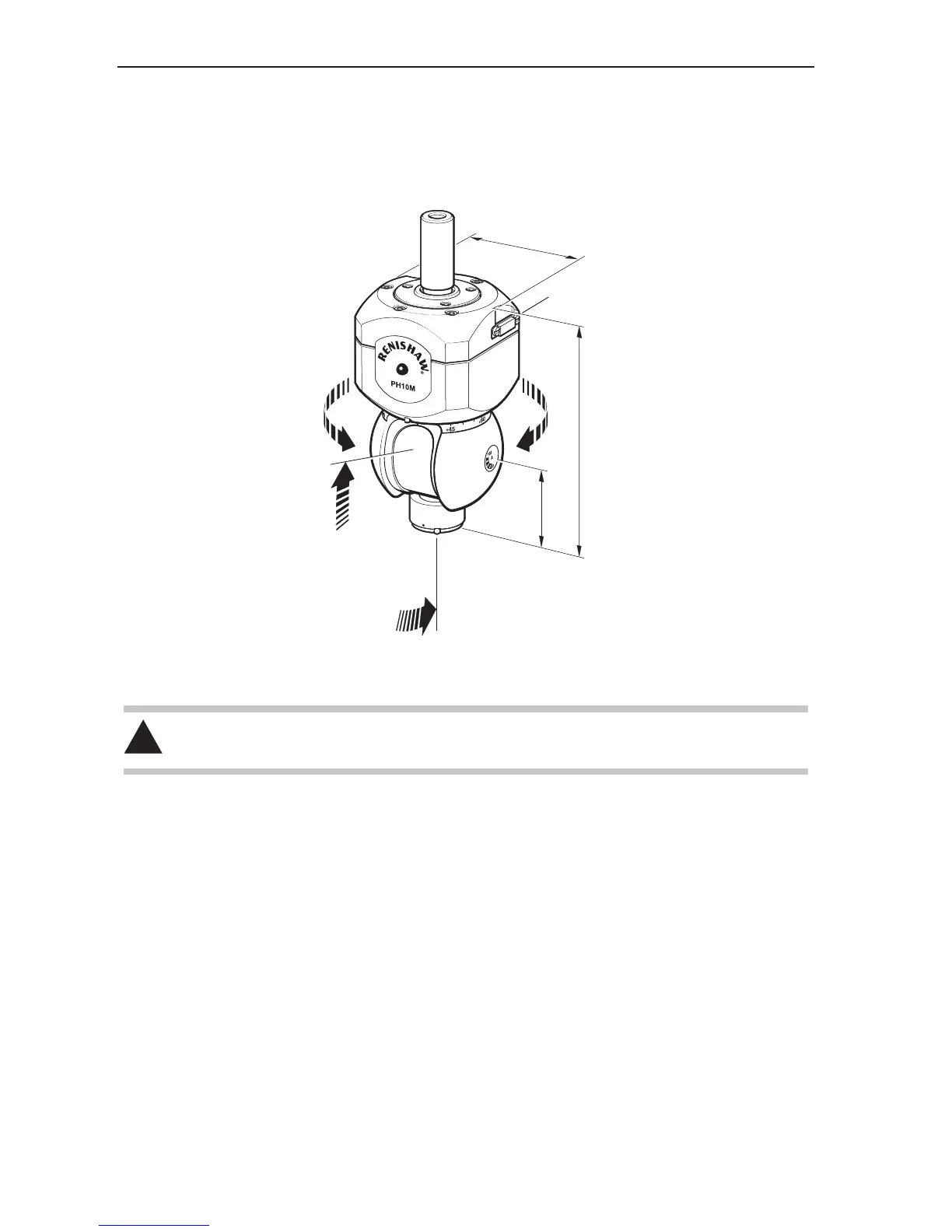

Figure 10 - Dimensions of PH10M
CAUTION: Always fit mounting shanks with the screws supplied (M3 x 5 mm long). The use of
incorrect screws may cause serious internal damage to the head.
The PH10M fits any standard shank. It may be used in conjunction with the Renishaw AM1 adjustment
module (see section 9.2).
Figure 10 shows the dimensions of the shank-mounted PH10M.
117 mm
(4.6 in)
A axis
B axis
62 mm
(2.44 in)
39 mm
(1.54 in)
(to rollers)
Multiwire connector
