11

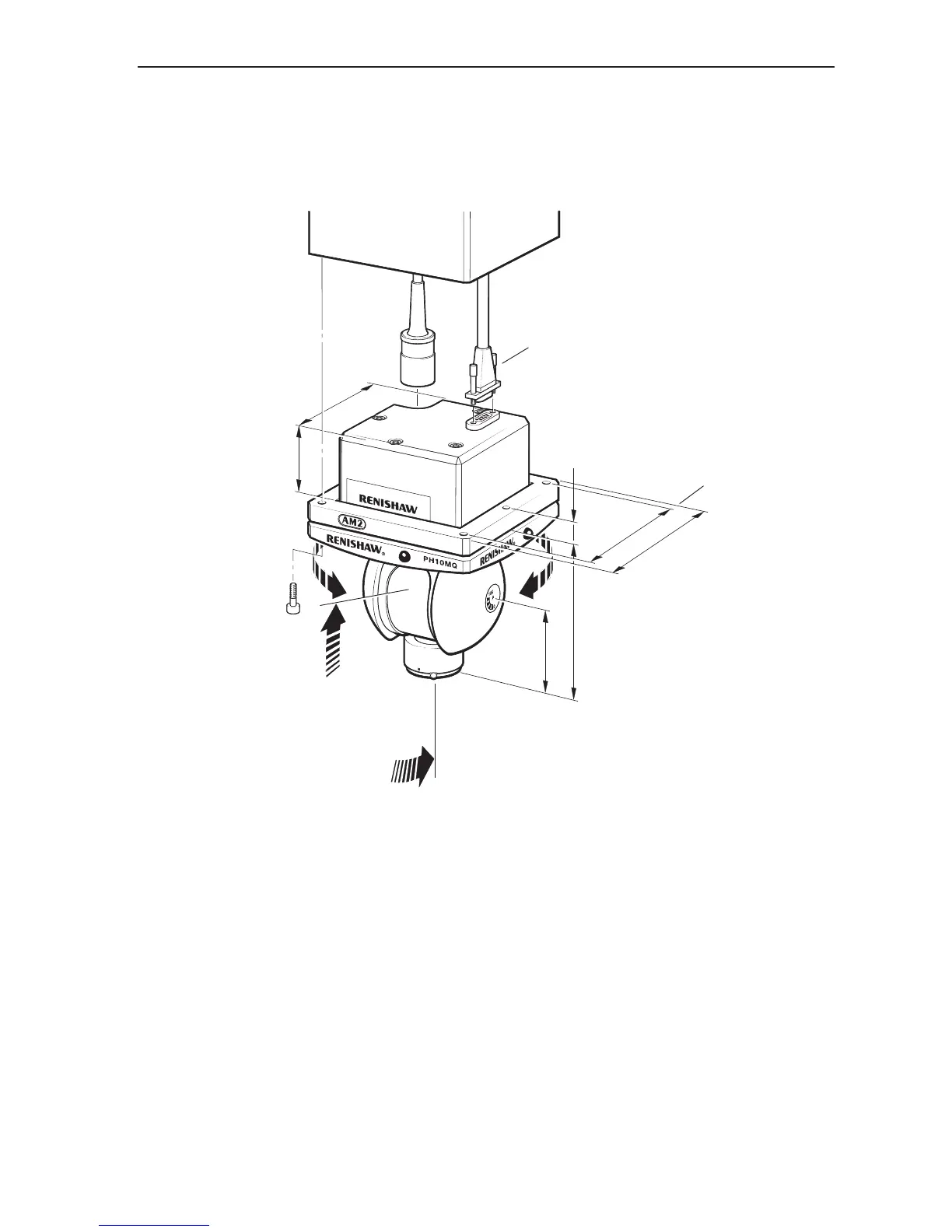

Figure 11 - Dimensions of PH10MQ
80 mm
(3.15 in)
square
A axis
105°
B axis
60 mm
(2.36 in)
39 mm
(1.54 in)
(to rollers)
Multiwire connector
73 mm
(2.87 in)
70.5 mm
(2.78 in)
square
10 mm
(0.39 in)
34 mm
(1.34 in)
Installation
Figure 11 shows the dimensions of the quill-mounted PH10MQ head.
