System interconnection diagrams

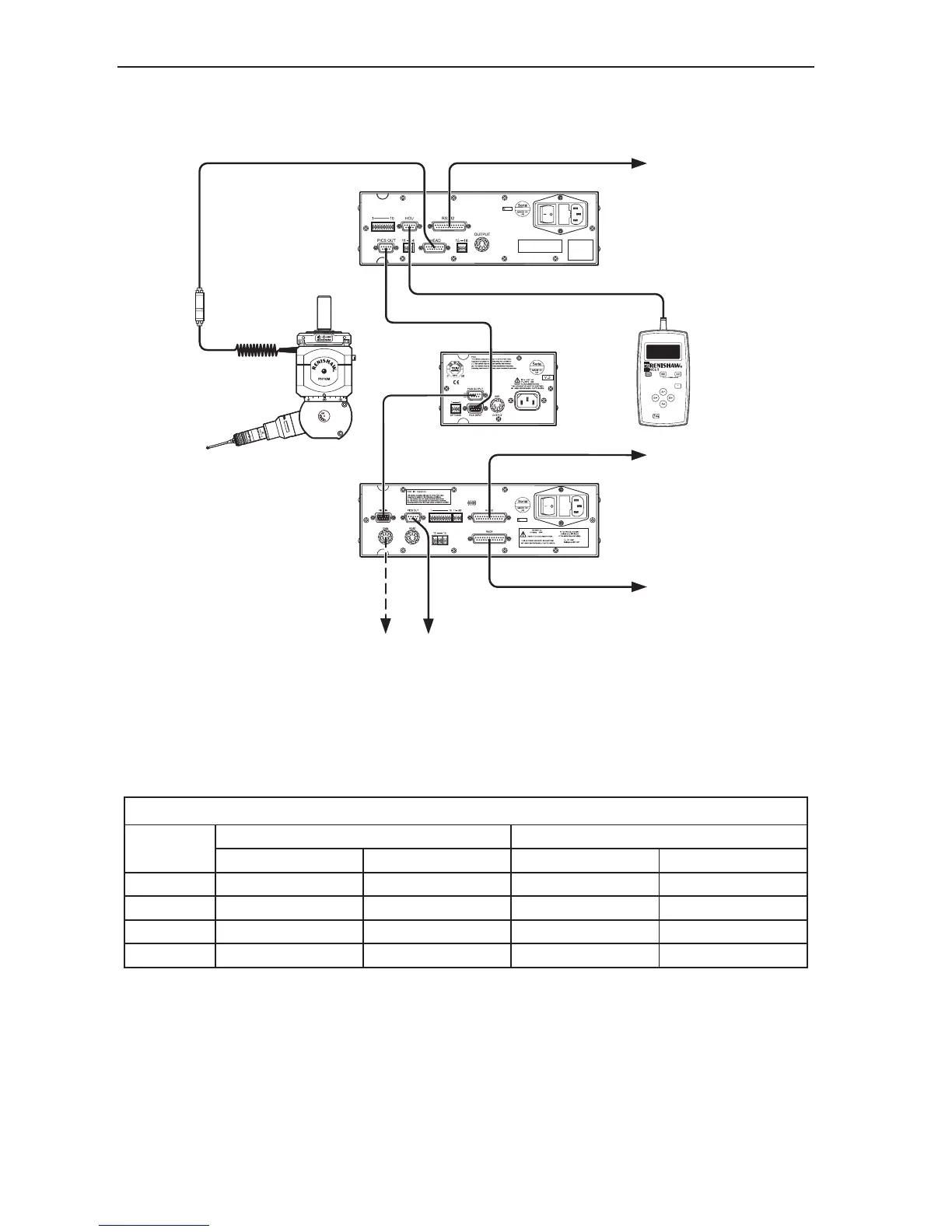

Figure 23 - PH10 system with standard two-wire touch trigger probe and autochange
Table 22 - Switch settings
PICS configuration SSR configuration
Up Down Up Down
PHC10-2 11, 15, 16, 17, 18 10, 13, 14 - 10, 13, 14, 15, 16
PI 4-2 1, 3, 4 - 1, 3,4 -
PI 200* - 10 - 10
ACC2-2 9 A, B - 9, A, B
* For TP200 systems, the use of the PICS signal probe DAMPing is recommended. Refer to
H-1000-5000 PIC’S installation guide for further information.
PH10M
PL5, 6, 12, 13
PLM6, 7, 8, 9
Communication connection
to CMM controller
PL25
HCU1
PHC10-2
PI 4-2
or
PI 200*
PICS
output
to CMM
controller
SSR
output
to CMM
controller
PL25
Communication connection
to CMM controller
to autochange
rack
ACC2-2
